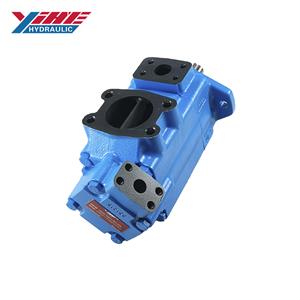

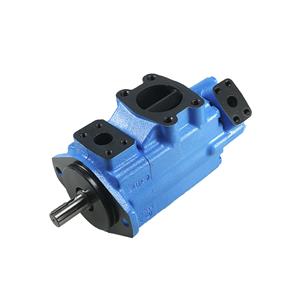

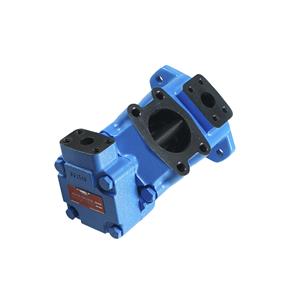

3520V-30A11-1CC-22R Double Vane Pump | 100% Vickers Replacement | YHDE
Brand: YIHE
Product origin: CHINA
Delivery time: 10-30days
Supply capacity: 300PCS/day
Premium 3520V-30A11-1CC-22R double hydraulic vane pump, 100% interchangeable with Vickers Eaton. High-flow 30+11 USgpm configuration. Factory-direct from YHDE with 9+ years of specialized manufacturing expertise. Fast global shipping. Get a quote!
3520V-30A11-1CC-22R Double Vane Pump | 100% Vickers Replacement | YHDE
Product Overview
The 3520V Series is a high-performance double fixed displacement vane pump engineered with advanced intra-vane technology. This specific model combines a high-flow 35V front section and a 20V rear section into a single, compact housing, allowing for independent multi-circuit control from a single drive shaft.
As a specialized manufacturer with over 9 years of expertise, YHDE produces the 3520V-30A11-1CC-22R to be 100% interchangeable with Vickers (Eaton) specifications. It is the ideal "drop-in" solution for heavy-duty industrial power units, large injection molding machines, and construction equipment.
Core Features & Benefits
Intra-Vane Design Excellence: Significantly reduces vane tip pressure against the cam ring, lowering internal wear and extending the service life compared to standard pumps.
Low Noise & Vibration: Specifically engineered for quiet performance in indoor industrial environments, meeting strict global noise regulations.
High Volumetric Efficiency: Precision-machined internal components minimize internal leakage and heat generation, optimizing overall system energy consumption.
Robust Double Flow: The 30 USgpm (front) and 11 USgpm (rear) combination provides high-capacity flow for complex hydraulic operations.
100% Interchangeability: Direct replacement for Vickers 3520V-30A11-1CC-22R. Matches all original SAE mounting dimensions and port configurations.
Technical Specifications
| Parameter | Specification (Front / Rear) |
| Model Code | 3520V-30A11-1CC-22R |
| Compatibility | 100% Vickers Eaton V Series |
| Front Displacement (35V) | 30 USgpm (at 1200 rpm, 100 psi) |
| Rear Displacement (20V) | 11 USgpm (at 1200 rpm, 100 psi) |
| Max. Pressure | 175 Bar (2500 PSI) |
| Shaft Type | Straight Keyed (1) |
| Rotation | Right Hand / Clockwise (R) |
Detailed Model Code Analysis
3520V: Series (Double Vane Pump - 35V + 20V).
30: Front pump displacement (30 USgpm).
A: Inlet port (Standard SAE 4-bolt flange).
11: Rear pump displacement (11 USgpm).
1: Shaft type (Straight keyed).
CC: Port orientation (Standard 180° opposite).
22: Design sequence.
R: Rotation (Right hand/Clockwise).
Why Source From YHDE Hydraulics?
9+ Years of Manufacturing Expertise: We specialize in compatible replacements for Vickers, Denison, Yuken, and Tokimec.
Factory Direct Pricing: Eliminate middlemen markups and get OEM-level quality directly from our specialized production line.
100% Load Testing: Every 3520V double pump undergoes rigorous flow and pressure efficiency testing on our professional testing stands before shipment.
Global Inventory Support: We maintain a deep stock of 35V and 20V cartridge kits and components to ensure rapid assembly and minimal lead times.
