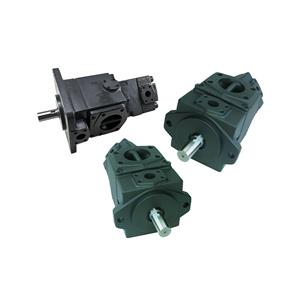

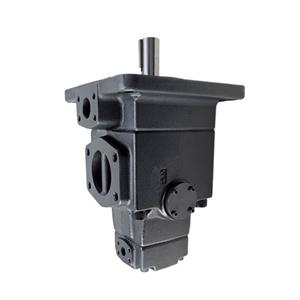

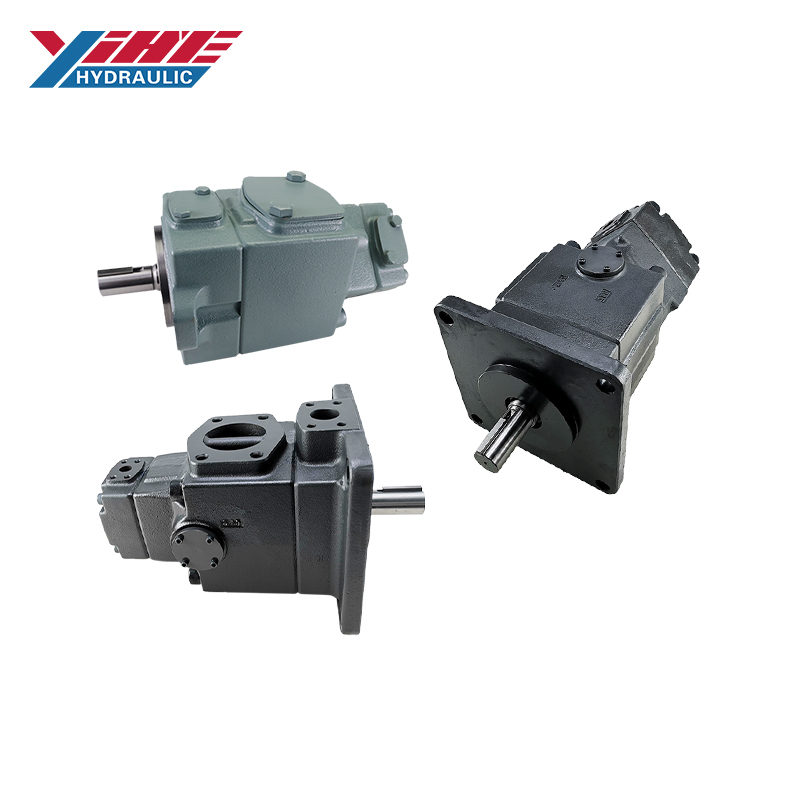

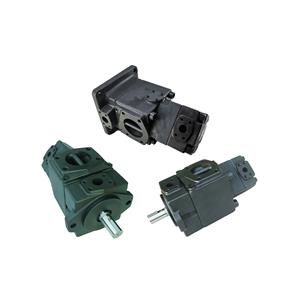

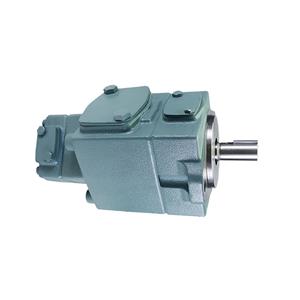

PV2R23 PV2R24 PV2R34 Double Vane Pump | Yuken Type Replacement | YHDE
Brand: Yihe
Product origin: China
Delivery time: 10-30 days
Supply capacity: 300pcs
High-performance PV2R23, PV2R24, PV2R34 double hydraulic vane pumps. 100% interchangeable with Yuken PV2R series. Low noise, high pressure (21MPa), and factory-direct from YHDE. 9+ years of expertise. Get a quote today!
Product Overview
The PV2R23, PV2R24, and PV2R34 series are high-performance double fixed displacement vane pumps specifically engineered for industrial applications requiring two independent hydraulic flows from a single drive shaft. These Yuken-type double pumps are renowned for their high volumetric efficiency and exceptionally low noise levels.
At YHDE Hydraulics, with over 9 years of manufacturing expertise, we produce these double pumps to be 100% interchangeable with the original Yuken PV2R series specifications. They provide a reliable and cost-effective "drop-in" replacement for injection molding machines, machine tools, and various hydraulic power units.
Core Features & Benefits
Dual-Flow Versatility: Combines two pumping sections (e.g., PV2R2 and PV2R3/4) in one housing, allowing for complex circuit control and space-saving designs.
Ultra-Low Noise Technology: Inherits the signature quiet operation of the Yuken design, making it ideal for indoor factory environments.
High Operating Pressure: Capable of handling continuous pressures up to 21 MPa (210 Bar), providing robust power for heavy-duty industrial cycles.
Outstanding Volumetric Efficiency: Precision-machined internal components minimize internal leakage, reducing heat generation and energy consumption.
Simplified Maintenance: Features replaceable cartridge kits for both sections, allowing for quick on-site repairs and reduced downtime.
Technical Specifications
| Parameter | PV2R23 | PV2R24 | PV2R34 |
| Front Section (Max ml/r) | 65 (PV2R2) | 65 (PV2R2) | 116 (PV2R3) |
| Rear Section (Max ml/r) | 116 (PV2R3) | 153 (PV2R4) | 153 (PV2R4) |
| Max. Pressure | 21 MPa | 21 MPa | 21 MPa |
| Max. Speed | 1800 RPM | 1800 RPM | 1800 RPM |
| Mounting | SAE 2-Bolt | SAE 2-Bolt | SAE 2-Bolt |
Direct Model Interchangeability
The YHDE PV2R series serves as a direct, high-quality replacement for:
Yuken: PV2R23, PV2R24, PV2R34 Series
Standard Configurations: Available in multiple displacement combinations, rotation directions (Clockwise/Counter-clockwise), and porting orientations.
Primary Applications
Plastic Injection Molding: Perfect for high/low-pressure combined circuits.
Machine Tools: Providing stable power for CNC lathes and milling machines.
Die-Casting Equipment: Ensuring rapid and precise cycle times.
Heavy-Duty Presses: Offering reliable dual-stage flow for approach and pressing strokes.
Why Source From YHDE Hydraulics?
9+ Years of Precision Manufacturing: Specialized expertise in high-pressure vane pumps and cartridge kits.
100% Load Performance Tested: Every double pump undergoes rigorous simultaneous testing of both sections before leaving our facility.
Strict Quality Standards: We use premium alloys and advanced CNC technology to guarantee OEM-level performance.
Global Fast Shipping: Deep inventory of PV2R series components ensures the fastest lead times for your maintenance or OEM needs.
