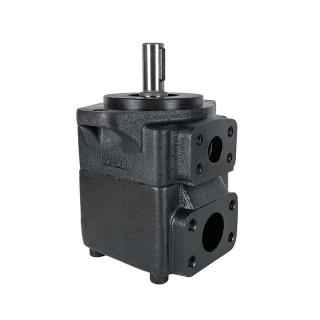

VQ25-43-F-RAAA-01 Hydraulic Vane Pump | 100% KCL & Vickers Compatible | YHDE
Brand: YiHe
Product origin: China
Delivery time: 10-30day
Supply capacity: 300Pcs/day
High-performance VQ25-43-F-RAAA-01 hydraulic oil vane pump, 100% interchangeable with KCL and Vickers. Features advanced intra-vane design for high speed and pressure. Factory-direct from YHDE with 9+ years of expertise. Fast global shipping. Get a quote!
Facing Production Stalls Due to a Broken KCL VQ25-43 Pump? Restore Pressure in 48 Hours!
When a heavy-duty high-pressure vane pump drops flow output or suffers internal bypass failure in your plastic injection molding machinery, die-casting setups, or heavy hydraulic presses, waiting 12 to 16 weeks for expensive original brand distributors paralyzes daily workshop revenue.
Our premium KCL / Vickers Compatible VQ25-43-F-RAAA-01 High-Pressure Hydraulic Vane Pump serves as a seamless, 100% mechanical "drop-in" physical replacement. Engineered in our ISO-compliant source manufacturing facility with 9+ years of micro-tolerance hydraulic tooling mastery, this pump restores native system flow speed and high-pressure limits—slashing your procurement and MRO budget by up to 70%.
100% Physical Form Match: Mounting flanges, drive shaft keys, port configurations, and bolt holes match KCL and Vickers specs identically with zero line adjustments.
Fast Factory Dispatch: Units are built, dynamic full-load bench tested to 210 bar, and shipped worldwide within 24-48 hours to eliminate costly downtime.
Technical Specifications & Operational Parameters
Cross-verify your equipment's operating pressure curves, required flow rates, and mounting envelopes using our master engineering data table below:
| Parameter Attribute | Engineering Specification Value | Application System Advantage |
|---|---|---|
| Geometric Displacement | 43 USgpm (Approx. 138 cm³/rev / ml/r) | Delivers continuous stable high-volume output per loop stroke. |
| Max Operating Pressure | 210 bar (21.0 MPa / 3000 PSI Peak Bounds) | Heavy-duty ductile iron casing eliminates body flexing under pressure surges. |
| Rated Rotation Speed Range | 600 - 1800 r/min (RPM Continuous) | Pairs perfectly with standard industrial electric AC/DC motors. |
| Average Operational Noise | Strictly Under 68 dB(A) | Intra-vane pressure balance dampens mechanical acoustics for quiet workshops. |
Model Ordering Nomenclature Decoded: VQ25-43-F-RAAA-01
| Code Segment | Technical Specifications Meaning | System Installation Alignment Reference |
|---|---|---|
| VQ25 | High-Pressure Intra-Vane Pump Series, Frame Size 25VQ | Establishes standardized physical envelope and mounting bolt circle. |
| 43 | Displacement Flow Index: 43 USgpm (at 1200 RPM, 6.9 bar) | Sets continuous flow speed calculations per revolution cycle. |
| F | Mounting Style: Flange Type Configuration | Standard SAE 2-bolt flange pattern for direct coupling. |
| R | Clockwise (CW) Rotation Path (Viewed from shaft end) | Must align with the driving motor rotation path to prevent seal blowout. |
| AAA-01 | Port Position Code & Design Sequence Number | Standard inlet/outlet inline orientation matching existing plumbing. |
Precision Tooling: Engineered for Long Volumetric Lifespans
High-pressure intra-vane pumps running on continuous industrial manufacturing floors endure massive fluid friction and hydraulic stresses. Low-tier generic replacement trading pumps use unground castings that flex under 210 bar loads, causing early tracking bounce, localized heat, and immediate efficiency decay. We eliminate these failure points directly on our factory floor:
Intra-Vane Pressure Balancing: Our VQ25 series utilizes intra-vane technology. Hydraulic oil pressure applies continuous balancing forces beneath the intra-vane pins, reducing direct mechanical friction against the stator profile and keeping operating sound strictly under 68 dB(A).
Sub-Micron CNC Profiling: Stator cam ring tracking contours and rotor side sealing plates are ground to sub-micron tolerances on specialized vertical CNC profile grinders, guaranteeing zero internal boundary leakage.
100% Full-Load Bench Test Validation: Every single VQ25 pump is dynamic tested on our hydraulic calibration stand up to its peak rated 210 bar limit. We ensure zero start-up pressure drop-offs out of the box.
Pro Maintenance Insight: Escape the Hostile "Sandpaper Effect"
When should you execute an urgent pump overhaul? If your system starts displaying localized oil reservoir overheating spikes, a noticeable slowdown in cylinder stroke execution, or produces a harsh metallic whining from the pump housing, internal vane tracking wear has initiated.
If your technical crew simply bolts a fresh new replacement pump onto the system without deep cleaning the circuit, these residual hard particles will act as an aggressive grit abrasive—creating a devastating "sandpaper effect". They will instantly score the freshly ground stator profile rings, destroying your new single pump within a few operating hours.
Mandatory Procedure: Meticulously drain and flush the reservoir oil tank, scrub clean all intake suction strainers, and install a brand-new 10-micron absolute premium return fluid filter concurrently with the new pump unit installation.
Frequently Asked Questions: VQ25 Series Replacement Pumps
1. Is this VQ25-43-F-RAAA-01 pump 100% drop-in interchangeable with original KCL and Vickers brands? +
2. What makes the VQ series intra-vane design superior under 210 bar high-pressure operating conditions? +
3. Can we purchase modular replacement cartridge kits for this VQ25 frame? +
Request Direct Factory Wholesale Pricing Now
Looking to bypass third-party trading agent markups and heavy brand taxes? Secure micro-tolerance, low-noise VQ series vane pumps shipped directly from our precision manufacturing line today.
Get An Instant Factory Price Quote
