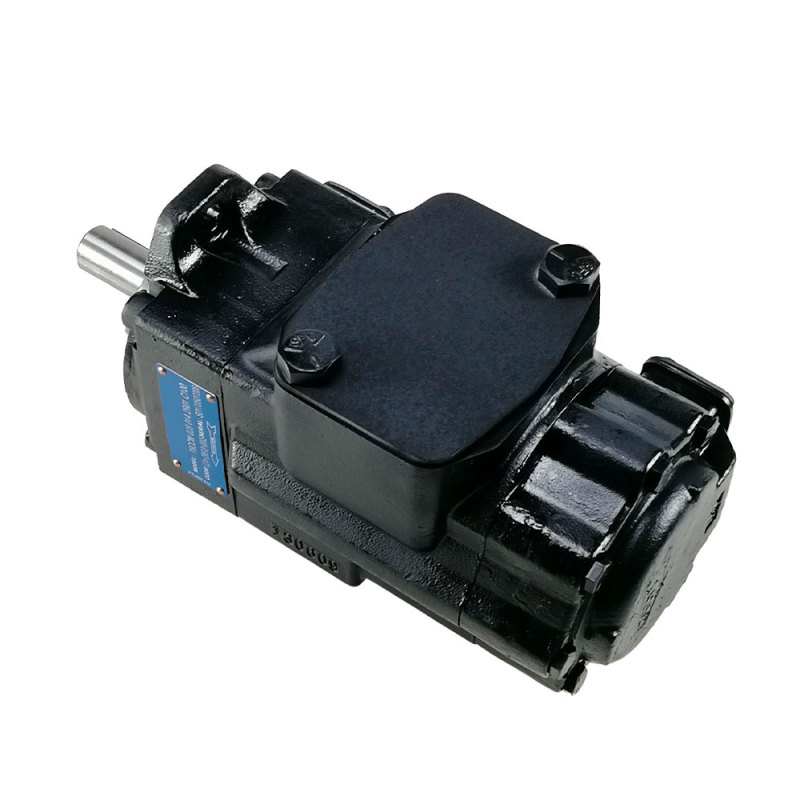

T6CC-028-031-1R00 Double Vane Pump Replacement | 100% Denison Compatible | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance T6CC-028-031-1R00 double hydraulic vane pump. 100% interchangeable with Denison Parker T6 series. Features 88.0 + 98.0 ml/rev displacement. Factory-direct pricing from YHDE with 9+ years of expertise. Get a technical quote today!
T6CC-028-031-1R00 Double Vane Pump Replacement | 100% Denison Compatible | YHDE
Product Overview
The T6CC series is a high-performance double fixed displacement vane pump designed for demanding industrial and mobile applications. The T6CC-028-031-1R00 model integrates two "C" size pump sections into a single housing, providing two independent flow sources from a single drive shaft. This configuration is widely used in plastic injection machinery, die-casting equipment, and large-scale hydraulic power units.
As a specialized manufacturer with over 9 years of industry expertise, YHDE produces the T6CC series to be 100% interchangeable with Denison (Parker) specifications. Our pumps are "drop-in" replacements, matching original mounting dimensions and performance curves perfectly.
Core Features & Benefits
Dual Flow Capability: Powers two separate hydraulic circuits from one input, saving space and reducing system complexity.
Balanced Pin-Type Design: Minimizes noise and vibration while maximizing pressure capability up to 240 bar.
100% Interchangeability: Seamlessly replaces Denison T6CC-028-031-1R00 without any modification to piping or mounting.
High Volumetric Efficiency: Precision-machined internal components ensure consistent flow and lower energy consumption.
Field-Replaceable Cartridges: The internal cartridge kits can be replaced easily on-site, significantly reducing maintenance downtime.
Technical Specifications
| Parameter | Specification (Front Section / Rear Section) |
| Model Code | T6CC-028-031-1R00 |
| Compatibility | 100% Denison Parker T6 Series |
| Front Displacement (028) | 88.0 ml/rev |
| Rear Displacement (031) | 98.0 ml/rev |
| Max. Pressure | 240 bar (3500 PSI) |
| Max. Speed | 2500 rpm |
| Mounting Standard | SAE B 2-Bolt Flange |
| Shaft Type (1) | Straight Keyed (SAE B) |
| Rotation (R) | Right Hand (Clockwise) |
Why Source From YHDE Hydraulics?
Factory Direct: We eliminate the middleman, providing high-quality replacement pumps at competitive factory pricing.
100% Performance Tested: Every T6CC unit undergoes a rigorous full-load pressure and flow test in our professional testing center before shipping.
Global Delivery: We maintain a deep stock of T6C cartridge kits and components to ensure rapid global shipping and minimal machine downtime.
