Product Overview: High-Flow Powerhouse for Industrial Efficiency

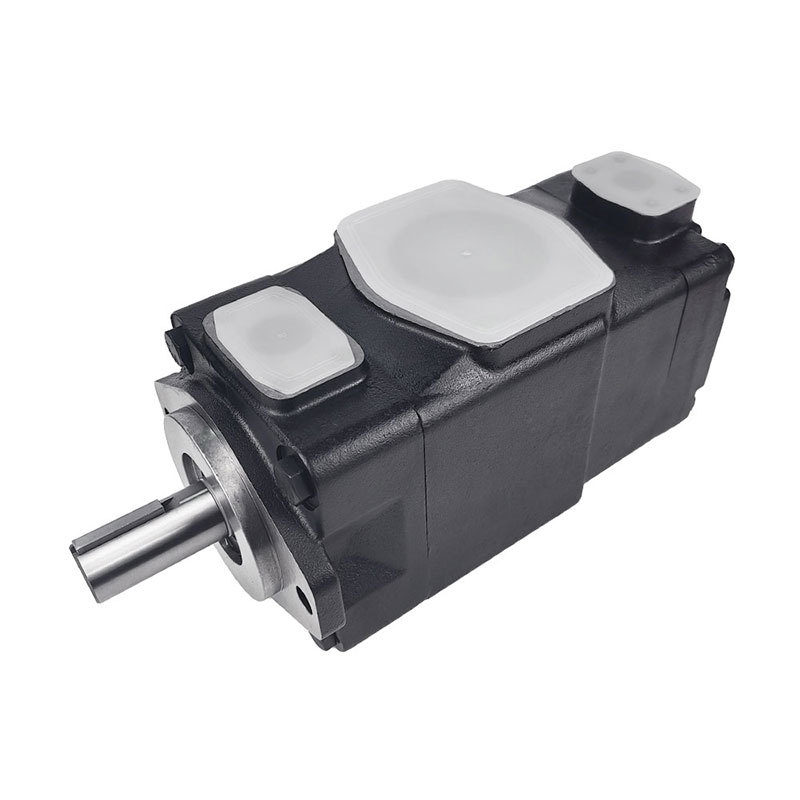

The Denison T6ED-072-014-1R02-C110 is a rugged double vane pump designed to handle complex hydraulic cycles requiring two independent flow sources from a single drive shaft. With a high-flow P1 stage (072) and a precision P2 stage (014), this pump is the heart of high-cycle machinery like plastic injection molders and heavy-duty industrial presses.
At YHDE, we leverage over 9 years of specialized manufacturing experience in our Foshan facility to provide 100% "drop-in" replacements for the original Parker Denison T6ED series. Every unit is built to withstand pressures up to 240 bar and speeds up to 2200 rpm, ensuring your 2026 production targets remain on track.
Why Choose YHDE's T6ED Replacement?
Precision Engineering: Matches every mounting dimension and performance curve of the original Denison unit—no piping modifications needed.
Dual-Flow Capability: Allows for independent circuit control, optimizing energy consumption during machine cycles.
Bimetal Technology: Our cam rings and vanes utilize high-grade bimetal materials to ensure long service life even under high-pressure conditions.
100% Load Tested: Unlike standard aftermarket suppliers, every YHDE T6ED pump undergoes a full-load performance test to verify volumetric efficiency and seal integrity.
Foshan Factory Direct: Eliminate middlemen and gain direct access to technical support and rapid shipping.
Technical Parameters
| Parameter | Specification (P1 / P2) |
| Model Code | T6ED-072-014-1R02-C110 |
| Compatibility | 100% Parker Denison T6ED Series |
| P1 Flow Rate (072) | 222.0 ml/r (approx. 72 GPM at 1200 rpm) |
| P2 Flow Rate (014) | 46.0 ml/r (approx. 14 GPM at 1200 rpm) |
| Max. Continuous Pressure | 240 bar (3500 PSI) |
| Max. Speed | 2200 rpm |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type (1) | Straight Keyed Shaft |
| Rotation (R) | Right Hand (Clockwise) |
| Seal Modification | 110 (Standard Buna N) |
Expert "Life-Saving" Detail: Double Pump Suction
As a skeptical expert focused on precision, I must remind you of a critical installation detail for T6ED series:
Risk Reminder: Because the T6ED-072 has a massive suction requirement for the P1 stage, any air leak in the common suction port or an undersized inlet pipe will cause instantaneous cavitation. Check your inlet vacuum! If it exceeds 0.17 bar (5 in. Hg), you risk destroying the cartridge kit within the first hour of operation. Protecting your T6ED starts with a verified, unrestricted suction line.
