3520V-35A14-1CC22R Double Vane Pump | 100% Vickers Compatible | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
Premium 3520V-35A14-1CC22R double hydraulic vane pump (35GPM + 14GPM). 100% interchangeable with Vickers Eaton. Factory-direct quality from YHDE with 9+ years of manufacturing expertise. Durable, low-noise, and fast global shipping. Get a quote!
3520V-35A14-1CC22R Double Vane Pump | 100% Vickers Compatible | YHDE
Product Overview

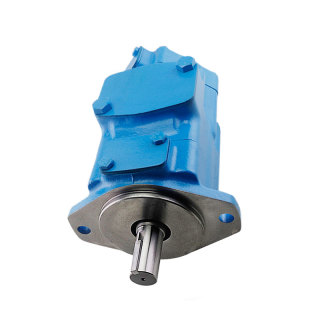

The 3520V Series is a high-performance double fixed displacement vane pump engineered for demanding industrial and mobile environments. By combining a 35-frame front section with a 20-frame rear section, the 3520V-35A14-1CC22R delivers two independent flow sources from a single drive shaft, providing exceptional power density.
As a specialized manufacturer with over 9 years of expertise, YHDE produces the 3520V series to be 100% interchangeable with Vickers (Eaton) specifications. Our pumps are ideal "drop-in" solutions for plastic injection machines, die-casting equipment, and large-scale industrial power units.
Core Features & Benefits
Intra-Vane Design Technology: Utilizes a "vane-in-vane" principle to reduce vane tip pressure against the cam ring, significantly extending the pump's service life.
High Pressure & Speed: Engineered to perform reliably in high-pressure circuits, ensuring stable hydraulic power even under heavy-duty cycles.
Low Noise & Vibration: The precision-balanced design minimizes pressure ripples and noise, making it suitable for strict indoor factory environments.
100% Interchangeability: Direct replacement for Vickers 3520V-35A14-1CC22R. Matches all original SAE mounting dimensions and port configurations.
Modular Cartridge Design: The internal cartridge kits (35V and 20V) can be replaced quickly on-site, drastically reducing maintenance downtime.
Technical Specifications
| Parameter | Specification (Front 35V / Rear 20V) |
| Model Code | 3520V-35A14-1CC22R |
| Compatibility | 100% Vickers Eaton 3520V Series |
| Front Displacement (35) | 35 USgpm (at 1200 rpm) |
| Rear Displacement (14) | 14 USgpm (at 1200 rpm) |
| Max. Pressure | 175 bar (2500 PSI) |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type | Straight Keyed (C) |
| Rotation | Right Hand / Clockwise (R) |
Detailed Model Code Analysis
3520V: Double Vane Pump (35 + 20 Series).
35: Front pump flow (35 USgpm).
A: Inlet port (SAE 4-bolt flange).
14: Rear pump flow (14 USgpm).
1: Front outlet position (Opposite inlet).
C: Rear outlet position (90 degrees CCW from inlet).
C: Shaft type (Straight keyed).
22: Design sequence.
R: Rotation (Right hand/Clockwise).
Why Source From YHDE Hydraulics?
Direct Factory Source: We offer factory-direct pricing with 9+ years of specialized manufacturing in compatible hydraulic pumps.
100% Performance Tested: Every 3520V unit undergoes a rigorous full-load pressure and flow test on our professional stands before shipment.
Global Fast Delivery: We maintain a deep stock of 35V and 20V cartridge kits for immediate worldwide shipping to minimize your machine downtime.
