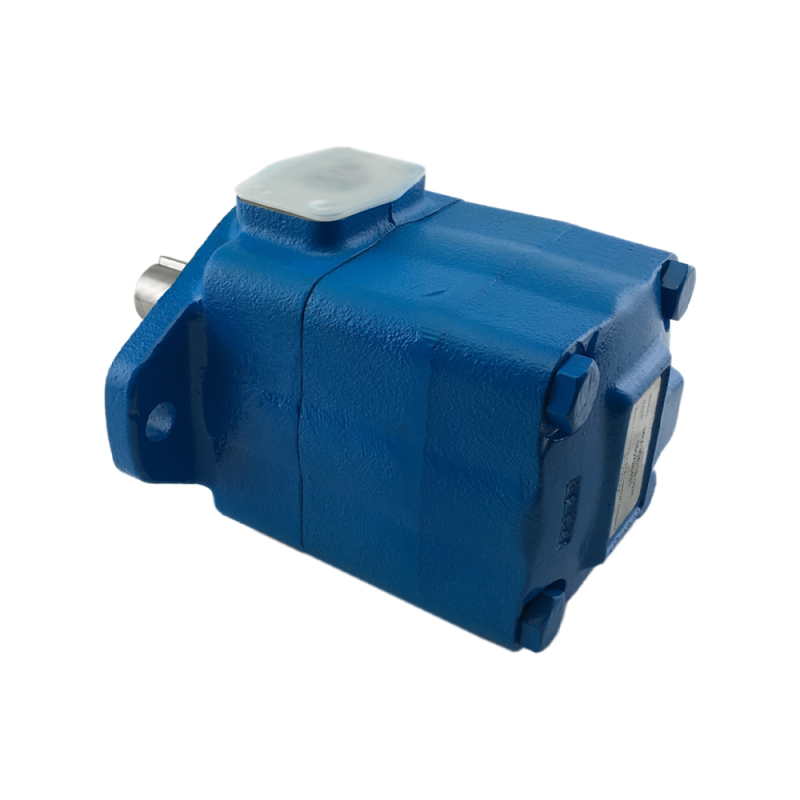

35V-21A-86C-22R Single Vane Pump | 100% Vickers Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
Industrial-grade 35V-21A-86C-22R single hydraulic vane pump (21 USgpm). 100% interchangeable with Vickers Eaton. Factory-direct from YHDE with 9+ years of manufacturing expertise. Features a heavy-duty shaft and an ultra-low noise design. Get a quote today!
35V-21A-86C-22R Single Vane Pump | 100% Vickers Replacement | YHDE
Product Overview
The 35V Series is a world-class fixed displacement intra-vane pump designed for high-pressure industrial applications. The 35V-21A-86C-22R model is specifically built to handle large hydraulic volumes with a focus on noise reduction and extended component life.
As a specialized manufacturer with over 9 years of expertise, YHDE produces the 35V series to be 100% interchangeable with Vickers (Eaton) specifications. This pump is the ideal choice for heavy-duty manufacturing equipment, large hydraulic presses, and recycling machinery.
Core Features & Benefits
Intra-Vane Technology: Utilizes the "vane-in-vane" design to minimize vane-to-cam ring wear, allowing for higher operating pressures and significantly longer service life.
Heavy-Duty Construction: Equipped with the "86" series heavy-duty straight keyed shaft to handle high-torque industrial loads without failure.
Quiet Industrial Performance: Engineered for indoor factory use, providing a stable, low-vibration hydraulic power source that meets modern environmental noise standards.
100% Drop-In Compatibility: Direct replacement for Vickers 35V-21A-86C-22R. Matches all original SAE mounting dimensions, port configurations, and performance curves.
Quick-Change Cartridge: The internal 35V cartridge kit can be replaced without removing the pump from the machine, ensuring minimal downtime during maintenance.
Technical Specifications
| Parameter | Specification |
| Model Code | 35V-21A-86C-22R |
| Compatibility | 100% Vickers Eaton V Series |
| Displacement (21) | 21 USgpm (at 1200 rpm, 0 psi) |
| Max. Pressure | 175 bar (2500 PSI) |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type (86) | Heavy Duty Straight Keyed |
| Outlet Position (C) | 90 degrees CCW from inlet |
| Rotation (R) | Right Hand / Clockwise |
Why Source From YHDE Hydraulics?
9+ Years of Manufacturing Expertise: We specialize in high-quality compatible replacements for Vickers, Denison, Yuken, and Tokimec.
Factory Direct Pricing: Eliminate middlemen and procure high-performance hydraulic pumps directly from the source.
100% Performance Tested: Every 35V-21A unit undergoes a rigorous full-load pressure and flow test on our professional testing stands before shipment.
Reliable Support: We maintain a comprehensive stock of 35V cartridge kits and components for immediate worldwide delivery.
