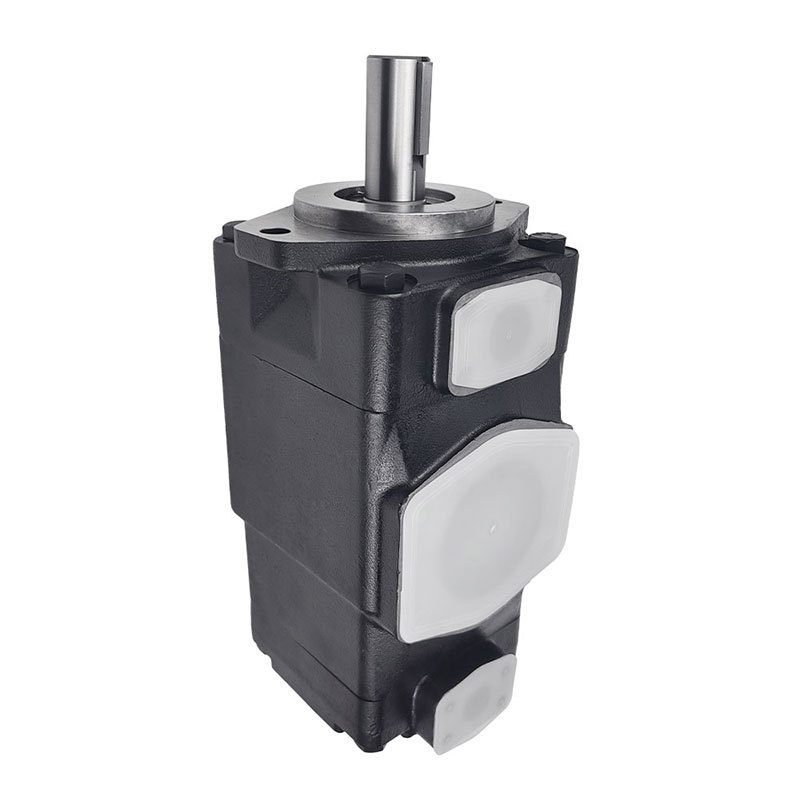

T6ED-050-014-1R02-C110 Double Vane Pump | Denison Parker Compatible | YHDE
Brand: YiHe
Product origin: China
Delivery time: 10-30days
Supply capacity: 7pcs/5day
High-flow T6ED-050-014-1R02-C110 double vane pump. 100% interchangeable with Denison Parker. Engineered for high-pressure industrial cycles. Factory-direct from YHDE Foshan with 9+ years of manufacturing expertise. 100% performance tested to guarantee reliability.
T6ED-050-014-1R02-C110 Double Vane Pump | Denison Parker Compatible | YHDE
Product Overview: Heavy-Duty Power for Complex Hydraulic Circuits
The Denison T6ED series represents the peak of high-flow double pump performance. The T6ED-050-014-1R02-C110 configuration combines the massive volume of the T6E section with the precision control of the T6D section, making it the definitive choice for large-scale presses, plastic machinery, and mobile equipment.
At YHDE, as a specialized manufacturer with over 9 years of experience, we produce 100% "drop-in" replacements that match the original Parker Denison performance curves. Every T6ED unit is built in our Foshan facility and undergoes a rigorous technical review to meet the demanding reliability standards of our 2026 goals.
Why Choose YHDE's T6ED Replacement?
100% Interchangeable: Every dimension—from the SAE 4-bolt flange to the keyed shaft—matches the original Denison T6ED specifications perfectly.
Superior Pressure Stability: Designed to handle continuous high pressure across both pump stages without volumetric drop-off.
Advanced Cartridge Design: Each section uses independent cartridge kits, allowing for rapid maintenance and reduced downtime.
9-Year Factory Pedigree: Sourcing from YHDE means you are getting factory-direct quality, eliminating middleman risks and gaining direct technical support.
100% Performance Verified: We don't just ship boxes; every pump is tested under full load in our facility to ensure zero-leakage performance.
Technical Parameters
| Parameter | Specification |
| Model Code | T6ED-050-014-1R02-C110 |
| Compatibility | 100% Parker Denison T6ED Series |
| P1 Displacement (050) | 158.4 ml/r |
| P2 Displacement (014) | 47.6 ml/r |
| Max. Pressure (Continuous) | 240 bar (3500 PSI) |
| Max. Speed | 2200 rpm |
| Mounting Standard | SAE C 4-Bolt Flange |
| Shaft Type (1) | Straight Keyed Shaft |
| Rotation (R) | Right Hand (Clockwise) |
| Porting Position (02) | 90 Degrees from Inlet |
| Seal Class (C) | Buna N (Standard) |
Expert "Life-Saving" Detail: The Large Pump Suction Rule
As a skeptical expert focused on precision [cite: 2026-02-26], I must highlight a critical for the T6ED-050:
Risk Reminder: Due to the massive P1 flow rate (158.4 ml/r), the T6ED is extremely sensitive to inlet restriction. Always ensure your suction line is at least 3 inches (76mm) and check for air leaks at the flange. Inadequate suction will lead to instant cavitation, which can destroy the P1 cartridge kit within minutes. Protecting your investment starts with a verified inlet circuit.
