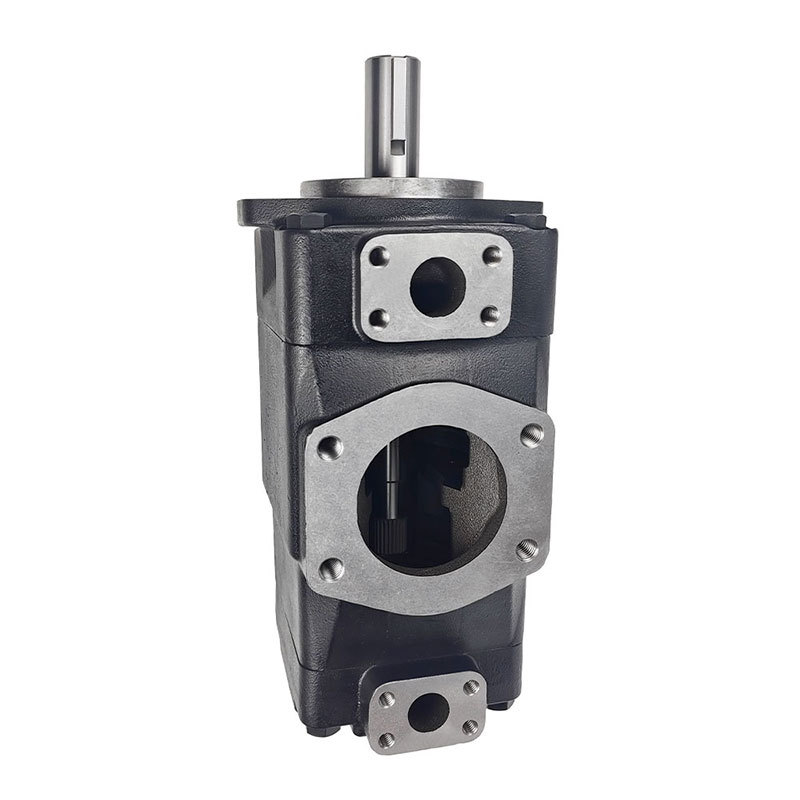

Denison T6ED-066-014-1R02-C110 Double Vane Pump | Parker Compatible | YHDE
Brand: YiHe
Product origin: China
Delivery time: 10-30days
Supply capacity: 7pcs/5day
High-performance T6ED-066-014-1R02-C110 double vane pump. 100% interchangeable with Parker Denison T6ED series. Features high volumetric efficiency and low noise for heavy-duty industrial systems. Factory-direct from YHDE Foshan with 9+ years of expertise. 100% load tested. Request a quote!
Denison T6ED-066-014-1R02-C110 Double Vane Pump | Parker Compatible | YHDE
Product Overview: Heavy-Duty Double Circuit Solution
The Denison T6ED-066-014-1R02-C110 is a premier double vane pump designed for applications requiring high-flow and high-pressure stability. Combining the robust Frame E and the versatile Frame D, this pump provides two independent flow sources from a single drive shaft, making it ideal for large-scale injection molding, die casting, and heavy industrial machinery.
At YHDE, we leverage over 9 years of specialized manufacturing experience in our Foshan facility to produce 100% "drop-in" replacements for the Parker Denison T6ED series. Our units match every mounting dimension and performance curve, ensuring you can optimize your hydraulic system without expensive re-piping or modifications.
Why Choose YHDE's T6ED Replacement?
100% Interchangeable: Matches original Parker Denison dimensions and flow rates exactly.
High-Pressure Capability: Engineered to handle up to 240 bar, providing reliable power for demanding cycles.
Reduced Energy Consumption: High volumetric efficiency (typically >94%) means less heat generation and lower energy costs.
Ultra-Durable Cartridge Design: Each section uses a modular cartridge kit for fast, cost-effective maintenance.
Foshan Factory Direct: Sourcing from YHDE eliminates middleman markups and grants you direct access to technical support for your 2026 sales goals.
Technical Parameters
| Parameter | Specification (P1 - Frame E / P2 - Frame D) |
| Model Code | T6ED-066-014-1R02-C110 |
| Compatibility | 100% Parker Denison T6ED Series |
| P1 Displacement (066) | 213.5 ml/r |
| P2 Displacement (014) | 47.6 ml/r |
| Max. Pressure (Continuous) | 240 bar (3500 PSI) |
| Max. Speed | 2200 rpm |
| Mounting Standard | SAE C 4-Bolt Flange |
| Shaft Type (1) | SAE CC Keyed Shaft |
| Rotation (R) | Right Hand (Clockwise) |
| Seal Class (C) | Buna N (Standard Industrial) |
Expert "Life-Saving" Detail: Cold Start Protection
As a skeptical expert focused on precision, I must remind you of a critical:
Risk Reminder: Because the T6ED-066 uses a very large Frame E cartridge, it is highly sensitive to oil viscosity during cold starts. Never apply full pressure immediately upon startup in cold environments. Allow the pump to idle at low pressure for at least 10 minutes to reach operating temperature. This prevents vane tip "chatter" and internal scarring, ensuring the longevity of your high-value investment.
