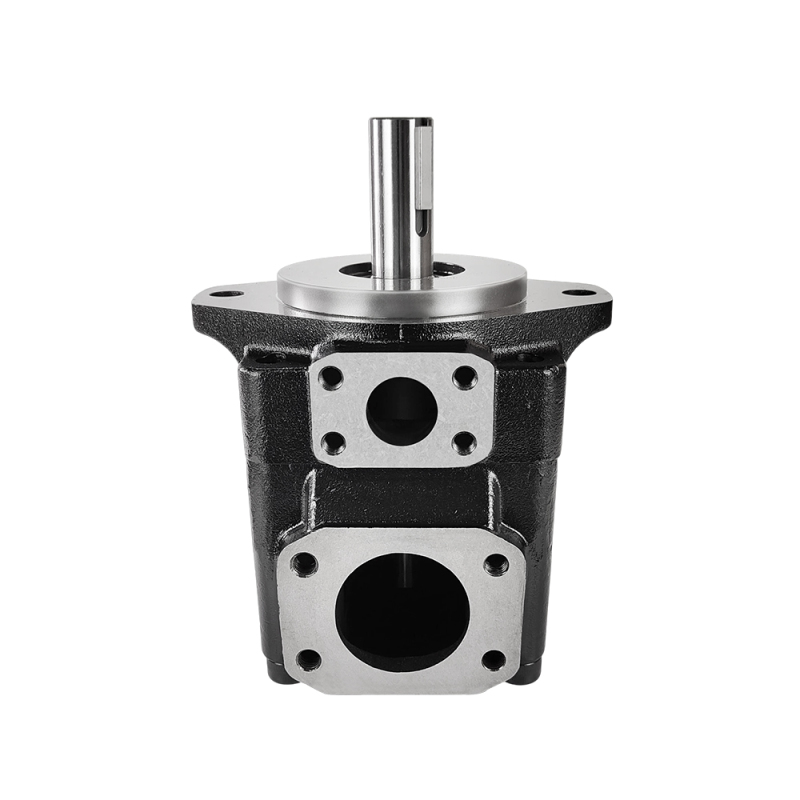

T7DS-E14-1R00-A1M0 Double Vane Pump | Denison Parker Compatible | Servo System Optimized | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-pressure T7DS-E14-1R00-A1M0 double vane pump. 100% interchangeable with Parker Denison T7DS series. Ideal for servo-driven hydraulic systems. Factory-direct from YHDE Foshan with 9+ years of manufacturing expertise. 100% full-load tested for maximum reliability. Request a quote!
T7DS-E14-1R00-A1M0 Double Vane Pump | Denison Parker Compatible | Servo System Optimized | YHDE
Product Overview: Precision Power for Servo-Driven Systems
The T7DS-E14-1R00-A1M0 is a premier double vane pump designed for high-efficiency hydraulic circuits. As a "drop-in" replacement for the original Denison T7DS series, this pump excels in applications requiring high pressure (up to 300 bar) and low noise levels. Its unique design makes it the perfect heart for modern servo-driven injection molding machines and industrial presses.
At YHDE, we combine over 9 years of factory experience in Foshan with rigorous quality control to ensure every T7DS unit meets or exceeds OEM performance. By choosing our T7DS-E14, you are opting for a heavy-duty solution that balances high volumetric efficiency with long-term durability.
Key Technical Advantages
Optimized for Servo Drives: Low torque ripple and stable flow output make it ideal for variable-speed servo systems, helping you achieve up to 50% energy savings.
Double-Stage Efficiency: The D+S frame configuration allows for independent circuit control or combined high-flow output, providing maximum versatility.
100% Interchangeable: Matches Parker Denison T7DS mounting, shaft, and port dimensions exactly—zero modifications required to your machinery.
YHDE Verified Reliability: Every unit undergoes a 100% full-load performance test at our Foshan facility. We don't just ship boxes; we ship verified performance.
Whisper-Quiet Operation: The T7 series internal design significantly reduces noise levels, creating a better working environment for your factory.
Technical Parameters
| Parameter | Specification |
| Model Code | T7DS-E14-1R00-A1M0 |
| Compatibility | 100% Parker Denison T7DS Series |
| Displacement Stage 1 (D) | High Flow Section (E displacement) |
| Displacement Stage 2 (S) | Low Flow Section (14 displacement) |
| Max. Pressure | Up to 300 bar (4350 PSI) |
| Max. Speed | 2200 rpm |
| Mounting Standard | SAE B 2-Bolt Flange |
| Shaft Type (1) | Straight Keyed Shaft (Standard) |
| Rotation (R) | Right Hand (Clockwise) |
| Seals (M) | Viton / FKM (Optional for High Temp) |
Expert "Survival Detail"
As a technical expert, I must warn you about one critical factor for T7DS servo systems: Oil Cleanliness.
Expert Risk Reminder: Servo-driven pumps operate with frequent speed changes. If your hydraulic oil contains microscopic contaminants, the rapid pressure fluctuations will cause the vanes to "chatter" against the cam ring, leading to instant scarring. Always flush your system and replace filters (NAS 1638 Class 7 or better) before installing a new T7DS pump. Your pump's life depends on it.
