High-pressure T7DS-E17-1R00-A1M0 double vane pump. 100% interchangeable with Parker Denison T7 series. Specifically optimized for servo-driven hydraulic systems. Factory-direct from YHDE Foshan with 9+ years of expertise. Request a quote!
T7DS-E17-1R00-A1M0 Denison Vane Pump | Servo System Compatible | YHDE
Product Overview: Engineered for High-Pressure Servo Performance

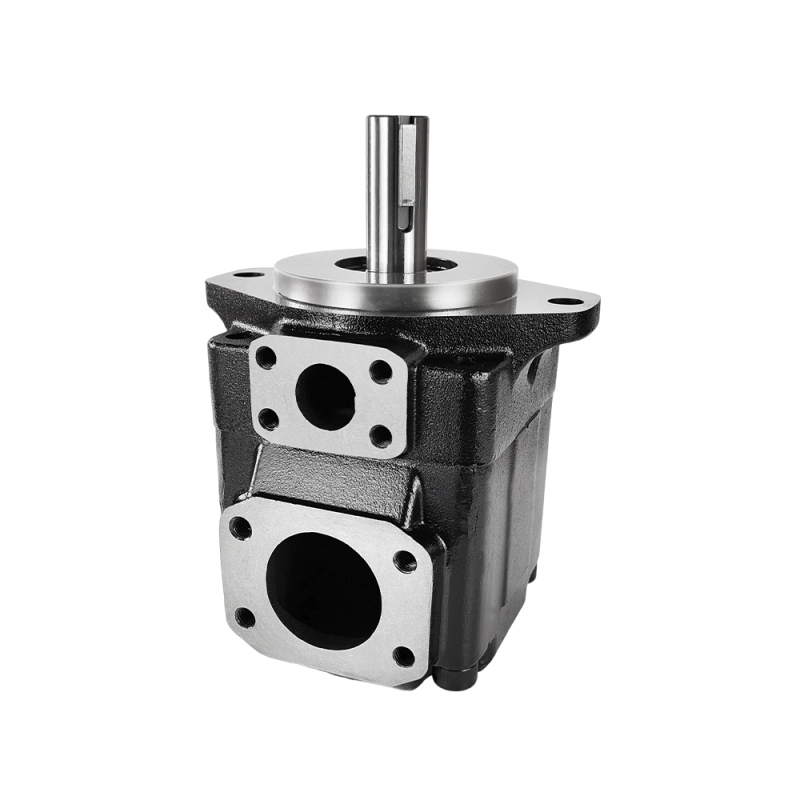

The Denison T7DS-E17-1R00-A1M0 is a premier double vane pump designed to meet the rigorous demands of modern hydraulic circuits. Known for its ultra-high pressure capability and low noise levels, this T7 series pump is the definitive choice for engineers looking to optimize servo-driven energy-saving systems.
At YHDE, we bring over 9 years of specialized manufacturing history in our Foshan facility to produce 100% "drop-in" replacements for the Parker Denison T7DS series. Our pumps are not just copies; they are high-precision components tested to match original performance curves, ensuring your machinery returns to peak efficiency without expensive redesigns.
Why Choose YHDE's T7DS Series?
100% Interchangeable: Matches every mounting dimension and port size of the original Parker Denison T7DS units.
Optimized for Servo Drives: The balanced vane design handles rapid speed variations and high-pressure cycles, making it perfect for VFD/Servo-controlled plastic injection and die-casting machines.
High Pressure, Low Noise: Capable of operating at pressures up to 300 bar while maintaining a quiet workshop environment.
100% Load Tested: Every T7DS unit undergoes a comprehensive performance test at our factory to verify volumetric efficiency and shaft integrity.
Factory-Direct Support: By sourcing from YHDE, you eliminate middleman markups and gain direct technical support for your 2026 production goals.
Technical Parameters
| Parameter | Specification |
| Model Code | T7DS-E17-1R00-A1M0 |
| Compatibility | 100% Parker Denison T7 Series |
| Max. Pressure | 300 bar (4350 PSI) |
| Max. Speed | 3000 rpm |
| Shaft Type (1) | Straight Keyed Shaft |
| Rotation (R) | Right Hand (Clockwise) |
| Mounting Standard | SAE B 2-Bolt Flange |
| Seal Material | Buna-N (Standard) or Viton (Optional) |
| Application | High-Pressure Servo Hydraulic Systems |
Expert "Life-Saving" Detail: Servo Speed Management
Since this is a Servo Pump, there is a critical "life-saving" detail for your customers: Minimum Speed (RPM).
Expert Reminder: In servo-driven systems, the pump speed often drops to near zero during pressure-holding phases. Ensure the system's minimum speed is set high enough (usually above 300-500 RPM depending on pressure) to maintain the lubrication film inside the T7DS cartridge. Running at high pressure with zero speed for extended periods will lead to instantaneous internal heat damage.
