T7DS-E20-1R00-A1M0 Servo Vane Pump | 100% Denison Compatible | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance T7DS-E20-1R00-A1M0 servo vane pump. Rated up to 300 bar. 100% interchangeable with Parker Denison T7DS series. Ideal for servo-driven injection molding machines. Factory-direct from YHDE Foshan. 100% tested for volumetric efficiency.
T7DS-E20-1R00-A1M0 Servo Vane Pump | 100% Denison Compatible | YHDE
Product Overview: Precision Power for Servo-Driven Systems

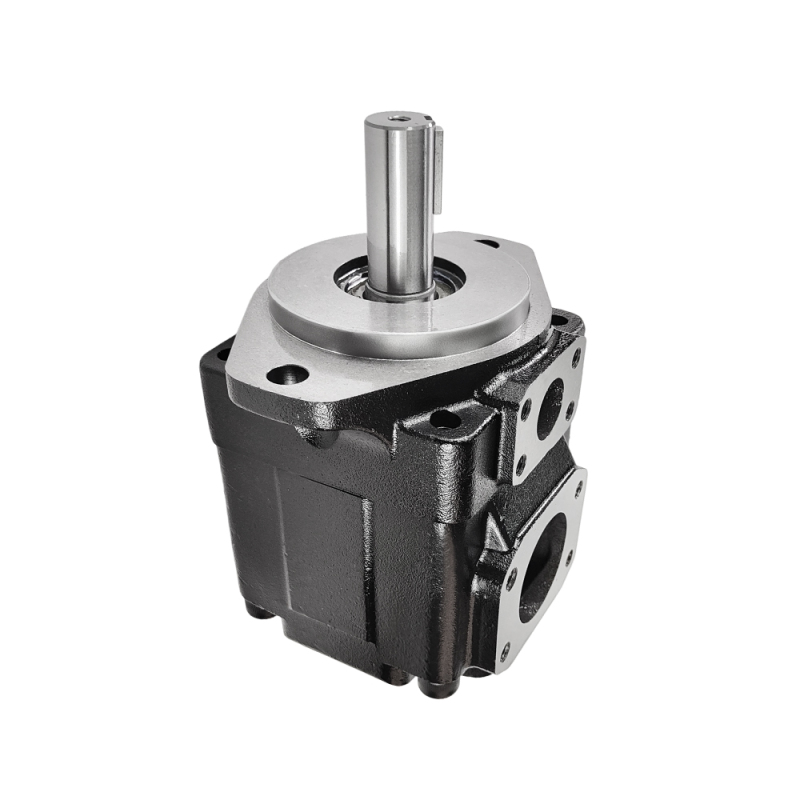

The T7DS-E20-1R00-A1M0 is a premier high-pressure vane pump specifically engineered for the rigors of modern servo-driven hydraulic circuits. Capable of handling pressures up to 300 bar, this pump offers the rapid response and low noise levels required for high-precision machinery like plastic injection molders and die-casting units.
At YHDE, we leverage over 9 years of manufacturing expertise in our Foshan facility to produce 100% "drop-in" replacements for the Parker Denison T7 series. Our T7DS units are crafted with high-strength alloy components to withstand the intense pressure cycles of servo operation, ensuring your machinery stays online with minimal downtime.
Why Choose YHDE's T7DS Series?
Ultra-High Pressure Capability: Designed to operate continuously at high pressures while maintaining peak volumetric efficiency.
Low Noise Operation: The S-series optimization reduces fluid ripple, making it one of the quietest pumps in its class—perfect for factory noise reduction goals.
100% Load Tested: Every T7DS unit undergoes a comprehensive performance audit in our factory to verify its flow rate and pressure stability across the entire RPM range.
Servo-Optimized Reliability: Built to handle the frequent acceleration and deceleration common in energy-saving servo systems.
Foshan Factory Direct: By sourcing directly from YHDE, you gain the benefit of 2026-grade manufacturing precision and direct technical support for your fleet.
Technical Parameters
| Parameter | Specification |
| Model Code | T7DS-E20-1R00-A1M0 |
| Compatibility | 100% Parker Denison T7DS Series |
| Displacement | 66.0 ml/r |
| Max. Continuous Pressure | 300 bar (4350 PSI) |
| Max. Speed | 3600 rpm |
| Min. Speed (Servo) | 400 rpm |
| Shaft Type (1) | Straight Keyed Shaft |
| Rotation (R) | Right Hand (Clockwise) |
| Seal Class (1) | S1 (Buna N) - Standard for Mineral Oil |
Expert "Life-Saving" Detail: Servo System Cleanliness
In the spirit of technical precision [cite: 2026-02-26], I must emphasize a critical detail for the T7DS: Oil Cleanliness.
Expert Reminder: Servo systems are highly sensitive to contamination. Because the T7DS operates at much higher pressures than standard vane pumps, even microscopic particles can cause rapid "sandpaper" wear on the vanes and cam ring. To protect your 2026 investment, we recommend a minimum oil cleanliness of ISO 18/16/13. Always flush the system and replace the high-pressure filter before installing a new T7DS unit.
