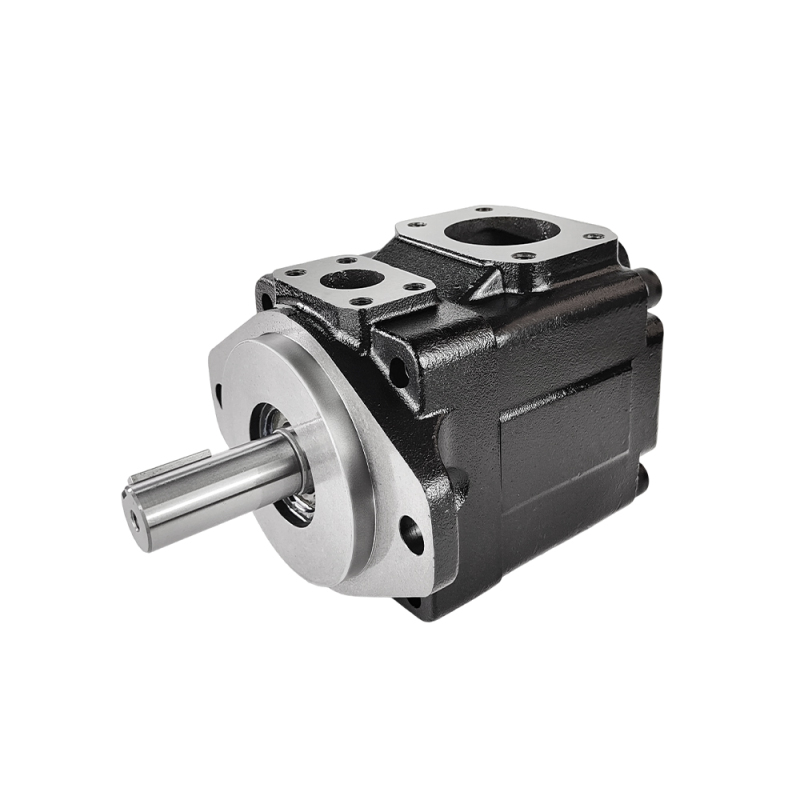

Denison T7DS E24 1R00 A1M0 Vane Pump | 300 Bar High Pressure | YHDE Replacement
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
Precision-engineered Denison T7DS E24 1R00 A1M0 single vane pump. 100% interchangeable replacement for industrial and servo-hydraulic systems. Features 300 bar peak pressure and low noise. Factory-direct from Foshan with 9+ years of manufacturing expertise. Request a quote!
Denison T7DS E24 1R00 A1M0 Vane Pump | 300 Bar High Pressure | YHDE Replacement
Product Overview: High-Pressure Reliability for Precision Systems
The Denison T7DS E24 1R00 A1M0 stands at the pinnacle of fixed-displacement vane pump technology. Specifically designed for high-pressure industrial applications, the T7DS series is the preferred power source for modern servo-driven hydraulic systems where pressure stability and volumetric efficiency are non-negotiable.
At YHDE, we understand that in a high-pressure environment, there is no room for error. With over 9 years of manufacturing history in Foshan, we provide 100% "drop-in" replacements that match every technical specification of the original Denison unit. Our T7DS E24 pumps are built to withstand 300 bar peak pressures while maintaining the ultra-low noise levels required for modern factory floors.
Why Choose YHDE's T7DS Series?
Extreme Pressure Capability: Optimized for continuous operation at high pressures, reducing the risk of internal leakage even in demanding cycles.
Servo-System Compatibility: Low flow ripple ensures precise control when paired with servo motors, aiding in energy-saving performance.
100% Interchangeable: Matches original Denison T7DS dimensions and flow rates exactly—no piping changes required.
Full-Load Factory Testing: Every unit undergoes a rigorous 100% performance check before leaving our facility to ensure it meets your 2026 production standards.
Cold-Start Resilience: Designed with advanced lip-vane technology that ensures rapid priming and lubrication during initial startup.
Technical Parameters
| Parameter | Specification |
| Model Code | T7DS E24 1R00 A1M0 |
| Compatibility | 100% Denison T7DS Series |
| Displacement (E24) | 79.3 ml/rev |
| Max. Continuous Pressure | 280 bar (4000 PSI) |
| Peak Pressure | 300 bar (4350 PSI) |
| Speed Range | 600 - 2200 rpm |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type (1) | Straight Keyed Shaft |
| Rotation (R) | Right Hand (Clockwise) |
| Seal Class | A1 (Standard Seals) |
Expert "Life-Saving" Detail: Filtration is Key
As a "skeptical expert" focusing on system longevity, I must remind you: High pressure requires high cleanliness.
Expert Reminder: For the T7DS E24 operating at 250+ bar, your hydraulic oil must maintain an ISO 4406 cleanliness level of 18/16/13 or better. Installing this pump into a contaminated system will cause "sandpaper wear" on the cam ring within hours. Always flush the system and replace filters before the first run.
