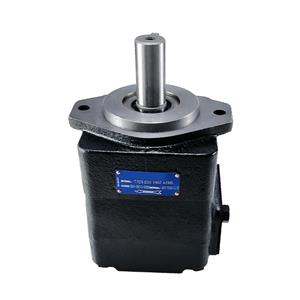

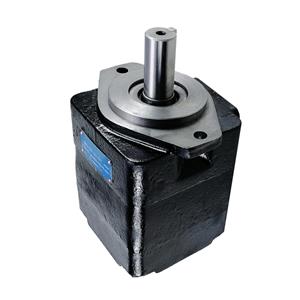

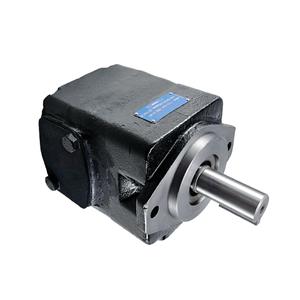

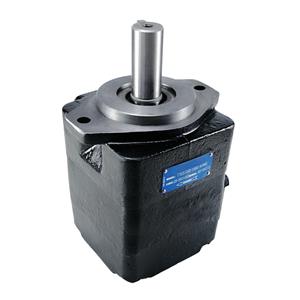

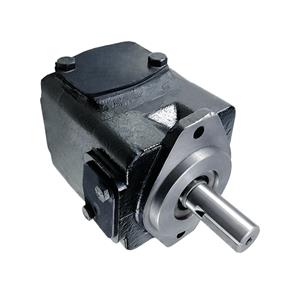

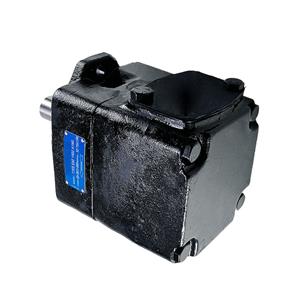

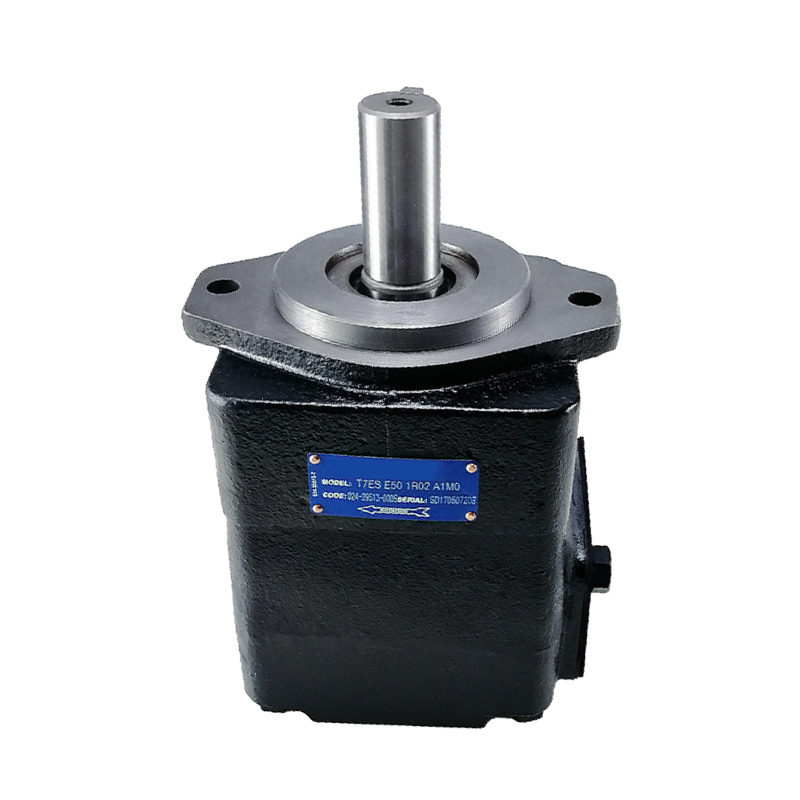

Key Features of T7ES-E50 Series Vane Pump

Featured functions:

This type of vane pump is mainly designed for high/low-pressure hydraulic circuits, and the combination of different specifications of pump cores in double or triple pumps can meet the requirements of high pressure (up to 300 bar), small flow, and low pressure, as well as large flow conditions, which is a wise way to optimize the circuit design.
This type of vane pump can meet the requirements of a very rapid pressure change cycle, the output flow rate can maintain accurate repeatability, and has the following advantages:
● High working pressure: the maximum pressure of the small-size housing pump can reach 320 bar, which can reduce the installation cost, if the pressure is used, it can extend the working life; High volumetric efficiency: the typical value is higher than 94%, thus reducing heat, and under full pressure conditions, the allowable speed is as low as 600 rpm;
● High mechanical efficiency: the typical value is higher than 94%, reducing the power loss;
● Wide speed range (600 rpm ~ 3600 rpm): combined with the use of a large displacement pump core, small specifications can be used to form a large displacement of a low noise pump;
● Low speed (600 rpm), low pressure, and high viscosity (860 cSt) performance: allow to operate at low temperatures, with small energy consumption, and no risk of sticking.
Low-pressure pulsation (2bar): reduces pipeline noise and extends the service life of other components in the loop:
● Strong resistance to solid particle pollution: this is the effect of double-blade technology, long service life of the pump:) Installation and structure selection form (pump core displacement, transmission shaft type, and oil port configuration, etc.,) diverse: easy to use;
● The concept of pump core components: reduce maintenance costs exponentially;
● Note: Special design can be provided to optimize the noise characteristics of the pump.

Technical Specifications for T7ES-E50 Oil Pump

Installation & Maintenance Guide for T7ES Pumps

To protect your rights, please read the following carefully

Pump Start-up Procedure
Preparation Prior to Start-up
The reservoir and circuit should be clean and free of dirt and debris prior to filling with fluid.
Circuit Cleanup
The reservoir should be charged with filtered hydraulic fluid. The fluid level should be sufficient to prevent vortexing at the suction connection to the pump inlet. It is good practice to clean the system by flushing and filtering, using an external slave pump.
Filling Pump and Removing Air
If the pump is mounted above the fluid level, it should be filled with fluid through the outlet port. If the pump is mounted below the fluid level, the pump outlet fitting (or other downstream fitting or plug) can be loosened to allow fluid to displace the air. It may be necessary to loosen the fill cap on the reservoir to allow the fluid to flow freely. When a solid stream of fluid with no observed air begins to drain through the loosened fitting, the fitting should be retightened. An air bleed valve in the outlet circuit is also recommended to remove trapped air. If such a device is used, the pump should be filled with fluid before start-up. In some cases, it may be possible to prime the pump by running the engine starter for five to ten seconds with the throttle and/or ignition switch in the "off" position. It will be necessary to loosen a fitting or plug in the pump outlet to allow air to escape.
Pump Start-up
All controls should be placed in the neutral position so the pump is unloaded when started. Start the engine and run at low idle. Once the pump is started, it should prime and pump within a few seconds. If it does not, make sure there are no restrictions between the reservoir and the inlet to the pump, and that there are no air leaks in the inlet line and connections.  Also, make sure that trapped air can escape from the outlet. Run at low engine idle for approximately five minutes. Then, while observing the reservoir fluid level, operate the implements. Extend all actuators to maximum safe limits to completely fill the system with fluid. Do not run with the fluid level below the "low" limit. Add fluid to the reservoir to bring the fluid to the proper fill level.

Company Profile

We are Guangzhou Yisheng Machinery Equipment Co., Ltd, which is located in Foshan City, Guangdong Province, China. We have an R&D department with about 5-10 engineers and designers. Our factory has over 100 skilled employees, and our production facility features many advanced manufacturing and testing equipment, including numerical control lathes, processing centers, CNC milling machines, special CNC grinding machines, double grinding machines, and automatic 3D measuring instruments.

Our main products are hydraulic variable displacement vane pump, double pump, HVP high-pressure variable displacement vane pump, PV2R1 & PV2R2 series, V&VQ series, T6&T7 series, SQP series, and VQ series of fixed displacement vane pump and electrical motors for hydraulic application.

Our products are widely used for industrial machinery, NC lathe machines, shoe machinery, woodworking machines, plastic machines, construction machines, and various hydraulic system machinery. We are also able to supply the customized products and services as per your specifications. We are looking forward to cooperating with your company.

Why choose us

1. The company has been established for more than 10 years, an old brand, worthy of trust, has more than 1000k+ followers

2. The company's product category is complete, also has a variety of accessories to provide.

3. All products have been passed strict quality tests before shipment, make sure high quality.

4.24H customer service, please feel free to contact me if you have any questions.

5. One-year warranty, we have professional and technical personnel for docking, product quality is guaranteed, and after-sales are guaranteed. After the one-year warranty is over, we can provide maintenance services for customers (this requires a fee).

FAQ

Q: Are you a trading company or a manufacturer?

A: We are a factory

Q: How long is your delivery time?

A: Generally, it is 1-2days if the goods are in stock. It is 5-7days if the goods are out of stock. It is subject to the order quantity.

Q: Do you provide a sample? Is it free or extra?

A: We are willing to provide samples to test quality first, but it is not free because it is high value products. But the sample cost can be returned in bulk order.

Q: What are the terms of payment?

A: 100% deposit or 30% deposit, 70% before shipment.

Q: How long is the warranty?

A: We offer 12 months warranty.
