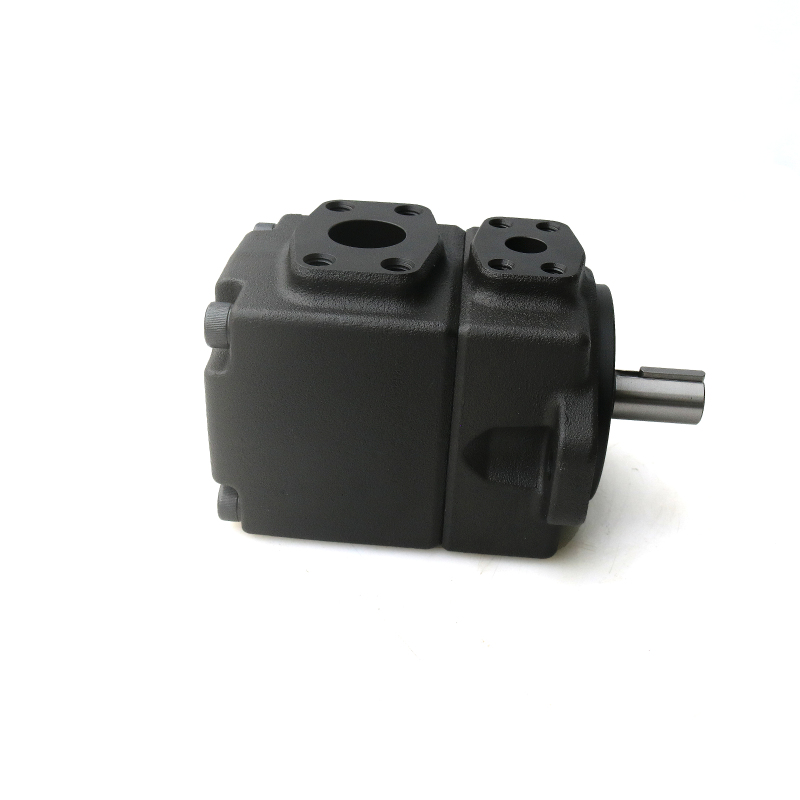

PV2R1-23-F-RAA-41 Single Vane Pump | Yuken Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-pressure, ultra-low noise PV2R1-23-F-RAA-41 hydraulic vane pump. 100% interchangeable with Yuken PV2R series. Factory-direct from YHDE Foshan with 9+ years of manufacturing expertise. 100% performance tested for reliability. Request a quote!
PV2R1-23-F-RAA-41 Single Vane Pump | Yuken Replacement | YHDE
Product Overview: The Silent Power Solution
Are you facing excessive system noise or pressure instability in your hydraulic machinery? The PV2R1-23-F-RAA-41 is the definitive solution. At YHDE, we specialize in high-pressure, ultra-low noise vane pumps that restore your machine's precision without the premium OEM price tag.
With over 9 years of specialized manufacturing expertise in our Foshan facility, we have engineered the PV2R series to be a 100% "drop-in" replacement for the original Yuken units. This pump is specifically designed for high-performance industrial applications like plastic injection molding and precision machine tools.
Why Choose YHDE's PV2R Series?
Ultra-Low Noise Design: Features Yuken-style internal geometry to ensure a quiet workshop environment, even at maximum pressure.
High Pressure Capability: Rated for continuous operation at 210 bar, providing the robust power needed for heavy-duty cycles.
100% Mounting Interchangeability: Matches all original Yuken PV2R1 dimensions, including the SAE-style flange and port positions. No piping modifications required.
Full-Load Performance Tested: In our professional testing center, every PV2R1-23 unit undergoes a rigorous pressure and flow test before shipping, ensuring it meets your 2026 production demands.
Durable Construction: Utilizing high-grade materials for the cam ring and vanes to ensure long-term volumetric efficiency.
Technical Parameters
| Parameter | Specification |
| Model Code | PV2R1-23-F-RAA-41 |
| Interchangeability | 100% Yuken PV2R1 Series |
| Nominal Displacement | 23.7 ml/rev |
| Maximum Pressure | 210 bar (3045 PSI) |
| Minimum Speed | 600 rpm |
| Maximum Speed | 1800 rpm |
| Mounting Standard | Flange Mounting (F) |
| Shaft Type | Straight Keyed Shaft |
| Port Configuration | AA (Standard Porting) |
The YHDE Strategic Advantage
Sourcing directly from our Foshan factory allows you to bypass middleman markups while gaining 1-on-1 technical support. As we pursue our 2026 goal of leading the market in high-quality vane pumps, we invite you to experience the precision that over 9 years of engineering heritage provides.
Technical Support: Confused about pump selection? Check our
Vane Pump Performance Parameters Guide .
Not Sure if This Model Fits Your System?
Choosing the right displacement and pressure rating is critical to avoiding system overheating. Our engineering team at YHDE has compiled a comprehensive Technical Selection Guide for the PV2R1 series.
In this guide, you will learn:
How to calculate exact flow requirements for your machinery.
A full comparison of PV2R1 performance parameters.
Tips for 100% "drop-in" compatibility with original OEM standards.
[Read the Full Technical Selection Guide ]
