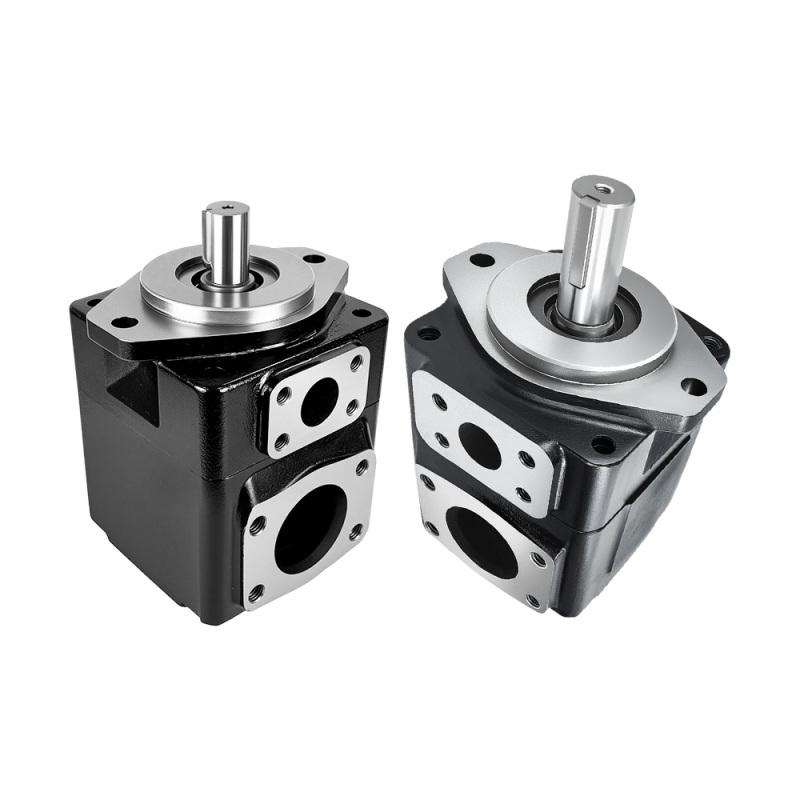

T6E-050-1R00 Single Vane Pump | High-Pressure Industrial Hydraulic Pump
Brand: YIHE
Product origin: China
Delivery time: 10-30days
Supply capacity: 7pcs/5day
High-performance T6E-050-1R00 single vane pump for heavy-duty applications. 158.0 ml/r displacement and up to 240 bar pressure. Precision-engineered for low noise and maximum volumetric efficiency. Fast global shipping. Get a quote!
T6E-050-1R00 Single Vane Pump | High-Pressure Industrial Hydraulic Pump
Product Overview
The T6E-050-1R00 is a premium fixed displacement single vane pump designed to handle the most demanding industrial and mobile hydraulic requirements. With its robust construction and high-flow capacity, this unit is engineered for long-term stability and peak performance under high-pressure conditions.
This pump is a direct "drop-in" replacement for standard industrial configurations, making it an ideal choice for machinery maintenance, system upgrades, or new OEM builds where reliability is the top priority.
Key Features & Technical Advantages
High Flow Capacity: The 050 displacement provides a substantial 158.0 ml/r, ensuring sufficient hydraulic power for large-scale actuators.
Exceptional Pressure Tolerance: Capable of sustaining continuous operating pressures up to 240 bar (3500 PSI).
Advanced Balanced Vane Design: Minimizes internal friction and noise while maximizing the service life of the cam ring and vanes.
High Volumetric Efficiency: Precision internal clearances reduce heat generation and optimize energy consumption.
Rugged Construction: Built with high-strength alloys to withstand harsh operating environments and fluid contamination.
Technical Specifications
| Parameter | Specification |
| Model Code | T6E-050-1R00 |
| Displacement (050) | 158.0 ml/r |
| Max. Operating Pressure | 240 Bar (3500 PSI) |
| Max. Speed | 2200 RPM |
| Mounting Standard | SAE C 2-Bolt / 4-Bolt |
| Shaft Type | Straight Keyed (1) |
| Rotation | Right Hand / Clockwise (R) |
Primary Applications
The T6E-050 is widely utilized in sectors requiring heavy-duty hydraulic power:
Metalworking: Hydraulic presses, large shears, and bending machines.
Plastic Machinery: Heavy-duty injection molding and blow molding equipment.
Construction: Mobile drilling rigs and specialized earth-moving machinery.
Marine: Deck machinery, high-torque winches, and steering systems.
