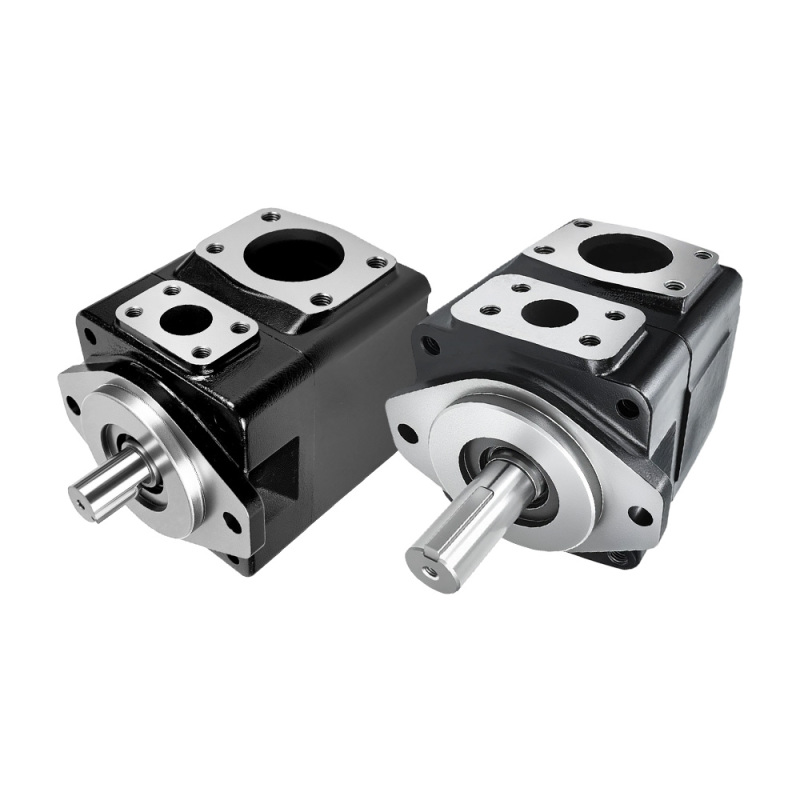

T6E-066-1R00 Single Vane Pump | High-Pressure Hydraulic Replacement | Premium Quality
Brand: YIHE
Product origin: China
Delivery time: 10-30days
Supply capacity: 7pcs/5day
High-performance T6E-066-1R00 single hydraulic vane pump with 213.3 ml/rev displacement. Supports continuous pressure up to 240 bar. Engineered for low noise and long service life in heavy-duty industrial and mobile systems. Get a technical quote today!
T6E-066-1R00 Single Vane Pump | High-Pressure Hydraulic Replacement | Premium Quality
Product Overview
The T6E-066-1R00 is a high-performance, fixed displacement single vane pump designed to handle the most demanding high-pressure hydraulic applications. Part of the rugged T6E series, this pump is known for its high volumetric efficiency and exceptional durability in both industrial and mobile environments.
This unit is a 100% interchangeable replacement for the original Denison (Parker) T6E-066-1R00, matching all SAE mounting dimensions, shaft specifications, and performance curves. It is an ideal "drop-in" solution for maintaining or upgrading your hydraulic machinery without the need for circuit modifications.
Key Features & Benefits
High Power Density: Capable of operating at continuous pressures up to 240 bar (3500 PSI).
Large Displacement: Features a 213.3 ml/rev displacement for high-flow requirements.
Low Noise Technology: The balanced vane design minimizes vibration and operational noise, making it suitable for indoor factory settings.
Extended Service Life: Precision-machined internal components and a robust housing ensure reliability under heavy-load cycles.
Simplified Maintenance: The "cartridge" design allows for fast and easy replacement of internal parts without removing the entire pump from the drive.
Technical Specifications
| Parameter | Specification |
| Model Code | T6E-066-1R00 |
| Displacement (066) | 213.3 ml/rev |
| Max. Pressure | 240 Bar (3500 PSI) |
| Speed Range | 600 RPM - 2200 RPM |
| Mounting Standard | SAE C 2-Bolt / 4-Bolt |
| Shaft Type | Straight Keyed (1) |
| Rotation | Right Hand / Clockwise (R) |
Industrial Applications
The T6E-066-1R00 is widely used in heavy-duty machinery, including:
Heavy Industrial Presses (Stamping, Bending, Forging)
Plastic Injection Molding Machines
Mobile Construction Equipment (Excavators, Drill Rigs)
Marine & Offshore Systems (Winches, Steering Gear)
