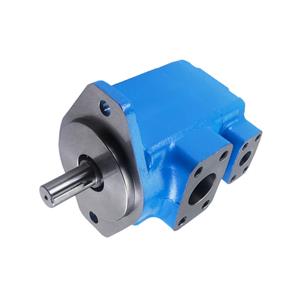

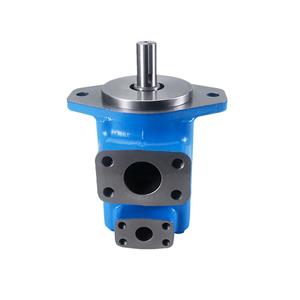

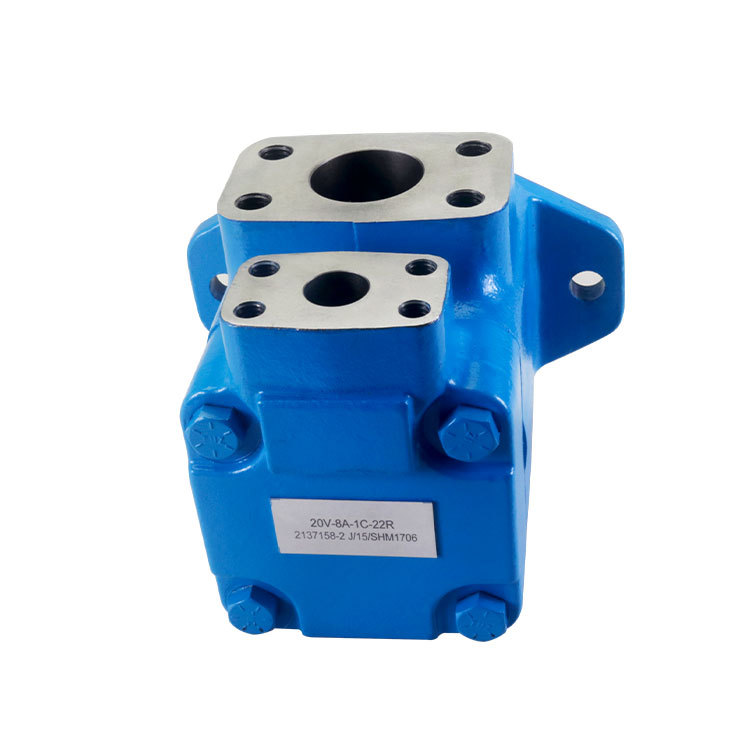

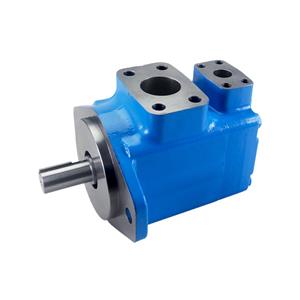

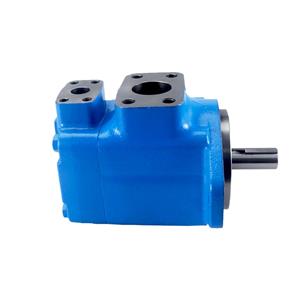

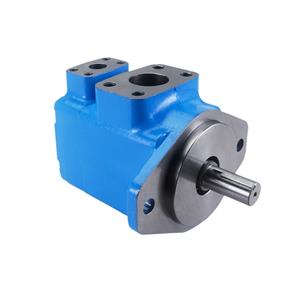

Vickers 20V-6A-1B-22R Single Vane Pump | 100% Compatible Replacement
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
Optimize your hydraulic system with the 20V-6A-1B-22R single vane pump. 100% interchangeable with Vickers Eaton standards. Features ultra-low noise, high pressure stability, and long service life. Fast global shipping. Get a technical quote today!
Vickers 20V-6A-1B-22R Single Vane Pump | 100% Compatible Replacement
Product Overview
The 20V Series is a high-performance fixed displacement hydraulic vane pump engineered for demanding industrial power units and mobile machinery. Featuring the advanced intra-vane design, the 20V-6A-1B-22R ensures low vane-tip loading, which significantly reduces wear and extends the operating life of the pump even under high-pressure conditions.
Designed as a direct "drop-in" replacement, this pump matches the exact mounting and performance specifications of the original Vickers (Eaton) 20V series, providing a cost-effective solution for system maintenance and upgrades.
Core Features & Benefits
Intra-Vane Design Excellence: The specialized "vane-in-vane" technology reduces internal friction and heat, allowing for higher operating pressures and longer service intervals.
Low Noise Operation: Optimized internal geometry and balanced design minimize pressure ripples, ensuring quiet performance in indoor factory environments.
High Volumetric Efficiency: Precision-machined rotors and cam rings ensure maximum flow output and energy savings.
Robust Serviceability: The cartridge-style internal kit allows for rapid on-site repair, minimizing equipment downtime.
100% Interchangeability: Fully compatible with the Vickers 20V-6A-1B-22R model, matching all SAE 2-bolt mounting and porting requirements.
Technical Specifications
| Parameter | Specification |
| Model Code | 20V-6A-1B-22R |
| Compatibility | 100% Vickers (Eaton) V Series |
| Displacement | 6 USgpm (at 1200 rpm) |
| Max. Pressure | 175 bar (2500 psi) |
| Mounting | SAE A 2-bolt Flange |
| Shaft Type | Straight Keyed (1) |
| Rotation | Right Hand / Clockwise (R) |
Model Code Analysis
20V: Series (Single Vane Pump)
6: Displacement (6 USgpm)
A: Inlet port (SAE 4-bolt flange)
1: Shaft type (Straight keyed)
B: Outlet port position (90° CCW from inlet)
22: Design sequence
R: Rotation (Right-hand/Clockwise)
Primary Applications
The 20V series is the preferred choice for systems requiring stable, continuous hydraulic power:
Machine Tools: For precision clamping and movement.
Plastic Injection Molding: Providing reliable pressure for high-cycle operations.
Material Handling: Used in steering and lift circuits for mobile equipment.
Industrial Power Units: Serving as the primary pump for diverse manufacturing systems.
