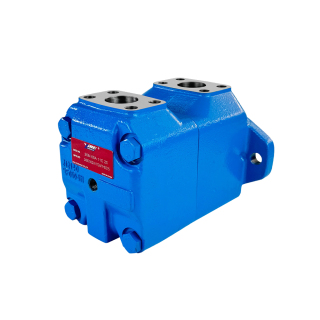

25M65A-11C20 Vane Motor | 100% Vickers Compatible | YHDE High Torque
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 300pcs/day
Heavy-duty 25M65A-11C20 vane motor replacement. 100% interchangeable with Eaton Vickers. Features high-speed performance and robust startup torque. Factory-direct from YHDE Foshan with 9+ years of expertise. 100% performance tested. Request a quote!
25M65A-11C20 Vane Motor | 100% Vickers Compatible | YHDE High Torque
Product Overview: Restore Your System's Driving Force
Is your hydraulic drive losing speed under load or struggling to start? The 25M65A-11C20 vane motor is engineered to provide reliable, high-torque rotary power in a compact package. Unlike low-quality alternatives, our 25M series maintains high volumetric efficiency even after thousands of hours of operation, ensuring your machinery stays productive.
At YHDE, we leverage over 9 years of specialized manufacturing experience in our Foshan facility to provide 100% "drop-in" replacements for original Vickers units. This motor matches every mounting dimension and performance curve, allowing for a seamless swap-out with zero system modifications.
Why Choose YHDE's 25M Vane Motor Series?
Exceptional Startup Torque: Our precision-engineered internal vane geometry ensures high mechanical efficiency, providing the "break-out" force needed for heavy-duty winch and conveyor applications.
100% Interchangeable: Matches original Eaton Vickers 25M65A dimensions exactly, including the SAE B 2-bolt mount and 11-type shaft.
Rigorous Full-Load Testing: Every 25M65A-11C20 unit we manufacture undergoes a rigorous performance test on our professional stands to verify torque output and zero leakage across the speed range.
Bi-Rotational Flexibility: Designed for reversible operation, offering versatility for complex hydraulic circuits.
Factory-Direct Support: Sourcing directly from our Foshan factory eliminates middleman markups and provides you with direct access to our 2026 engineering support team.
Technical Parameters
| Parameter | Specification |
| Model Code | 25M65A-11C20 |
| Compatibility | 100% Vickers 25M Series |
| Displacement | 130.0 ml/r (approx. 65 torque rating) |
| Max. Pressure | 172 bar (2500 PSI) |
| Max. Speed | 2200 rpm |
| Max. Torque | 350 Nm (Approx. at max pressure) |
| Mounting Standard | SAE B 2-Bolt Flange |
| Shaft Type (11) | Straight Keyed Shaft (SAE B) |
| Rotation | Bi-directional (Reversible) |
⚠️ Expert "Life-Saving" Risk Reminder
As a technical expert, I must emphasize one critical detail for the 25M series motor: The Case Drain Line.
Crucial Warning: Never operate the 25M65A-11C20 without a properly connected case drain line directly to the tank. If the case drain is blocked or restricted, internal pressure will instantaneously blow out the shaft seal, leading to catastrophic failure. Always verify your drain line back-pressure is below 2 bar before full operation.
