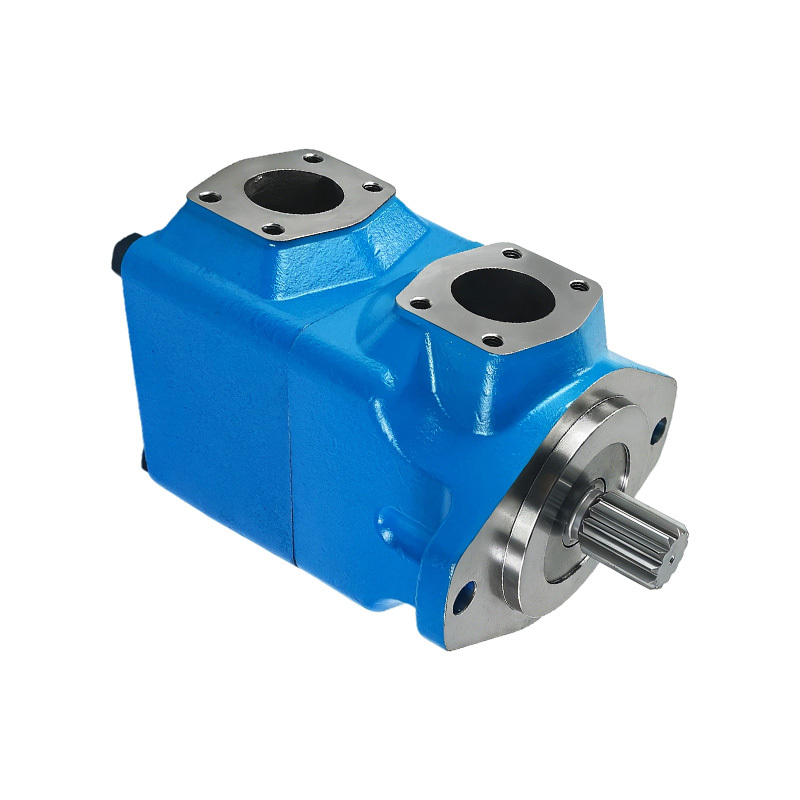

50M255A-11A20 Vane Motor | 401 ml/r High Torque Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
Heavy-duty 50M255A-11A20 vane motor. 100% interchangeable with Eaton Vickers 50M series. Delivers 401 ml/r displacement for high-torque industrial drives. Factory-direct from YHDE Foshan with 9+ years of expertise. 100% load tested. Get a quote today!
50M255A-11A20 Vane Motor | 401 ml/r High Torque Replacement | YHDE
Product Overview: The Powerhouse of Industrial Drives
When your heavy-duty machinery requires massive torque and unwavering reliability, the Vickers 50M255A-11A20 is the industry standard. As the largest displacement option in the M series, this motor is built to handle the most punishing duty cycles in mining, marine, and heavy manufacturing.
At YHDE, we leverage over 9 years of specialized manufacturing experience in our Foshan facility to provide 100% "drop-in" replacements for the original Eaton Vickers 50M series. We match every mounting dimension and torque curve exactly, allowing you to restore your equipment's power without the premium price or the 16-week lead time of OEM suppliers.
Why Choose YHDE's 50M Series?
Maximum Torque Efficiency: Our dual-vane design ensures high starting torque and smooth operation even at low speeds, preventing stall conditions in heavy-load starts.
100% Mounting Interchangeability: Fits perfectly into existing SAE C 2-bolt mounts. No re-piping or bracket modification required.
Rigorous Full-Load Testing: Every 50M255A unit is 100% performance tested on our heavy-duty stands to verify it meets the 155 bar continuous pressure rating.
Precision CNC Manufacturing: Internals are machined to +/- 0.005mm tolerances, ensuring original-level volumetric efficiency and long service life.
Factory-Direct Value: By cutting out the middleman, we help you achieve your 2026 efficiency goals with direct technical support from our engineering team.
Technical Parameters
| Parameter | Specification |
| Model Code | 50M255A-11A20 |
| Compatibility | 100% Eaton Vickers 50M Series |
| Displacement | 401 ml/r (255 lb-in/100 psi) |
| Max. Continuous Pressure | 155 bar (2250 PSI) |
| Max. Speed | 2200 rpm |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type (1) | Straight Keyed Shaft |
| Rotation | Bi-directional (Reversible) |
| Case Drain | External Drain Required |
Expert "Life-Saving Detail": Case Drain Connection
For a motor as powerful as the 50M255A, the Case Drain is not optional—it is a "life-saving" necessity for your hydraulic system.
Risk Reminder: Never plug the case drain port on a 50M series motor. An external drain line must be connected directly to the reservoir. Failure to do so will cause instantaneous internal pressure buildup, blowing out the shaft seal and causing permanent internal damage within minutes of startup.
