Heavy-duty 45M130A-11A20 high-torque vane motor (209 ml/r). 100% interchangeable with Eaton Vickers 45M series. Engineered for high-speed industrial drives. Factory-direct from YHDE Foshan with 9+ years of expertise. 100% load tested. Request a quote!

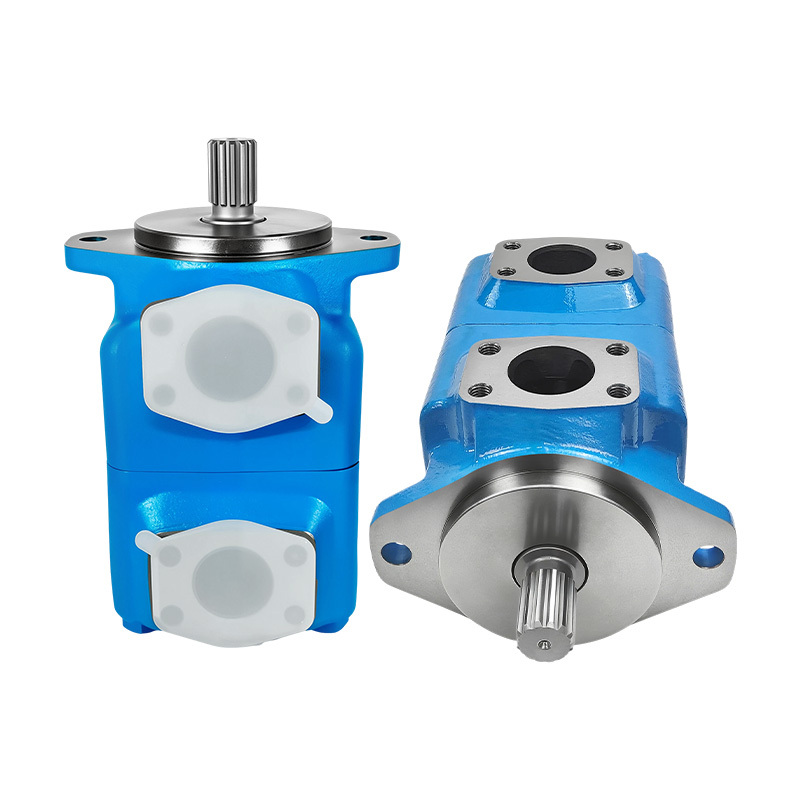

45M130A-11A20 Vane Motor | 100% Vickers Compatible | YHDE
Product Overview: Engineered for High-Torque Industrial Power
When your heavy industrial machinery demands consistent, high-torque performance at variable speeds, the Vickers 45M130A-11A20 is the professional choice. At YHDE, we understand that in large-scale operations—such as heavy-duty winches or industrial rotary drives—downtime is not an option. We leverage over 9 years of specialized manufacturing history to provide 100% "drop-in" replacements that allow you to restore your system's power without the OEM lead times.
Every 45M130A unit we manufacture in our Foshan facility is built to match the original Eaton Vickers performance curves exactly. This ensures that when you choose YHDE, you are getting the same volumetric efficiency and mechanical reliability that your system's original engineering intended.
Core Performance Benefits
Dual-Vane Performance: Optimized for high starting torque and smooth operation even at low speeds, reducing mechanical shock to your drive-train.
100% Mounting Interchangeability: Matches all SAE C 2-bolt mounting dimensions and shaft specifications. No re-piping or bracket modification required.
100% Full-Load Tested: Unlike many aftermarket alternatives, every YHDE 45M130A motor undergoes a rigorous full-load performance test to verify torque output and ensure zero external leakage.
Reversible Operation: Fully bi-directional design with consistent torque delivery in both clockwise and counter-clockwise rotations.
Factory-Direct Technical Support: Our engineering team in Foshan provides 1-on-1 support for complex high-torque system integrations.
Technical Parameters
| Parameter | Specification |
| Model Code | 45M130A-11A20 |
| Compatibility | 100% Eaton Vickers 45M Series |
| Displacement | 209 ml/r (130 lb-in/100 psi) |
| Max. Continuous Pressure | 172 bar (2500 PSI) |
| Max. Speed | 2200 rpm |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type (1) | Straight Keyed Shaft |
| Rotation | Bi-directional (Reversible) |
| Cover Position (A) | Standard Inlet/Outlet Position |
Expert "Life-Saving" Detail: The Case Drain Necessity
As a manufacturer focused on technical precision, we must highlight a critical "life-saving" detail for the 45M series:
Expert Reminder: For high-torque vane motors like the 45M130A, the External Case Drain is not optional—it is vital. Ensure the drain line is connected directly to the reservoir and is large enough to prevent back-pressure on the shaft seal. Failure to maintain a clear case drain will lead to instantaneous seal failure and permanent internal scarring of the cartridge kit.
System Synergy: This heavy-duty motor is often paired with our high-flow pumps. Check our
Vickers 4535V Series Double Pumps for a complete system solution.
