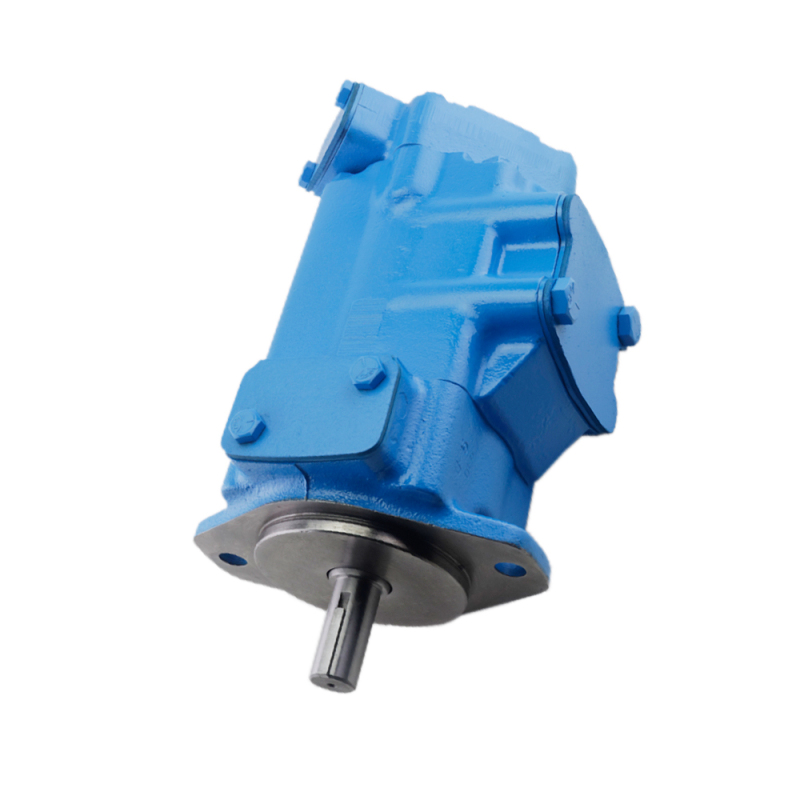

2520V-21A2-1AA22R Double Vane Pump | 100% Vickers Compatible | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-precision 2520V-21A2-1AA22R double hydraulic vane pump (21GPM + 2GPM). 100% interchangeable with Vickers Eaton. Factory-direct from YHDE with 9+ years of manufacturing expertise. Durable, low-noise, and 100% performance tested. Get a quote!
2520V-21A2-1AA22R Double Vane Pump | 100% Vickers Compatible | YHDE
Product Overview
The 2520V Series is a high-performance double fixed displacement vane pump designed for industrial and mobile applications requiring two separate flow sources. The 2520V-21A2-1AA22R model combines a 25-frame front section (21 GPM) with a 20-frame rear section (2 GPM), providing a versatile solution for complex hydraulic circuits.
As a specialized manufacturer with over 9 years of expertise, YHDE produces the 2520V series to be 100% interchangeable with Vickers (Eaton) specifications. This pump serves as a seamless "drop-in" replacement for plastic machinery, material handling equipment, and industrial power units.
Core Features & Benefits
Intra-Vane Technology: Features the "vane-in-vane" design that reduces vane tip loading on the cam ring, significantly extending the service life and reliability of the pump.
Ultra-Low Noise Operation: Specifically engineered to minimize pressure ripples, ensuring a quiet working environment even in indoor factory settings.
High Efficiency: Precision-machined internal components ensure high volumetric efficiency and reduced heat generation.
100% Interchangeability: Direct replacement for Vickers 2520V-21A2-1AA22R. Matches all original SAE mounting dimensions, shaft types, and port configurations.
Modular Maintenance: The 25V and 20V cartridge kits are fully replaceable, allowing for quick on-site repairs and reduced machine downtime.
Technical Specifications
| Parameter | Specification (Front 25V / Rear 20V) |
| Model Code | 2520V-21A2-1AA22R |
| Compatibility | 100% Vickers Eaton 2520V Series |
| Front Displacement (21) | 21 USgpm (at 1200 rpm) |
| Rear Displacement (2) | 2 USgpm (at 1200 rpm) |
| Max. Pressure | 175 bar (2500 PSI) |
| Mounting Standard | SAE B 2-Bolt Flange |
| Shaft Type | Straight Keyed (A) |
| Rotation | Right Hand / Clockwise (R) |
Detailed Model Code Analysis
2520V: Double Vane Pump (25 + 20 Series).
21: Front pump flow (21 USgpm).
A: Inlet port (SAE 4-bolt flange).
2: Rear pump flow (2 USgpm).
1: Front outlet position (Opposite inlet).
A: Rear outlet position (In line with inlet).
A: Shaft type (Straight keyed).
22: Design sequence.
R: Rotation (Right hand/Clockwise).
Why Source From YHDE Hydraulics?
Direct Factory Source: 9+ years of dedicated expertise in manufacturing high-quality compatible hydraulic pumps.
100% Performance Tested: Every 2520V unit undergoes a rigorous full-load pressure and flow test on our professional testing stands before shipment.
Global Compatibility: Our products are engineered to provide seamless replacements for Vickers, Denison, Yuken, and Tokimec.
Deep Inventory: We maintain a comprehensive stock of 25V and 20V cartridge kits for immediate worldwide delivery.
