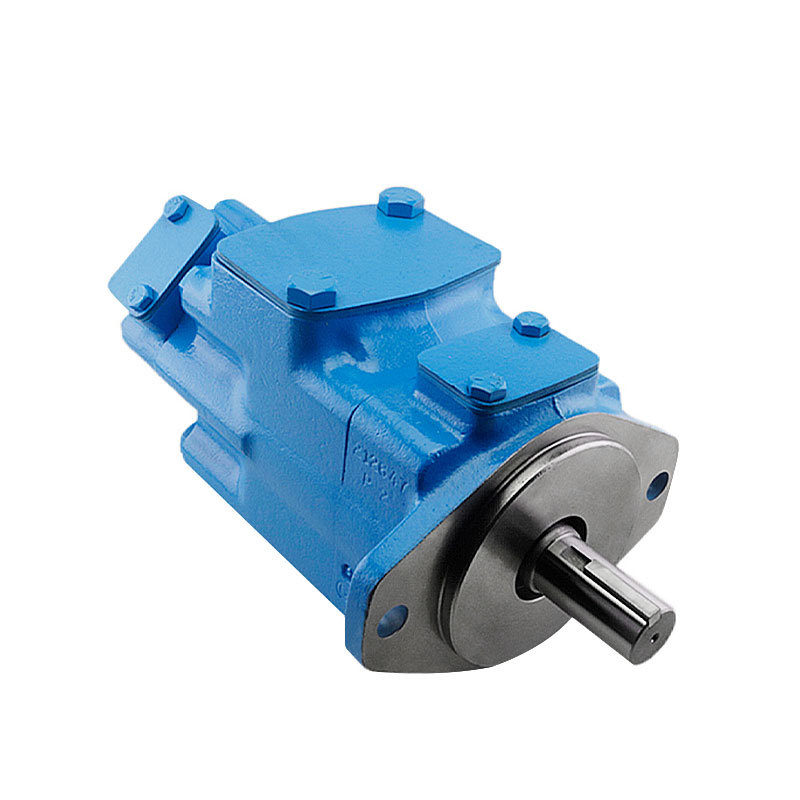

Vickers 3520V-35A11-1CC22R Double Vane Pump | 100% Compatible | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
Premium 3520V-35A11-1CC22R double hydraulic vane pump. 100% interchangeable with Vickers Eaton. Factory-direct from YHDE with 9+ years of manufacturing expertise. Durable intra-vane design, high efficiency, and fast global shipping. Get a quote!
Vickers 3520V-35A11-1CC22R Double Vane Pump | 100% Compatible | YHDE
Product Overview
The 3520V Series is a high-performance double fixed displacement vane pump designed to provide two independent flow sources from a single drive shaft. The 3520V-35A11-1CC22R model combines a large 35-size front section with a medium 11-size rear section, utilizing Vickers' legendary Intra-vane technology to deliver high-pressure performance with exceptionally low noise levels.
As a specialized manufacturer with over 9 years of expertise, YHDE produces the 3520V series to be 100% interchangeable with Vickers (Eaton) specifications. This pump is an ideal "drop-in" solution for injection molding machines, presses, and heavy-duty industrial power units.
Core Features & Benefits
Intra-Vane Design Technology: The unique "vane-in-vane" principle reduces the pressure on vane tips against the cam ring, significantly extending the service life and reducing internal wear.
Dual Flow Flexibility: Provides two separate outputs, allowing a single pump to power two independent hydraulic circuits, which simplifies system design and reduces costs.
Quiet Industrial Performance: Engineered for indoor factory environments, the 3520V series operates with minimal vibration and noise, meeting strict workplace safety standards.
100% Interchangeability: Direct replacement for Vickers 3520V-35A11-1CC22R. Matches all original SAE mounting dimensions and port configurations.
Replaceable Cartridge Kits: Both the front and rear pump sections feature a cartridge-style design, allowing for fast on-site repairs without removing the pump housing.
Technical Specifications
| Parameter | Specification |
| Model Code | 3520V-35A11-1CC22R |
| Compatibility | 100% Vickers Eaton 3520V Series |
| Front Displacement (35) | 113.0 ml/r (Approx. 35 USgpm at 1200 rpm) |
| Rear Displacement (11) | 36.0 ml/r (Approx. 11 USgpm at 1200 rpm) |
| Max. Pressure | 175 bar (2500 PSI) |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type | Straight Keyed (1) |
| Rotation | Right Hand / Clockwise (R) |
Why Source From YHDE Hydraulics?
Direct Factory Manufacturer: We are the source factory with 9+ years of expertise, offering competitive pricing and deep technical support.
100% Performance Tested: Every 3520V unit undergoes a rigorous full-load pressure and flow test on our specialized testing stands before shipping.
Specialized Compatibility: We are experts in manufacturing high-quality compatible replacements for Vickers, Denison, Yuken, and Tokimec.
Fast Global Logistics: We maintain an extensive inventory of 3520V cartridge kits to ensure minimal lead times for our global clients.
