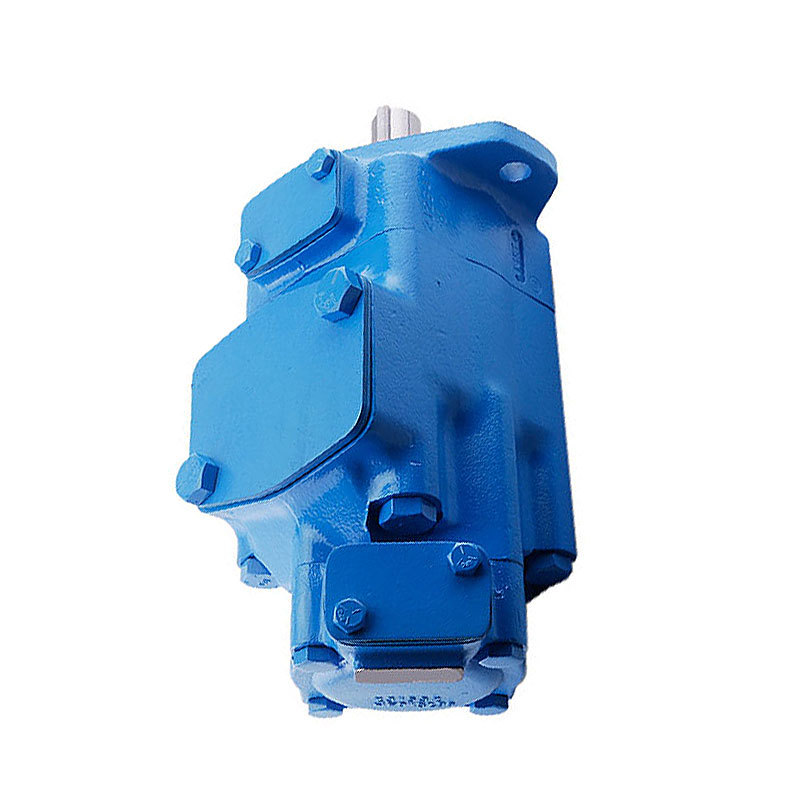

3520V-35A5-1CC22R Double Vane Pump | 100% Vickers Compatible | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
Premium 3520V-35A5-1CC22R double hydraulic vane pump (113ml/r + 18ml/r). 100% interchangeable with Vickers Eaton. Factory-direct from YHDE with 9+ years of manufacturing expertise. Durable, quiet, and fast global shipping. Get a quote!
3520V-35A5-1CC22R Double Vane Pump | 100% Vickers Compatible | YHDE
Product Overview
The 3520V Series is a high-performance double fixed displacement intra-vane pump engineered to provide two independent flow sources from a single drive shaft. The 3520V-35A5-1CC22R model combines a high-capacity 35GPM front section with a precision 5GPM rear section, making it ideal for systems requiring both high-volume and high-pressure control.
As a specialized manufacturer with over 9 years of expertise, YHDE produces the 3520V series to be 100% interchangeable with Vickers (Eaton) specifications. This pump serves as a reliable "drop-in" replacement for plastic injection machines, industrial power units, and heavy-duty automation equipment.
Core Features & Benefits
Intra-Vane Design Technology: Utilizes the "vane-in-vane" principle to reduce vane tip pressure against the cam ring, significantly extending service life and allowing for higher operating speeds.
Dual-Flow Efficiency: Provides two separate outputs to power independent hydraulic circuits, simplifying system design and reducing the number of required motors.
Quiet Industrial Performance: Advanced internal geometry ensures exceptionally low noise and vibration, meeting strict indoor factory noise standards.
High Volumetric Efficiency: Precision-machined internal components ensure maximum flow output with minimal heat generation, improving overall energy efficiency.
100% Interchangeability: Direct replacement for Vickers 3520V-35A5-1CC22R. Matches all original SAE mounting dimensions, port configurations, and performance curves.
Technical Specifications
| Parameter | Specification (Front 35 / Rear 5) |
| Model Code | 3520V-35A5-1CC22R |
| Compatibility | 100% Vickers Eaton V Series |
| Front Displacement (35) | 113.0 ml/r (Approx. 35 USgpm at 1200 rpm) |
| Rear Displacement (5) | 18.0 ml/r (Approx. 5 USgpm at 1200 rpm) |
| Max. Pressure | 175 bar (2500 PSI) |
| Mounting Standard | SAE B 2-Bolt Flange |
| Shaft Type | Straight Keyed (1) |
| Rotation | Right Hand / Clockwise (R) |
Detailed Model Code Analysis
3520V: Series (Double Vane Pump - 35V + 20V sections).
35: Front section displacement code (Approx. 113.0 ml/r).
A: Inlet port (SAE 4-bolt flange).
5: Rear section displacement code (Approx. 18.0 ml/r).
1: Shaft type (Straight keyed).
CC: Port positions (Both outlets 90 degrees CCW from inlet).
22: Design sequence.
R: Rotation (Right hand/Clockwise).
Why Source From YHDE Hydraulics?
Direct Factory Source: We are a specialized manufacturer with 9+ years of expertise, offering competitive factory-direct pricing.
100% Performance Tested: Every 3520V unit undergoes a rigorous full-load pressure and flow test on our professional testing stands before shipment.
Global Logistics Support: We maintain a deep stock of 35V and 20V cartridge kits and components for immediate worldwide delivery.
OEM-Level Precision: We use high-grade materials and precision CNC machining to ensure our products match or exceed original Vickers specifications.
