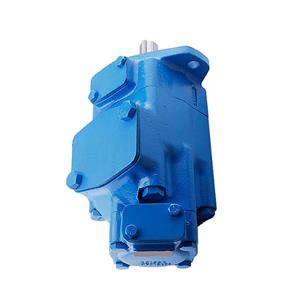

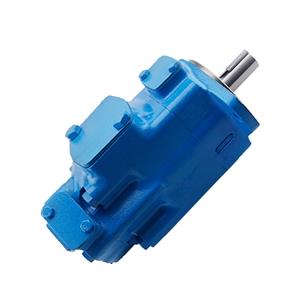

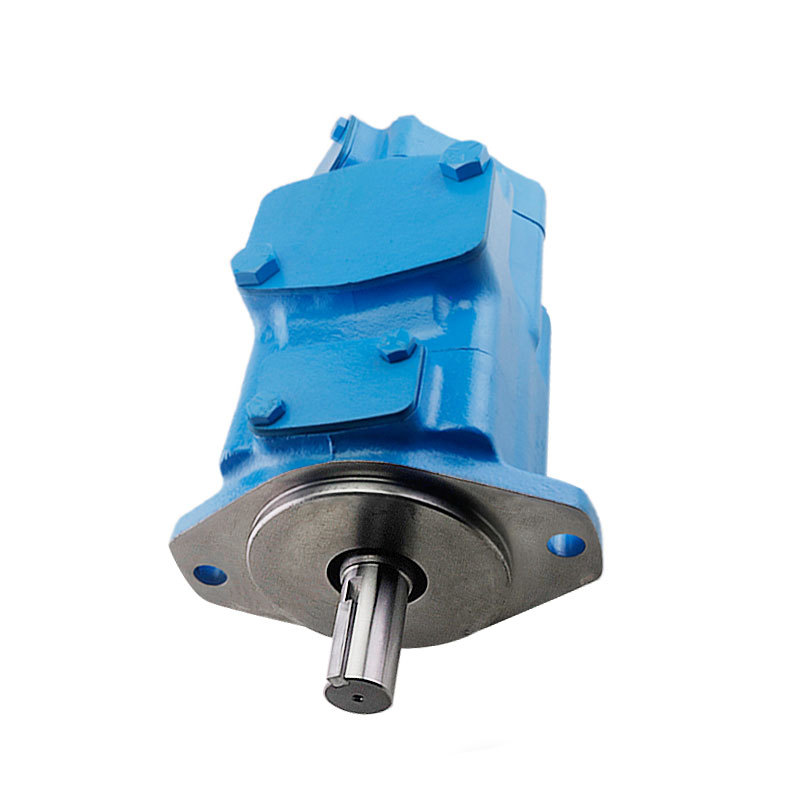

3520V-35A9-1CC22R Double Vane Pump | 100% Vickers Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance 3520V-35A9-1CC22R double hydraulic vane pump, 100% interchangeable with Vickers Eaton. Features an intra-vane design for high pressure and low noise. Factory-direct from YHDE with 9+ years of manufacturing expertise. Fast global shipping. Get a quote!
3520V-35A9-1CC22R Double Vane Pump | 100% Vickers Replacement | YHDE
Product Overview
The 3520V Series is a heavy-duty double fixed displacement vane pump engineered to deliver two independent flows from a single drive shaft. The 3520V-35A9-1CC22R model combines a 35 USgpm front section with a 9 USgpm rear section, offering high power density for complex hydraulic systems.
As a specialized manufacturer with over 9 years of expertise, YHDE produces the 3520V series to be 100% interchangeable with Vickers (Eaton) specifications. Our pumps are the ideal "drop-in" solution for industrial power units, plastic injection machines, and material handling equipment.
Core Features & Benefits
Intra-Vane Design Technology: Utilizes a "vane-in-vane" principle to reduce vane tip pressure against the cam ring, significantly extending the service life and allowing for higher operating speeds.
Independent Dual Flow: Provides two separate flow sources (35 USgpm and 9 USgpm) from one pump, simplifying hydraulic circuit design and reducing component costs.
Low Noise & Vibration: Precision-engineered internal geometry reduces pressure ripples, ensuring exceptionally quiet operation in indoor factory environments.
100% Interchangeability: Direct replacement for Vickers 3520V-35A9-1CC22R. Matches all original SAE mounting dimensions and port configurations.
Durable Construction: Manufactured with high-grade alloys and precision-finished surfaces to withstand high-pressure industrial cycles.
Technical Specifications
| Parameter | Specification |
| Model Code | 3520V-35A9-1CC22R |
| Compatibility | 100% Vickers Eaton V Series |
| Front Displacement (35) | 35 USgpm (at 1200 rpm, 0 psi) |
| Rear Displacement (9) | 9 USgpm (at 1200 rpm, 0 psi) |
| Max. Pressure | 175 bar (2500 PSI) |
| Mounting Standard | SAE 2-Bolt Flange |
| Shaft Type | Straight Keyed (1) |
| Rotation | Right Hand / Clockwise (R) |
Why Source From YHDE Hydraulics?
Direct Factory Source: We provide factory-direct pricing and specialized expertise in high-quality compatible hydraulic pumps.
100% Performance Tested: Every 3520V unit undergoes a rigorous full-load pressure and flow test on our professional testing stands before shipment.
Specialized Compatibility: We are experts in manufacturing high-quality compatible replacements for Vickers, Denison, Yuken, and Tokimec.
Fast Global Logistics: Large inventory of 3520V cartridge kits and components ensures rapid response to your maintenance needs.
