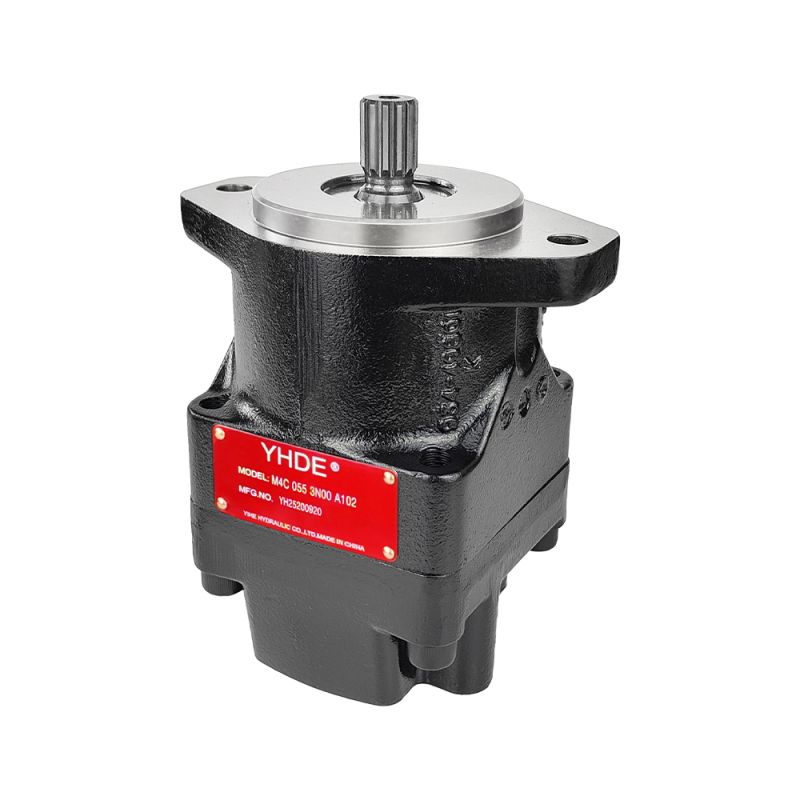

M4C-027-1N00-A102 Vane Motor | 100% Denison Parker Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance M4C-027-1N00-A102 hydraulic vane motor. 100% interchangeable with Denison Parker. Factory-direct from YHDE with 9+ years of manufacturing expertise. High speed, high torque, and 100% performance tested. Request a quote!
M4C-027-1N00-A102 Vane Motor | 100% Denison Parker Replacement | YHDE
Product Overview
The M4C series is a high-performance, fixed displacement vane motor specifically designed for high-pressure industrial and mobile applications. The M4C-027-1N00-A102 model is known for its high volumetric efficiency and exceptional torque capability, even at low speeds. It is an ideal power source for winch drives, swing drives, and heavy-duty conveyor systems.
As a specialized manufacturer with over 9 years of expertise, YHDE (Yihe Hydraulic) produces the M4C series to be 100% interchangeable with Denison (Parker) standards. Our motors are perfect "drop-in" replacements, ensuring no modifications are needed to your existing hydraulic circuits or mounting flanges.
Core Features & Benefits
High-Pressure Performance: Engineered to operate reliably at continuous high pressures, providing consistent power output for demanding tasks.
Balanced Internal Design: The hydraulically balanced vanes reduce side loads on the rotor and shaft, significantly extending the service life of the motor.
100% Interchangeability: Directly replaces Denison M4C-027-1N00-A102 with exact SAE B mounting and porting dimensions.
Low Noise & Vibration: Precision-machined internal components ensure quiet operation, matching original OEM noise profiles.
Bi-directional Rotation: Designed to provide equal performance in both clockwise and counter-clockwise directions.
Technical Parameters
| Parameter | Specification |
| Model Code | M4C-027-1N00-A102 |
| Compatibility | 100% Denison Parker M4C Series |
| Displacement (027) | 87.4 ml/r |
| Maximum Pressure | 230 bar (3335 PSI) |
| Maximum Speed | 3600 rpm |
| Theoretical Torque | 1.39 Nm/bar |
| Mounting Standard | SAE B 2-Bolt Flange |
| Shaft Type (1) | Straight Keyed (Standard) |
| Seal Class (N) | Nitrile (Standard) |
Why Source From YHDE Hydraulics?
Direct Factory Manufacturer: Based in Foshan, we offer competitive factory-direct pricing by cutting out intermediaries.
9+ Years of Specialized Expertise: Deep technical knowledge in the manufacturing and engineering of compatible hydraulic vane motors.
100% Performance Tested: Every M4C-027 unit is subjected to a rigorous full-load pressure and speed test on our professional testing stands before shipment.
2026 Commitment: We are dedicated to delivering the world's most reliable and cost-effective hydraulic solutions in 2026.
