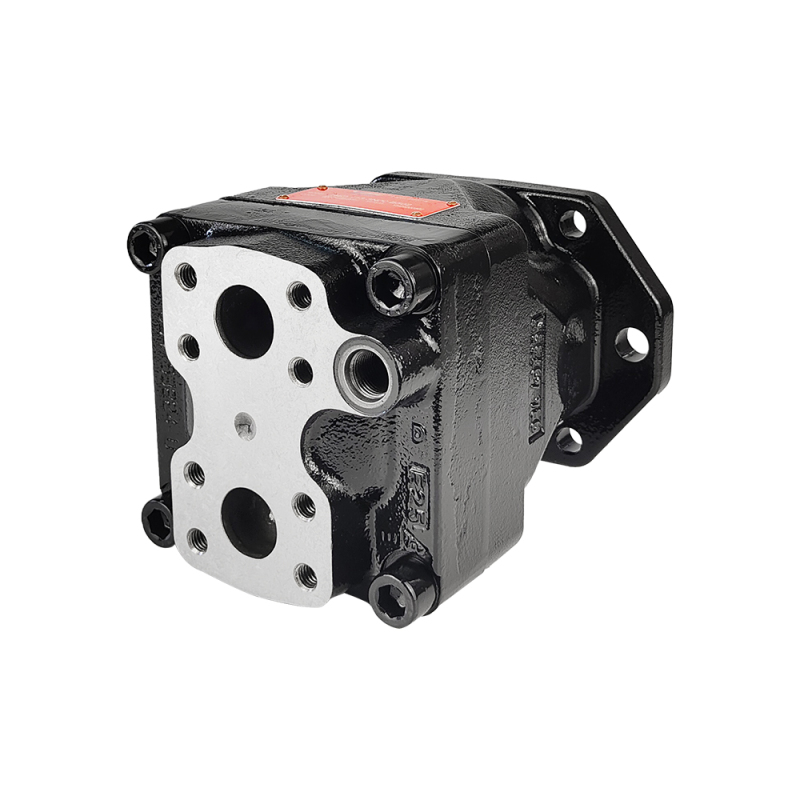

M4D-113-3N00-B502 Vane Motor | 100% Denison Parker Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
Heavy-duty M4D-113-3N00-B502 hydraulic vane motor. 100% interchangeable with Denison Parker. Factory-direct from YHDE with 9+ years of expertise. High-torque efficiency and 100% performance tested for zero-leakage reliability. Request a quote!
M4D-113-3N00-B502 Vane Motor | 100% Denison Parker Replacement | YHDE
Product Overview: The Ultimate Solution for High-Torque Performance
If your heavy machinery (such as winches, swing drives, or large conveyors) is experiencing power loss or downtime due to worn-out original motors, the M4D-113-3N00-B502 is your most cost-effective and reliable solution. At YHDE, we don't just provide parameters; we provide an engineering-grade 100% drop-in replacement that matches the original Denison Parker performance curves in every dimension.
Why Choose YHDE M4D Series Over Standard Alternatives?
Eliminate Installation Hassles: Our 100% interchangeable design means no modifications to your existing piping or SAE mounting are required.
Superior Torque Density: The 113 displacement cam ring is precision-ground in our Foshan factory to ensure maximum starting torque even under extreme loads.
Extended Service Life: We utilize a hydraulically balanced design that reduces internal side-loading, significantly extending the life of the bearings and cam ring compared to lower-quality "copy" motors.
Verified Reliability: Every M4D-113 unit undergoes a full-load performance and pressure test on our professional testing stands before shipment, ensuring it arrives ready for work.
Technical Parameters
| Parameter | Specification |
| Model Code | M4D-113-3N00-B502 |
| Compatibility | 100% Denison Parker M4D Series |
| Displacement | 113.1 ml/rev |
| Maximum Pressure | 175 bar (2500 PSI) |
| Maximum Speed | 2500 rpm |
| Theoretical Torque | 1.80 Nm/bar |
| Mounting Standard | SAE 4-Bolt Flange |
| Shaft Type (3) | High-Strength Splined Shaft |
| Rotation | Bi-Directional (Reversible) |
Internal Technical Resources
To better understand how these parameters affect your machine's overall efficiency, we recommend reading our technical guide on [Understanding Vane Pump & Motor Performance Parameters]. This will help you verify if the M4D-113 is the optimal choice for your energy-saving goals in 2026.
The YHDE Direct Advantage
Direct Factory Source: Located in the manufacturing hub of Foshan, we eliminate middleman markups for your maintenance budget.
9+ Years of Expertise: We specialize in the high-precision manufacturing of compatible hydraulic components for global brands.
Global Fast Delivery: We maintain a deep stock of M4D cartridge kits and shafts to ensure 24-hour dispatch for urgent machine-down situations.
