Product Overview

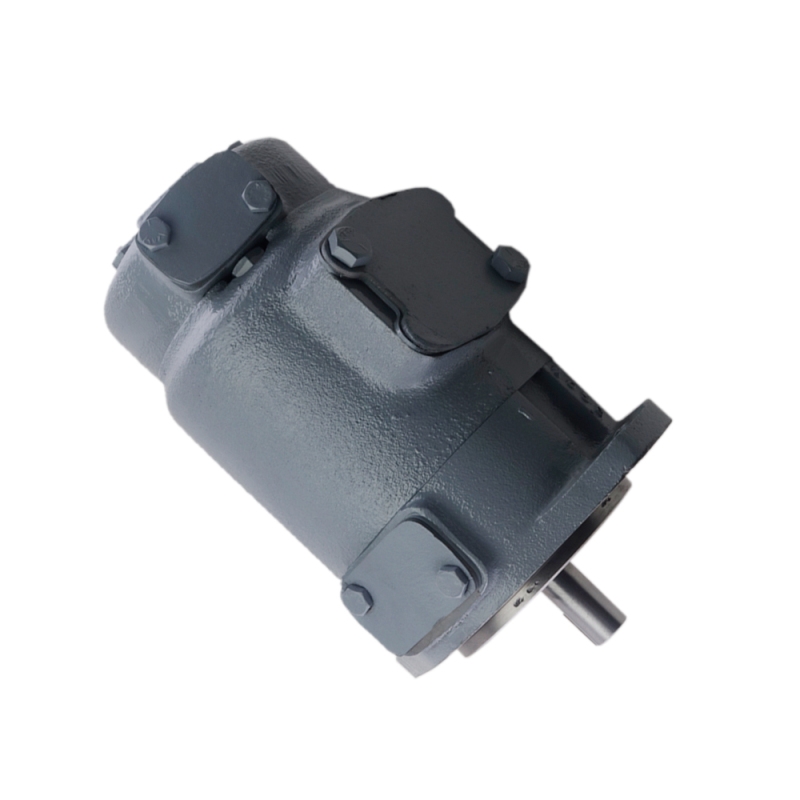

The SQP21 Series is a specialized double fixed displacement vane pump engineered for applications requiring high reliability and exceptionally low noise levels. By combining a Frame 2 section with a Frame 1 section, the SQP21-19-12-86AA provides two independent flow sources from a single drive shaft, making it a space-saving powerhouse for industrial automation.
As a specialized manufacturer with over 9 years of expertise, YHDE (Yihe Hydraulic) produces the SQP series to be 100% interchangeable with Tokimec (Tokyo Keiki) standards. Our pumps serve as perfect "drop-in" replacements, matching all original performance curves and mounting dimensions.
Core Features & Benefits
Ultra-Low Noise Technology: Designed with advanced pulse-reduction geometry, making it ideal for indoor factory environments where noise control is critical.
Dual-Circuit Efficiency: Delivers two distinct flows (19 GPM and 12 GPM) to power multiple hydraulic functions simultaneously from one motor.
100% Interchangeability: Direct replacement for Tokimec SQP21-19-12-86AA. No modifications to piping or SAE mounting are required.
High Volumetric Efficiency: Precision-machined internal components ensure maximum flow output and reduced energy consumption.
Field-Replaceable Cartridges: The internal SQP2 and SQP1 cartridge kits can be replaced easily, minimizing maintenance downtime.
Technical Specifications
| Parameter | Specification (P1 / P2) |
| Model Code | SQP21-19-12-86AA |
| Compatibility | 100% Tokimec Tokyo Keiki SQP Series |
| P1 Displacement (19) | 19 USgpm (at 1200 rpm) |
| P2 Displacement (12) | 12 USgpm (at 1200 rpm) |
| Max. Pressure | 175 bar (2500 PSI) |
| Mounting Standard | SAE B 2-Bolt Flange |
| Shaft Type (86) | Straight Keyed |
| Port Configuration (AA) | All ports opposite each other |
| Rotation | Right Hand (Clockwise) |
Why Source From YHDE Hydraulics?
Direct Factory Source: Benefit from factory-direct pricing and technical support from our facility in Foshan.
Professional Testing: Every SQP21 unit undergoes a rigorous full-load pressure and flow test on our professional testing stands before shipment.
9+ Years Expertise: We focus exclusively on high-quality compatible vane pumps for major global brands.
2026 Commitment: We are dedicated to providing the most cost-effective, high-performance hydraulic solutions for the global market.
