SQP431-60-21-2-86CCC-18 Triple Vane Pump | Tokimec Vickers Compatible | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance SQP431-60-21-2-86CCC-18 triple vane pump. 100% interchangeable with Tokimec and Vickers SQP series. Features ultra-low noise and 3 independent circuits. Factory-direct from YHDE Foshan with 9+ years of expertise. Request a quote!
SQP431-60-21-2-86CCC-18 Triple Vane Pump | Tokimec Vickers Compatible | YHDE
Product Overview: Precision Multi-Circuit Power Solution
Facing complex hydraulic requirements with multiple actuators? The SQP431-60-21-2-86CCC-18 triple vane pump is the definitive choice for high-flow industrial systems. It provides three independent flow sources from a single drive shaft, allowing you to power primary movement, secondary auxiliary functions, and precision control circuits simultaneously.
At YHDE, we leverage over 9 years of specialized manufacturing experience in our Foshan facility to produce 100% "drop-in" replacements for original Tokimec and Vickers units. Our SQP431 series matches every mounting dimension and performance curve, ensuring you can restore your machinery to peak performance without expensive system modifications.

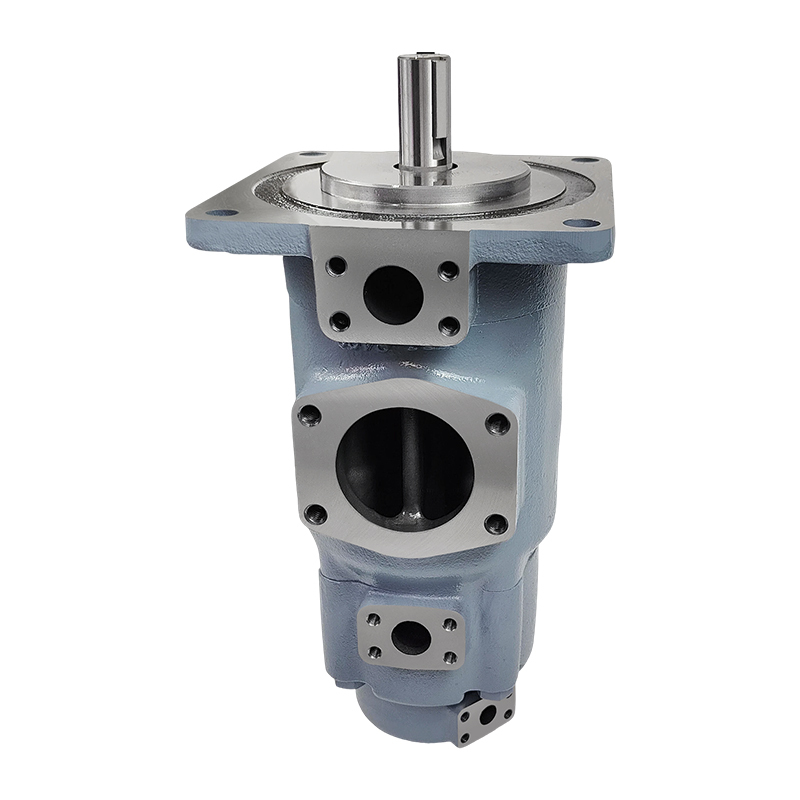

[Image Suggestion: A clear photo of the SQP431 triple pump highlighting the three discharge ports and the SAE C flange]
Why Choose YHDE's SQP Triple Series?
100% Interchangeable: Matches original Tokimec (Tokyo Keiki) and Vickers SQP dimensions and flow rates exactly.
Ultra-Low Noise Technology: Designed for modern factory environments, ensuring quiet operation even under full-load conditions across all three stages.
Rigorous Triple-Stage Testing: Every SQP431 unit undergoes a comprehensive performance test in our factory. Each of the three pump sections is verified independently for volumetric efficiency and pressure stability.
Durable Cartridge Design: Each section utilizes a modular cartridge kit, making future maintenance fast and cost-effective without replacing the entire pump housing.
Foshan Factory Direct: By sourcing directly from YHDE, you eliminate middleman markups and gain access to expert technical support for your 2026 production goals.
Technical Parameters
| Parameter | Specification (P1 / P2 / P3) |
| Model Code | SQP431-60-21-2-86CCC-18 |
| Interchangeability | 100% Tokimec / Vickers SQP Series |
| P1 Flow Rate (60) | 193.0 ml/r (approx. 60 GPM at 1200 rpm) |
| P2 Flow Rate (21) | 67.0 ml/r (approx. 21 GPM at 1200 rpm) |
| P3 Flow Rate (2) | 7.0 ml/r (approx. 2 GPM at 1200 rpm) |
| Max. Pressure | 175 bar (2500 PSI) |
| Max. Speed | 1800 rpm |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type (86) | Straight Keyed Shaft |
| Rotation | Right Hand (Clockwise) |
The YHDE Advantage
As we work toward our 2026 goal of providing world-class compatible hydraulic components, we prioritize technical accuracy. Sourcing from our Foshan facility ensures rapid shipping and the peace of mind that comes with a 100% performance guarantee on every triple pump configuration.
Technical Support: Learn more about optimizing multi-pump systems in our
Vane Pump Performance Parameters Guide .
