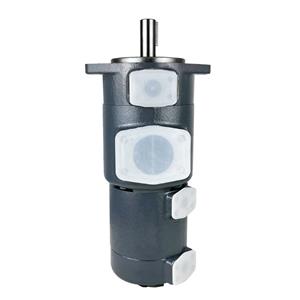

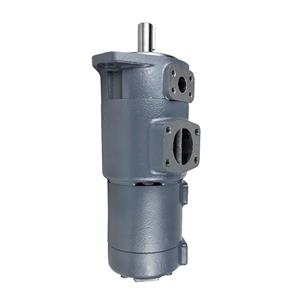

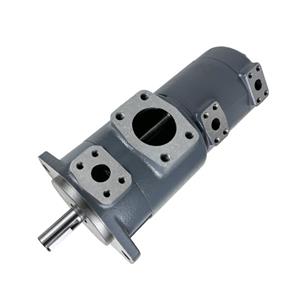

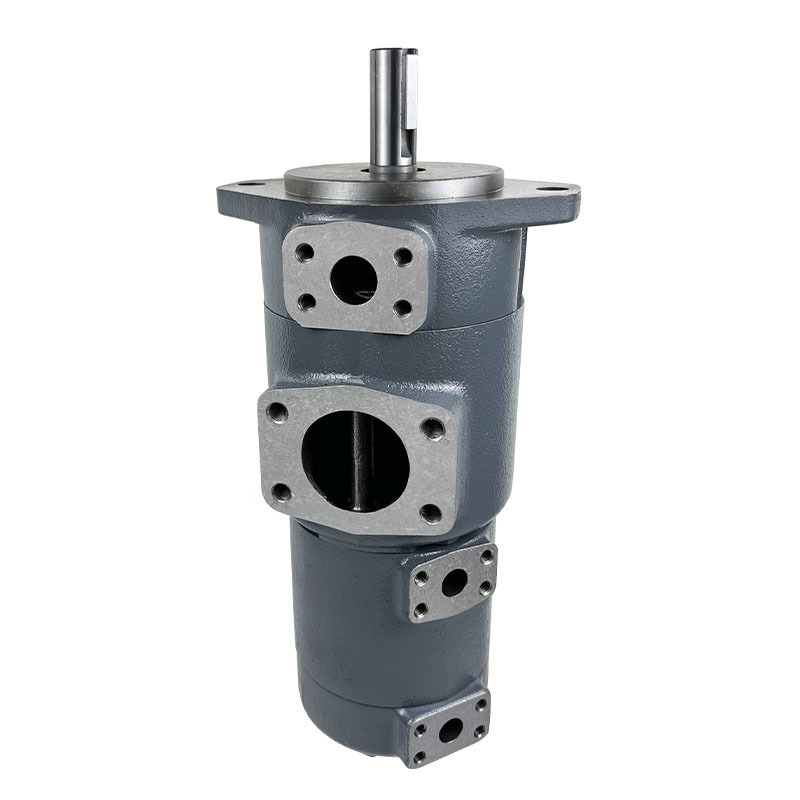

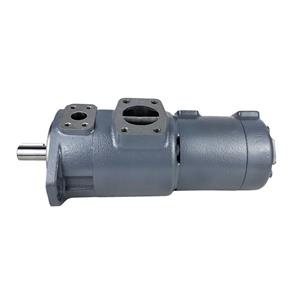

SQP211-21-12-8 Triple Vane Pump | 100% Tokimec Replacement | YHDE
Brand: YiHe
Product origin: China
Delivery time: 10-30days
Supply capacity: 300pcs/day
Premium SQP211-21-12-8 triple hydraulic vane pump, 100% interchangeable with Tokimec. Ultra-low noise design for injection molding & construction machinery. Factory-direct from YHDE with 9+ years of expertise. Fast shipping & 100% tested. Request a quote!
SQP211-21-12-8 Triple Vane Pump | 100% Tokimec Replacement | YHDE
Product Overview
The SQP211 Series is a sophisticated triple fixed displacement vane pump engineered specifically for low-noise industrial environments. By integrating three independent pumping sections into a single housing, it provides versatile flow control while significantly reducing the installation footprint.
As a leading manufacturer with over 9 years of professional expertise, YHDE produces the SQP211-21-12-8 to be 100% interchangeable with Tokimec (Tokyo Keiki) specifications. Our pumps are the preferred choice for injection molding machines and heavy-duty construction equipment requiring stable, quiet hydraulic power.
Core Features & Benefits
Ultra-Low Noise Operation: The SQP series is world-renowned for its quiet performance, making it ideal for indoor factory settings where noise reduction is a priority.
Triple-Flow Versatility: Combines three independent cartridges (Size 2 + Size 1 + Size 1) to power multiple hydraulic circuits from a single drive shaft.
High Volumetric Efficiency: Precision-machined internal components minimize leakage and heat generation, optimizing energy consumption.
100% Interchangeability: Direct "drop-in" replacement for Tokimec SQP211 series. Matches all standard mounting dimensions and port configurations.
Extended Service Life: Built with high-grade alloys and treated for maximum wear resistance to withstand continuous industrial cycles.
Technical Specifications
| Parameter | Specification (Section 1 / 2 / 3) |
| Model Code | SQP211-21-12-8-86ACD2-18 |
| Compatibility | 100% Tokimec / Vickers Replacement |
| Displacement 1 | 21 USgpm (at 1200 rpm) |
| Displacement 2 | 12 USgpm (at 1200 rpm) |
| Displacement 3 | 8 USgpm (at 1200 rpm) |
| Max. Pressure | 175 Bar (2500 PSI) |
| Mounting | SAE Standard |
Detailed Model Code Analysis
SQP211: Triple Pump Series (Pump 1 + Pump 2 + Pump 3).
21-12-8: Displacement codes for the three independent sections.
86: Mounting and Shaft configuration.
ACD: Port orientation and alignment.
18: Design sequence.
Why Source From YHDE Hydraulics?
9+ Years of Manufacturing Expertise: We specialize in high-quality compatible replacements for Vickers, Denison, Yuken, and Tokimec.
Factory Direct Pricing: Eliminate middlemen and get OEM-level performance directly from our specialized production line.
100% Performance Tested: Every SQP211 triple pump undergoes rigorous pressure and flow testing on our professional stands before shipment.
Global Fast Shipping: We maintain a deep inventory of SQP series components to ensure rapid assembly and minimal lead times.
