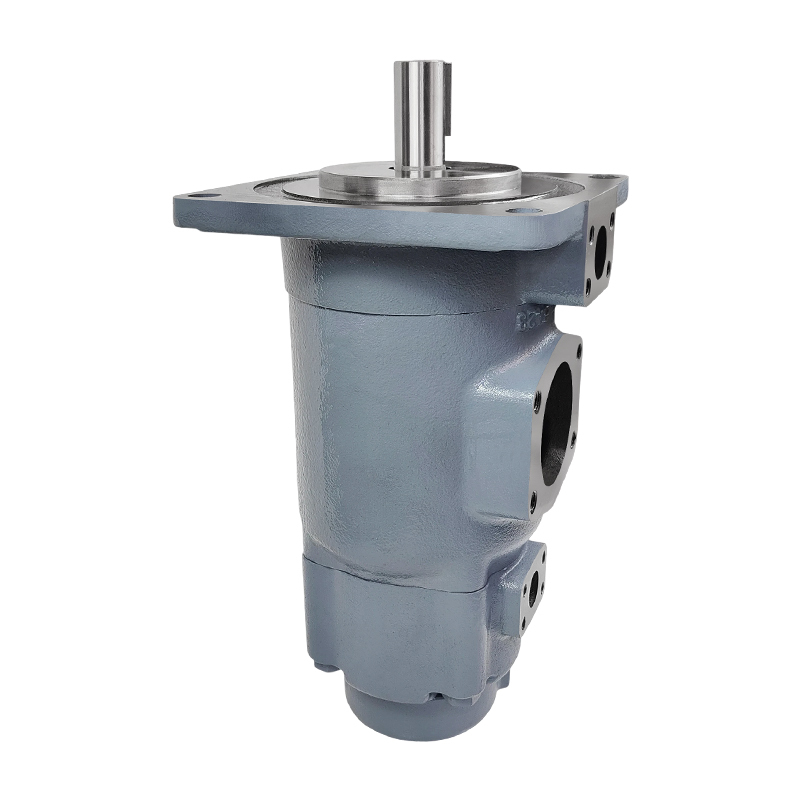

SQP431-42-21-2-86CCC-18 Triple Vane Pump | Tokimec Vickers Compatible | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance SQP431-42-21-2 triple hydraulic vane pump. 100% interchangeable with Tokimec and Vickers. Factory-direct from YHDE Foshan with 9+ years of expertise. 100% load tested to ensure zero cross-circuit interference. Request a quote!
SQP431-42-21-2-86CCC-18 Triple Vane Pump | Tokimec Vickers Compatible | YHDE
Product Overview: Optimized Power for Complex Hydraulic Systems
In high-precision industrial applications, managing three independent circuits efficiently is a massive engineering task. The SQP431-42-21-2-86CCC-18 triple vane pump is specifically engineered to provide three distinct flow sources from a single drive shaft, reducing space requirements and motor costs.
At YHDE, we leverage over 9 years of specialized manufacturing experience in our Foshan facility to deliver 100% "drop-in" replacements for Tokimec and Vickers units. We don't just supply a pump; we provide a high-reliability component that ensures your heavy-duty machinery maintains its precision and speed under continuous 24/7 operation.
Why Choose YHDE's SQP Triple Series?
Super Quiet Performance: Designed with advanced pulse-reduction internal geometry to maintain a quiet workshop environment, even when all three pump sections are under full load.
100% Mounting Interchangeability: Matches all original SAE C mounting dimensions. No modifications to your existing piping or electrical motor setup are needed.
Rigorous Triple-Stage Testing: Every SQP431 unit we produce undergoes a comprehensive performance test. We verify the volumetric efficiency and pressure holding of the P1, P2, and P3 sections independently to ensure zero internal cross-leakage.
Modular Cartridge Design: Each section uses an independent cartridge kit. This allows for rapid maintenance—if one section wears out, you can replace the cartridge kit without scrapping the entire pump.
Technical Parameters
| Parameter | Specification (P1 / P2 / P3) |
| Model Code | SQP431-42-21-2-86CCC-18 |
| Compatibility | 100% Tokimec / Vickers SQP Series |
| P1 Displacement (42) | 136 ml/r (42 USgpm @ 1200 rpm) |
| P2 Displacement (21) | 67 ml/r (21 USgpm @ 1200 rpm) |
| P3 Displacement (2) | 7.5 ml/r (2 USgpm @ 1200 rpm) |
| Max. Pressure | 172 bar (2500 PSI) |
| Max. Speed | 1800 rpm |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type (86) | Straight Keyed Shaft |
| Rotation | Right Hand (Clockwise) |
The YHDE Advantage for 2026
As we pursue our 2026 goal of becoming the global leader in high-performance compatible vane pumps, we prioritize factory-direct technical certainty. By sourcing from our Foshan facility, you eliminate middleman markups while gaining 1-on-1 support for your complex multi-circuit hydraulic configurations.
Technical Insights: Learn how to calculate the efficiency for your multi-pump setup in our
Vane Pump Performance Parameters Guide .
