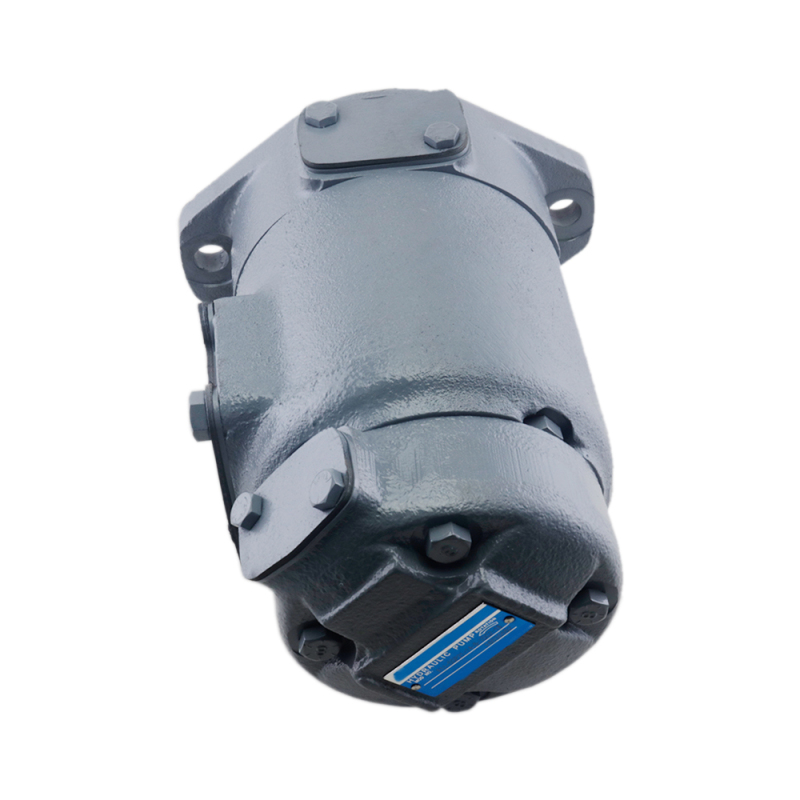

SQP21-19-5-86AA Double Vane Pump | 100% Tokimec Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
Premium SQP21-19-5-86AA double hydraulic vane pump (19GPM + 5GPM). 100% interchangeable with Tokimec Tokyo Keiki. Factory-direct from YHDE with 9+ years of manufacturing expertise. Low noise, high efficiency, and 100% performance tested.
SQP21-19-5-86AA Double Vane Pump | 100% Tokimec Replacement | YHDE
Product Overview
The SQP21 Series is a high-performance double fixed displacement vane pump designed for industrial applications that require multiple flow sources and ultra-low noise operation. The SQP21-19-5-86AA configuration integrates a Frame 2 front section and a Frame 1 rear section into a single housing, providing an efficient "2-in-1" power solution.
As a specialized manufacturer with over 9 years of expertise, YHDE produces the SQP series to be 100% interchangeable with Tokimec (Tokyo Keiki) standards. Our pumps serve as perfect "drop-in" replacements, matching all original performance curves and mounting dimensions.
Core Features & Benefits
Ultra-Low Noise Technology: Specifically engineered for indoor factory environments, the SQP series is known as the "Super Quiet Pump" for its minimal pressure ripples.
Compact Double Configuration: Drives two independent circuits from a single shaft, saving installation space and reducing the number of required motors.
100% Interchangeability: Direct replacement for Tokimec SQP21-19-5-86AA. No modifications to piping or SAE mounting are required.
High Volumetric Efficiency: Precision-machined internal parts ensure stable hydraulic power and low heat generation.
Rapid Maintenance: Features a modular cartridge design, allowing for quick on-site replacement of internal parts to minimize downtime.
Technical Specifications (Plain Text)
| Parameter | Specification (P1 / P2) |
| Model Code | SQP21-19-5-86AA |
| Compatibility | 100% Tokimec Tokyo Keiki SQP Series |
| Front Displacement (P1) | 19 USgpm (approx. 60.0 ml/r) |
| Rear Displacement (P2) | 5 USgpm (approx. 17.2 ml/r) |
| Max. Pressure | 175 bar (2500 PSI) |
| Max. Speed | 1800 rpm |
| Mounting Standard | SAE B 2-Bolt Flange |
| Shaft Type (86) | Straight Keyed |
| Port Configuration (AA) | Standard Suction/Discharge Alignment |
Why Source From YHDE Hydraulics?
Direct Factory Source: Benefit from factory-direct pricing and technical support from our facility in Foshan.
9+ Years of Specialized Manufacturing: We focus exclusively on high-quality compatible vane pumps for global brands.
100% Performance Tested: Every SQP21 unit undergoes a rigorous full-load pressure and flow test on our professional testing stands before shipment.
2026 Commitment: We are dedicated to providing the global hydraulic market with cost-effective, high-performance alternatives that ensure long-term system reliability.
