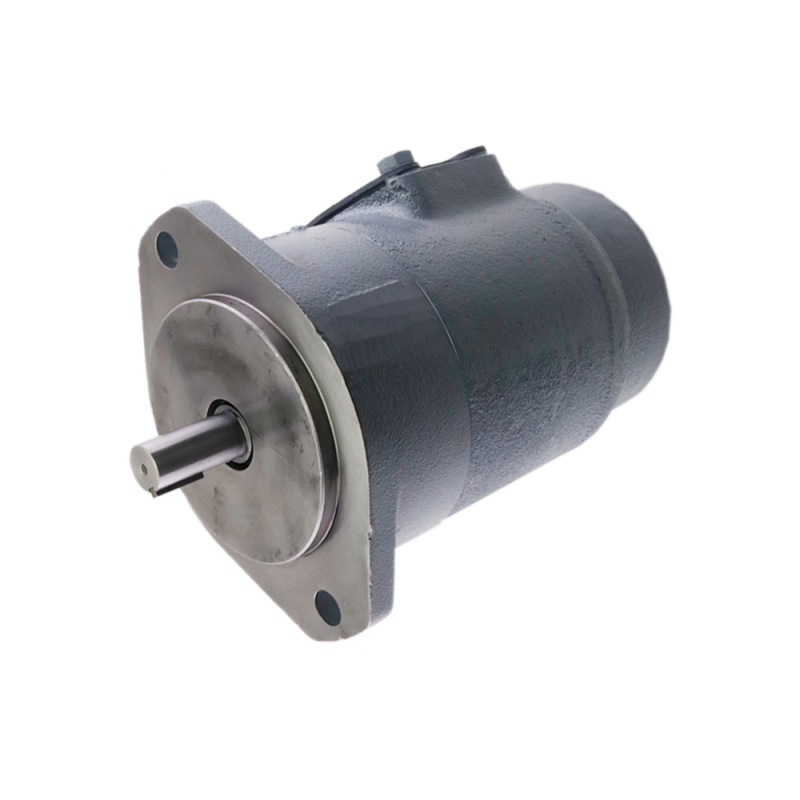

SQP21-19-8-86AA Double Vane Pump | Tokimec Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance SQP21-19-8-86AA double hydraulic vane pump (19GPM + 8GPM). 100% interchangeable with Tokimec Tokyo Keiki. Factory-direct from YHDE with 9+ years of manufacturing expertise. Low noise, 100% performance tested. Get a quote!
SQP21-19-8-86AA Double Vane Pump | Tokimec Replacement | YHDE
Product Overview
The SQP21 Series is a high-efficiency double fixed displacement vane pump designed for industrial applications requiring two independent flow sources from a single drive shaft. The SQP21-19-8-86AA model is widely used in plastic injection molding, machine tools, and pressure die-casting equipment due to its "Super Quiet" operational characteristics.
As a specialized manufacturer with over 9 years of expertise, YHDE (Yihe Hydraulic) produces the SQP series to be 100% interchangeable with Tokimec (Tokyo Keiki) standards. Our pumps serve as perfect "drop-in" replacements, matching all original performance curves and mounting dimensions.
Core Features & Benefits
Ultra-Low Noise Operation: Specifically engineered for indoor factory environments where minimizing decibel levels is a priority.
Dual Circuit Versatility: Powers two separate hydraulic functions simultaneously, reducing the need for multiple motors and couplings.
100% Interchangeability: Direct replacement for Tokimec SQP21-19-8-86AA. No modifications to existing piping or SAE mounting are required.
Proven Durability: Built with high-strength materials to ensure a long service life under continuous industrial duty cycles.
Modular Maintenance: Internal cartridge kits can be replaced quickly on-site, drastically reducing machine downtime.
Technical Specifications
| Parameter | Specification (Front P1 / Rear P2) |
| Model Code | SQP21-19-8-86AA |
| Compatibility | 100% Tokimec Tokyo Keiki SQP Series |
| Front Displacement (19) | 19 USgpm (at 1200 rpm) |
| Rear Displacement (8) | 8 USgpm (at 1200 rpm) |
| Max. Pressure | 175 bar (2500 PSI) |
| Max. Speed | 1800 rpm |
| Mounting Standard | SAE B 2-Bolt Flange |
| Shaft Type (86) | Straight Keyed |
| Port Configuration (AA) | Discharge ports opposite to suction |
Why Source From YHDE Hydraulics?
Direct Factory Manufacturer: Located in Foshan, we offer competitive factory-direct pricing and direct technical support.
9+ Years of Specialized Expertise: Focused exclusively on high-quality compatible vane pumps and cartridge kits.
100% Performance Tested: Every SQP21 unit undergoes a rigorous full-load pressure and flow test on our professional testing stands before shipment.
Global Fast Delivery: We maintain a deep stock of SQP cartridge kits to ensure rapid response to urgent replacement needs.
