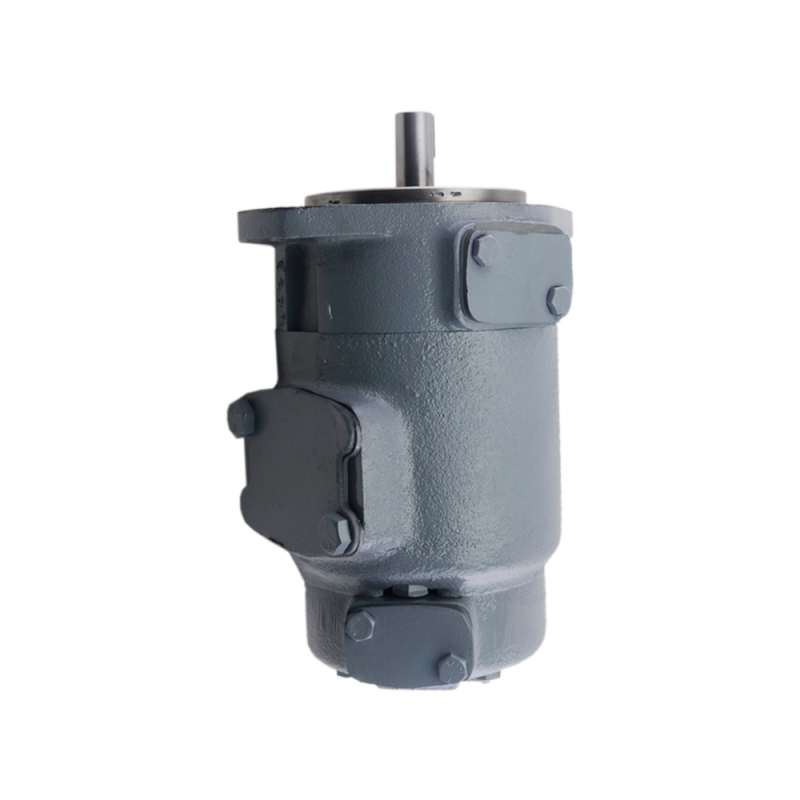

SQP21-19-9-86AA Double Vane Pump | Tokimec Tokyo Keiki Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
Premium SQP21-19-9-86AA double hydraulic vane pump (19GPM + 9GPM). 100% interchangeable with Tokimec Tokyo Keiki SQP series. Factory-direct from YHDE with 9+ years of manufacturing expertise. Ultra-low noise, high efficiency, and 100% performance tested. Request a quote!
SQP21-19-9-86AA Double Vane Pump | Tokimec Tokyo Keiki Replacement | YHDE
Product Overview
The SQP21 Series is a high-performance double fixed displacement vane pump designed specifically for low-noise industrial environments. The SQP21-19-9-86AA model combines a Frame 2 front section with a Frame 1 rear section, allowing for dual independent flow circuits from a single drive shaft.
As a specialized manufacturer with 9+ years of expertise, YHDE produces the SQP series to be 100% interchangeable with original Tokimec (Tokyo Keiki) specifications. Our pumps are ideal "drop-in" replacements for machine tools, injection molding machines, and industrial power units.
Core Features
Ultra-Low Noise: Engineered with pulse-reduction technology to ensure quiet operation in indoor factory settings.
100% Interchangeability: Direct replacement for Tokimec SQP21-19-9-86AA. No modifications to piping or SAE mounting are required.
High Durability: Built with high-strength materials and precision-finished components to withstand continuous industrial duty cycles.
100% Performance Tested: Every unit undergoes a rigorous full-load pressure and flow test at our professional testing center before shipment.
Technical Parameters
| Parameter | Specification (Front Section / Rear Section) |
| Model Code | SQP21-19-9-86AA |
| Compatible Brand | Tokimec / Tokyo Keiki |
| Front Displacement (19) | 60.0 ml/r (approx. 19 USgpm at 1200 rpm) |
| Rear Displacement (9) | 30.0 ml/r (approx. 9 USgpm at 1200 rpm) |
| Max. Pressure | 175 bar (2500 PSI) |
| Max. Speed | 1800 rpm |
| Mounting Standard | SAE B 2-Bolt Flange |
| Shaft Type (86) | Straight Keyed |
| Port Configuration (AA) | Discharge ports opposite inlet / 90 degrees CCW |
Why Source From YHDE?
Direct Factory Source: Benefit from factory-direct pricing and technical support from our facility in Foshan.
9+ Years of Industry Experience: We focus exclusively on high-quality, compatible hydraulic vane pumps for global brands.
Fast Global Delivery: We maintain a deep stock of SQP cartridge kits to ensure rapid assembly and shipping, minimizing your machine downtime.
