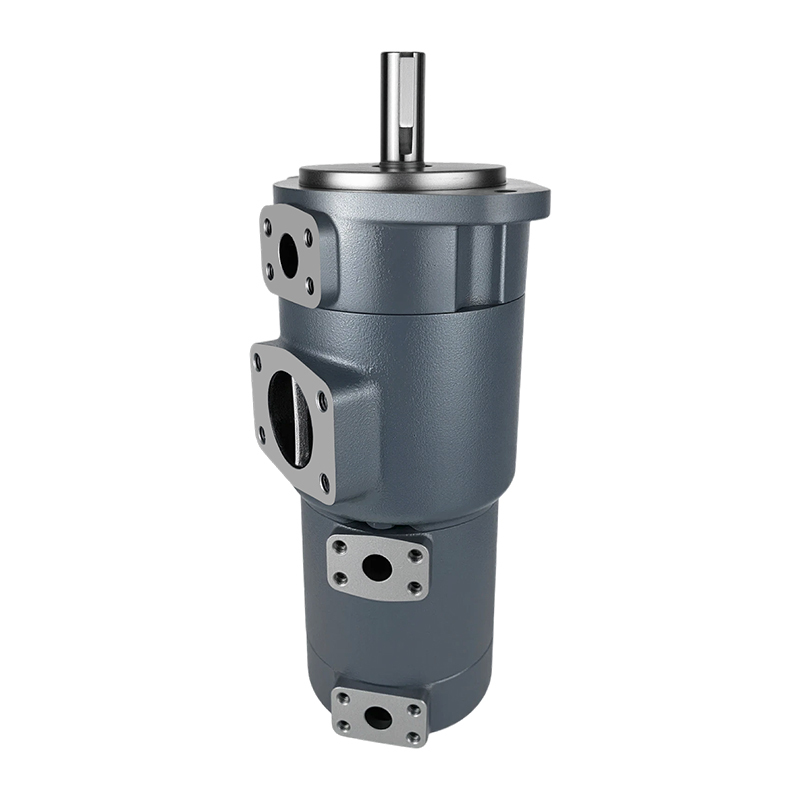

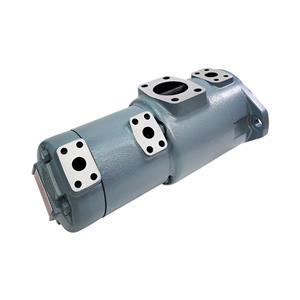

SQP211-19-3-2-86CCC2-18 Triple Vane Pump | 100% Tokimec Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-precision SQP211-19-3-2-86CCC2-18 triple hydraulic vane pump (19/3/2 GPM). 100% interchangeable with Tokimec Tokyo Keiki. Ultra-low noise, factory-direct from YHDE with 9+ years of expertise. 100% performance tested. Get a technical quote today!
SQP211-19-3-2-86CCC2-18 Triple Vane Pump | 100% Tokimec Replacement | YHDE
Product Overview
The SQP211 Series is a sophisticated triple fixed displacement vane pump engineered for multi-circuit hydraulic systems requiring different flow rates from a single drive source. The SQP211-19-3-2-86CCC2-18 model integrates three independent pump sections (Frame 2 + Frame 1 + Frame 1) into a single compact housing, significantly reducing installation space and complexity.
As a specialized manufacturer based in Foshan with 9+ years of expertise, YHDE produces the SQP series to be 100% interchangeable with Tokimec (Tokyo Keiki) specifications. This triple pump is an ideal "drop-in" solution for high-end machine tools and precision industrial automation.
Core Features & Benefits
Ultra-Low Noise Operation: Specifically designed for indoor factory environments, the SQP series features an optimized internal structure that minimizes pressure ripples and vibration.
Multi-Circuit Versatility: Provides three independent flow outlets (19 GPM, 3 GPM, and 2 GPM), allowing for the synchronization of multiple hydraulic functions from one motor.
100% Interchangeability: Direct replacement for Tokimec SQP211-19-3-2-86CCC2-18. Matches all original mounting dimensions, port configurations, and performance curves.
High Volumetric Efficiency: Precision-machined internal components ensure maximum flow output and minimal energy loss.
Durable Triple-Section Design: Manufactured with high-grade materials to handle continuous industrial duty cycles while maintaining consistent performance.
Technical Specifications
| Parameter | Specification (P1 / P2 / P3) |
| Model Code | SQP211-19-3-2-86CCC2-18 |
| Compatibility | 100% Tokimec SQP Series |
| P1 Displacement (19) | 19 USgpm (at 1200 rpm) |
| P2 Displacement (3) | 3 USgpm (at 1200 rpm) |
| P3 Displacement (2) | 2 USgpm (at 1200 rpm) |
| Mounting Standard | SAE B 2-Bolt Flange |
| Shaft Type (86) | Heavy-Duty Straight Keyed |
| Rotation | Right Hand / Clockwise |
Why Source From YHDE Hydraulics?
Direct Factory Manufacturer: Benefit from factory-direct pricing and 9+ years of dedicated manufacturing experience.
100% Performance Tested: Every SQP211 triple pump undergoes a rigorous full-load pressure and flow test in our professional testing center before shipping.
Global Compatibility: Our products are engineered to provide seamless replacements for Tokimec, Vickers, Denison, and Yuken.
Deep Inventory: We maintain a comprehensive stock of SQP series cartridge kits to ensure rapid delivery and minimal machine downtime.
