SQP211-19-5-2-86CCC2-18 Triple Vane Pump | 100% Tokimec Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance SQP211-19-5-2-86CCC2-18 triple hydraulic vane pump. 100% interchangeable with Tokimec (Tokyo Keiki). Features low-noise operation and three-circuit power delivery. Factory-direct from YHDE with 9+ years of manufacturing expertise. Reliable and 100% performance tested. Get a quote!
SQP211-19-5-2-86CCC2-18 Triple Vane Pump | 100% Tokimec Replacement | YHDE
Product Overview

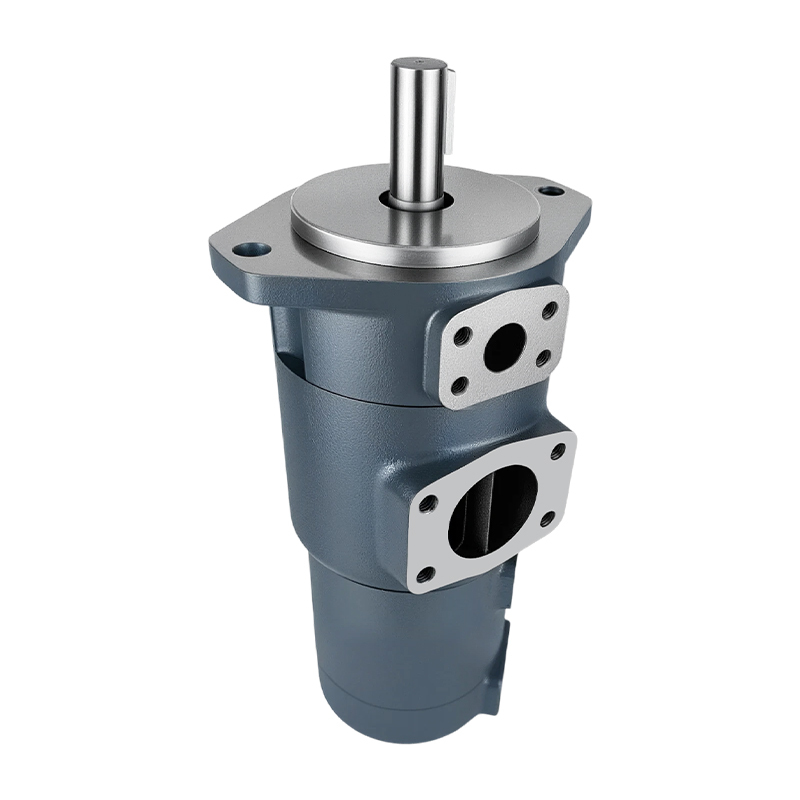

The SQP211 Series is a high-efficiency triple fixed displacement vane pump designed for systems that demand multiple flow sources with minimal noise and vibration. The SQP211-19-5-2-86CCC2-18 model provides three independent hydraulic outputs (19GPM, 5GPM, and 2GPM) from one compact unit, significantly reducing the space and cost required for multiple individual pumps.
As a specialized manufacturer with over 9 years of expertise, YHDE produces the SQP triple series to be 100% interchangeable with Tokimec (Tokyo Keiki) standards. This pump is an excellent "drop-in" replacement for high-precision machine tools, plastic processing equipment, and multi-functional industrial power units.
Core Features & Benefits
Triple-Circuit Efficiency: Delivers three independent flows from a single drive shaft, optimizing power density and simplifying system plumbing.
Ultra-Low Noise Technology: Engineered with advanced internal geometry to minimize pressure ripples, making it one of the quietest triple pump solutions for indoor factory use.
100% Interchangeability: Direct replacement for Tokimec SQP211-19-5-2-86CCC2-18. Matches all original SAE mounting dimensions, shaft specifications, and port positions.
Modular Cartridge Design: Each of the three pump sections uses a replaceable cartridge kit, allowing for fast field maintenance and reducing long-term repair costs.
High-Pressure Reliability: Precision-machined components allow for stable operation under continuous industrial cycles.
Technical Specifications
| Parameter | Specification (Front / Middle / Rear) |
| Model Code | SQP211-19-5-2-86CCC2-18 |
| Compatibility | 100% Tokimec SQP Triple Series |
| Front Displacement (19) | 19 USgpm (at 1200 rpm) |
| Middle Displacement (5) | 5 USgpm (at 1200 rpm) |
| Rear Displacement (2) | 2 USgpm (at 1200 rpm) |
| Max. Pressure | 175 bar (2500 PSI) |
| Mounting Standard | SAE 2-Bolt Flange |
| Shaft Type (86) | Heavy-Duty Straight Keyed |
| Outlet Positions (CCC) | All outlets 90 degrees CCW from inlet |
Why Source From YHDE Hydraulics?
Direct Factory Manufacturer: 9+ years of specialized experience in high-quality compatible hydraulic pump manufacturing.
100% Performance Tested: Every SQP211 triple pump undergoes a rigorous full-load pressure and flow test on our professional testing stands before shipment.
Global Compatibility: Our products are engineered to provide seamless replacements for Tokimec, Vickers, Denison, and Yuken.
Fast Global Shipping: We maintain a deep stock of SQP series cartridge kits and components for all three sections to ensure rapid delivery.
