SQP32-45-14-86CC Double Vane Pump | Tokimec Tokyo Keiki Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
Heavy-duty SQP32-45-14-86CC double hydraulic vane pump (45 + 14 GPM). 100% interchangeable with Tokimec Tokyo Keiki. Factory-direct from YHDE with 9+ years of manufacturing expertise. Low noise, 100% performance tested. Get a technical quote today!
SQP32-45-14-86CC Double Vane Pump | Tokimec Tokyo Keiki Replacement | YHDE
Product Overview

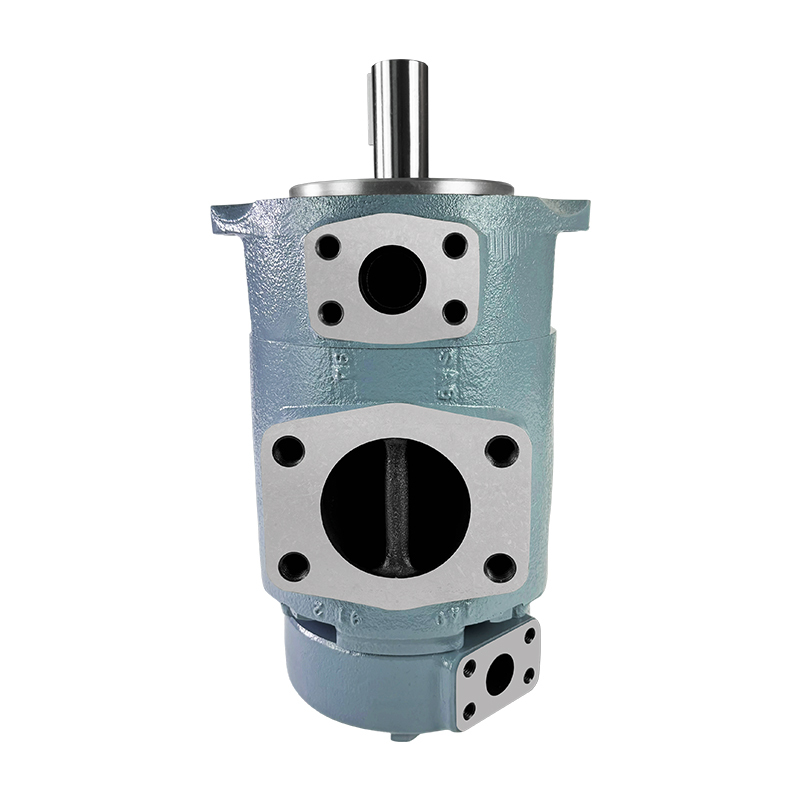

The SQP32 series is a high-performance double fixed displacement vane pump designed for demanding industrial applications requiring high flow density and ultra-low noise. The SQP32-45-14-86CC combines a high-volume Frame 3 section with a versatile Frame 2 section, providing two independent flow sources from a single drive shaft to optimize machine cycle times.
As a specialized manufacturer with over 9 years of expertise, YHDE (Yihe Hydraulic) ensures that every SQP32 unit is 100% interchangeable with Tokimec (Tokyo Keiki) standards. Our pumps serve as direct "drop-in" replacements for large injection molding machines, die-casting equipment, and heavy-duty hydraulic power units.
Core Features & Benefits
Super Quiet Performance: Engineered with advanced pulse-reduction technology to maintain a quiet workshop environment even under high-load conditions.
High Pressure Stability: Capable of handling continuous industrial pressures while maintaining high volumetric efficiency.
100% Interchangeability: Matches original SAE C mounting dimensions, shaft specifications (86), and porting configurations (CC).
Durable Service Life: Precision-machined internal components and hardened cam rings ensure long-lasting reliability in 24/7 production environments.
Modular Cartridge Design: Internal cartridge kits can be replaced quickly for rapid on-site maintenance, significantly reducing machine downtime.
Technical Parameters
| Parameter | Specification (Front P1 / Rear P2) |
| Model Code | SQP32-45-14-86CC |
| Compatibility | 100% Tokimec Tokyo Keiki SQP Series |
| Front Displacement (45) | 45 USgpm (at 1200 rpm) / 142.0 ml/r |
| Rear Displacement (14) | 14 USgpm (at 1200 rpm) / 45.0 ml/r |
| Max. Operating Pressure | 175 bar (2500 PSI) |
| Max. Speed | 1800 rpm |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type (86) | Straight Keyed (Standard) |
| Port Configuration (CC) | Outlets at 90 degrees CCW from Inlet |
Why Source From YHDE?
Factory Direct Source: Located in the hydraulic manufacturing hub of Foshan, we provide factory-direct pricing without middleman markups.
9+ Years of Expertise: We specialize in the manufacturing and testing of high-quality compatible vane pumps for global industrial brands.
100% Performance Tested: Every SQP32 pump undergoes a rigorous full-load pressure and flow test in our professional center before shipment.
2026 Vision: We are committed to increasing the accessibility of high-quality hydraulic components worldwide, aiming for 65% sales in vane pump solutions.
