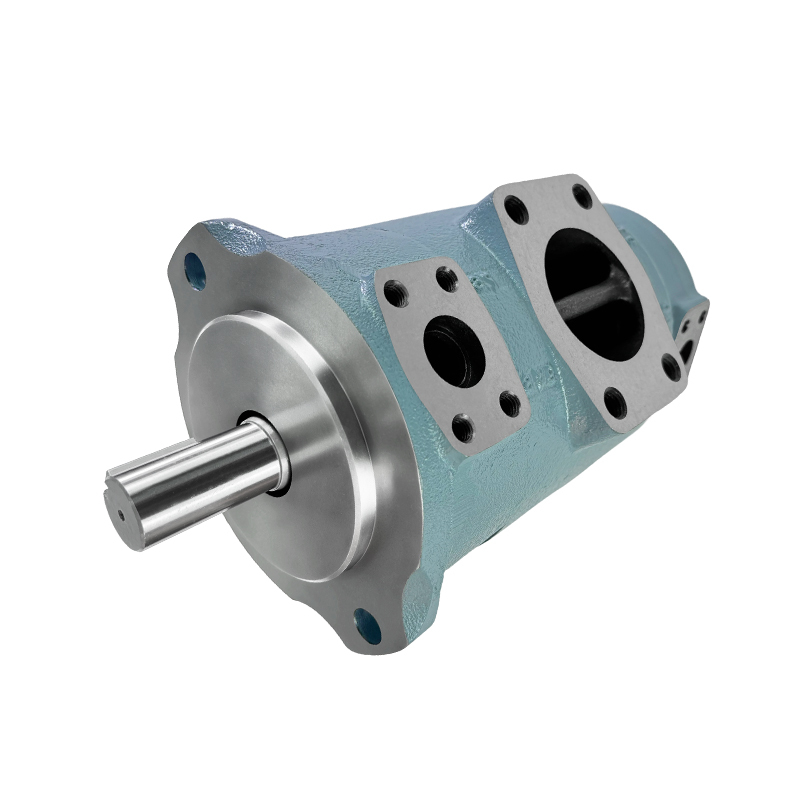

SQP32-45-15-86CC Double Vane Pump | Tokimec Tokyo Keiki Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance SQP32-45-15-86CC double hydraulic vane pump (45 + 15 GPM). 100% interchangeable with Tokimec Tokyo Keiki. Factory-direct from YHDE with 9+ years of manufacturing expertise. Ultra-low noise, 100% performance tested. Get a technical quote today!
SQP32-45-15-86CC Double Vane Pump | Tokimec Tokyo Keiki Replacement | YHDE
Product Overview
The SQP32 series is a high-flow double fixed displacement vane pump engineered for heavy-duty industrial applications that demand massive power combined with ultra-low noise. The SQP32-45-15-86CC model utilizes a Frame 3 front section (45 USgpm) and a Frame 2 rear section (15 USgpm), providing robust dual-circuit control from a single drive shaft.
As a specialized manufacturer with over 9 years of expertise, YHDE (Yihe Hydraulic) ensures that the SQP32 series is 100% interchangeable with Tokimec (Tokyo Keiki) standards. Our pumps are the preferred choice for heavy-duty plastic injection machines, metal scrap balers, and large-scale hydraulic power units.
Core Features & Benefits
Super Quiet Performance: Utilizes Tokimec's signature pulse-reduction technology to ensure a quiet industrial workspace even at high pressure.
High Flow Density: Delivers high GPM output from a compact dual-pump housing, saving installation space and reducing motor requirements.
100% Interchangeability: Direct "drop-in" replacement for SQP32-45-15-86CC. All SAE C mounting dimensions and shaft specs are original-matched.
Industrial Grade Durability: Built with high-strength cast iron and precision-finished internal cartridges for extended service life under continuous load.
Easy Maintenance: The cartridge-style design allows for rapid replacement of internal kits, minimizing downtime for your customers.
Technical Parameters
| Parameter | Specification (Front P1 / Rear P2) |
| Model Code | SQP32-45-15-86CC |
| Compatibility | 100% Tokimec Tokyo Keiki SQP Series |
| Front Displacement (45) | 45 USgpm (at 1200 rpm) / 142.0 ml/r |
| Rear Displacement (15) | 15 USgpm (at 1200 rpm) / 47.0 ml/r |
| Max. Operating Pressure | 175 bar (2500 PSI) |
| Max. Operating Speed | 1800 rpm |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type (86) | Straight Keyed (SAE C Standard) |
| Port Configuration (CC) | Discharge position CCW relative to Inlet |
Why Choose YHDE (Yihe Hydraulic)?
9+ Years Manufacturing Heritage: We focus on the high-end replacement market with deep technical knowledge.
100% Performance Testing: Every SQP32 unit is subjected to a full-load pressure and flow test in our professional center before shipment.
Foshan Factory Direct: Sourcing directly from our Foshan facility ensures you get competitive pricing and direct technical support.
Global Stock Support: We maintain a deep inventory of SQP3 and SQP2 cartridge kits for fast global shipping.
