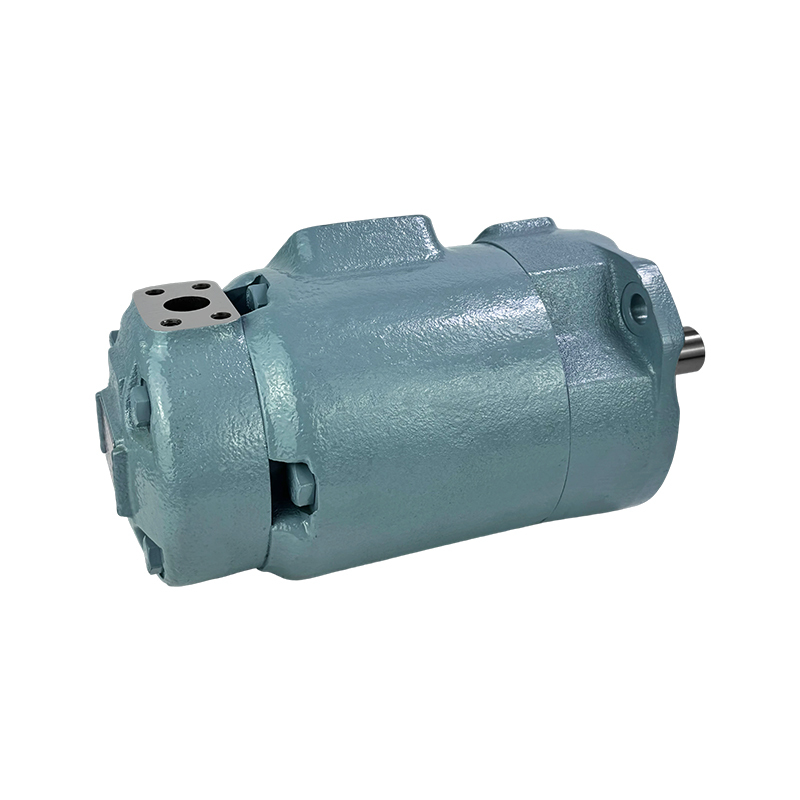

SQP32-45-19-86CC Double Vane Pump | Tokimec Tokyo Keiki Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-flow SQP32-45-19-86CC double hydraulic vane pump (45 + 19 GPM). 100% interchangeable with Tokimec Tokyo Keiki. Factory-direct from YHDE with 9+ years of manufacturing expertise. Low noise, 100% performance tested. Get a technical quote today!
SQP32-45-19-86CC Double Vane Pump | Tokimec Tokyo Keiki Replacement | YHDE
Product Overview
The SQP32 series is a high-performance double fixed displacement vane pump engineered for large-scale industrial systems requiring high flow rates and ultra-low noise operation. The SQP32-45-19-86CC model combines a Frame 3 high-capacity section with a Frame 2 versatile section, allowing for efficient dual-circuit power from a single drive shaft.
As a specialized manufacturer with over 9 years of expertise based in Foshan, YHDE (Yihe Hydraulic) ensures that every SQP32 unit is 100% interchangeable with Tokimec (Tokyo Keiki) specifications. Our pumps are perfect "drop-in" replacements for large plastic injection molding machines, die-casting equipment, and heavy-duty hydraulic power units (HPUs).
Core Features & Benefits
Super Quiet Operation: Designed with Tokimec's signature pulse-reduction technology to maintain a quiet indoor factory environment.
Space-Saving Double Design: Powers two independent hydraulic circuits using only one motor and one mounting flange.
100% Interchangeability: Matches all original SAE C mounting dimensions, shaft specifications, and porting configurations.
Rugged Reliability: Built with high-strength cast iron and precision-machined internal components to handle continuous industrial duty cycles.
Modular Cartridge Kits: Internal cartridge-style design allows for quick on-site maintenance, significantly reducing downtime.
Technical Parameters
| Parameter | Specification (Front P1 / Rear P2) |
| Model Code | SQP32-45-19-86CC |
| Compatibility | 100% Tokimec Tokyo Keiki SQP Series |
| Front Displacement (45) | 45 USgpm (at 1200 rpm) / 142.0 ml/r |
| Rear Displacement (19) | 19 USgpm (at 1200 rpm) / 60.0 ml/r |
| Max. Operating Pressure | 175 bar (2500 PSI) |
| Max. Speed | 1800 rpm |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type (86) | Straight Keyed (Standard) |
| Port Configuration (CC) | Double 90 Degree CCW Discharge |
Why Choose YHDE Hydraulics?
Factory Direct Source: Located in the hydraulic hub of Foshan, we provide OEM-level quality without middleman markups.
9+ Years of Specialized Manufacturing: We focus on the precision and durability of every vane pump component.
100% Performance Tested: Every SQP32 unit is subjected to a rigorous full-load pressure and flow test in our professional testing center before shipping.
2026 Vision: We are dedicated to supporting global industrial efficiency by providing high-quality, cost-effective hydraulic solutions.
