SQP32-45-25-86CC Double Vane Pump | Tokimec Tokyo Keiki Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance SQP32-45-25-86CC double hydraulic vane pump (45 + 25 GPM). 100% interchangeable with Tokimec Tokyo Keiki. Factory-direct from YHDE with 9+ years of manufacturing expertise. Features ultra-low noise and 100% performance testing. Get a quote!
SQP32-45-25-86CC Double Vane Pump | Tokimec Tokyo Keiki Replacement | YHDE
Product Overview

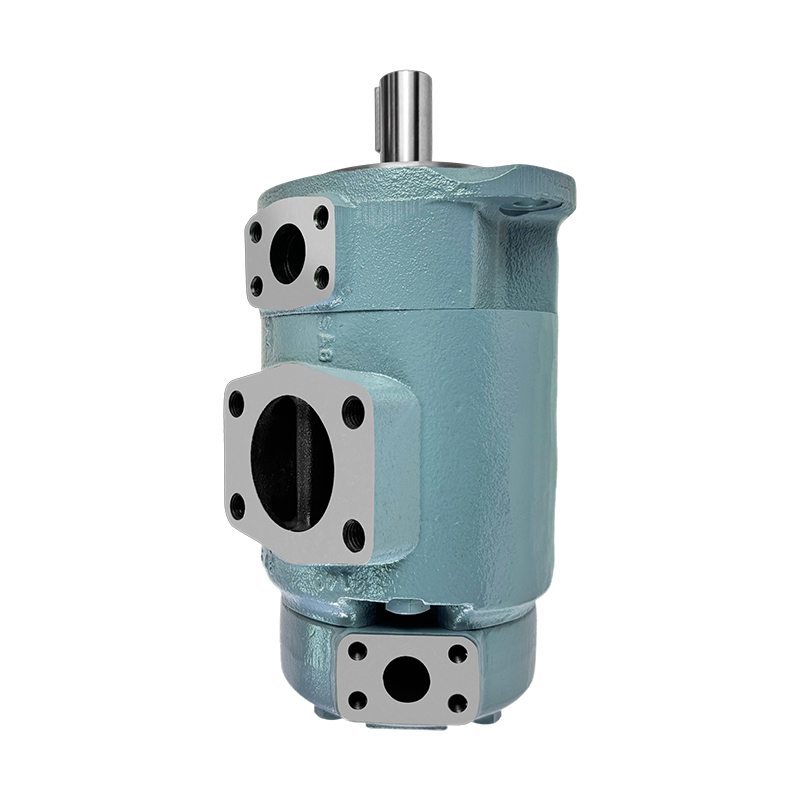

The SQP32 series is a high-displacement double fixed displacement vane pump engineered for heavy-duty industrial applications requiring high flow and exceptionally low noise levels. The SQP32-45-25-86CC model combines a powerful Frame 3 front section (45 GPM) with a versatile Frame 2 rear section (25 GPM), providing two high-capacity independent flow sources from a single drive shaft.
As a specialized manufacturer with over 9 years of expertise, YHDE (Yihe Hydraulic) produces the SQP series to be 100% interchangeable with Tokimec (Tokyo Keiki) standards. This pump serves as a perfect "drop-in" replacement for large injection molding machines, hydraulic presses, and industrial power units.
Core Features & Benefits
Super Quiet Operation: Designed with Tokimec’s signature pulse-reduction technology, making it ideal for indoor factory environments where noise control is critical.
High Volumetric Efficiency: Precision CNC machining ensures minimum internal leakage and maximum power delivery for large hydraulic circuits.
100% Mounting Interchangeability: Matches all original SAE C 2-bolt mounting, shaft specifications (86), and porting configurations (CC).
Rugged Construction: Built with high-strength materials to withstand the continuous high-load cycles of heavy industrial machinery.
Field-Replaceable Cartridges: Both front and rear sections feature cartridge-style internal kits for rapid maintenance and minimal downtime.
Technical Parameters
| Parameter | Specification (Front P1 / Rear P2) |
| Model Code | SQP32-45-25-86CC |
| Compatibility | 100% Tokimec Tokyo Keiki SQP Series |
| Front Displacement (45) | 45 USgpm (at 1200 rpm) / 142.0 ml/r |
| Rear Displacement (25) | 25 USgpm (at 1200 rpm) / 79.0 ml/r |
| Max. Operating Pressure | 175 bar (2500 PSI) |
| Max. Rated Speed | 1800 rpm |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type (86) | Straight Keyed (Standard) |
| Outlet Position (CC) | 90 degrees CCW from Inlet |
Why Choose YHDE Hydraulics?
Factory Direct Source: Located in Foshan, we provide factory-direct pricing and technical support without middleman markups.
9+ Years of Specialized Expertise: We focus exclusively on engineering high-quality compatible vane pumps for global brands.
100% Performance Tested: Every SQP32 unit undergoes a rigorous full-load pressure and flow test on our professional testing stands before shipment.
2026 Vision: Our commitment to 2026 is to provide the highest value hydraulic solutions to our global partners.
