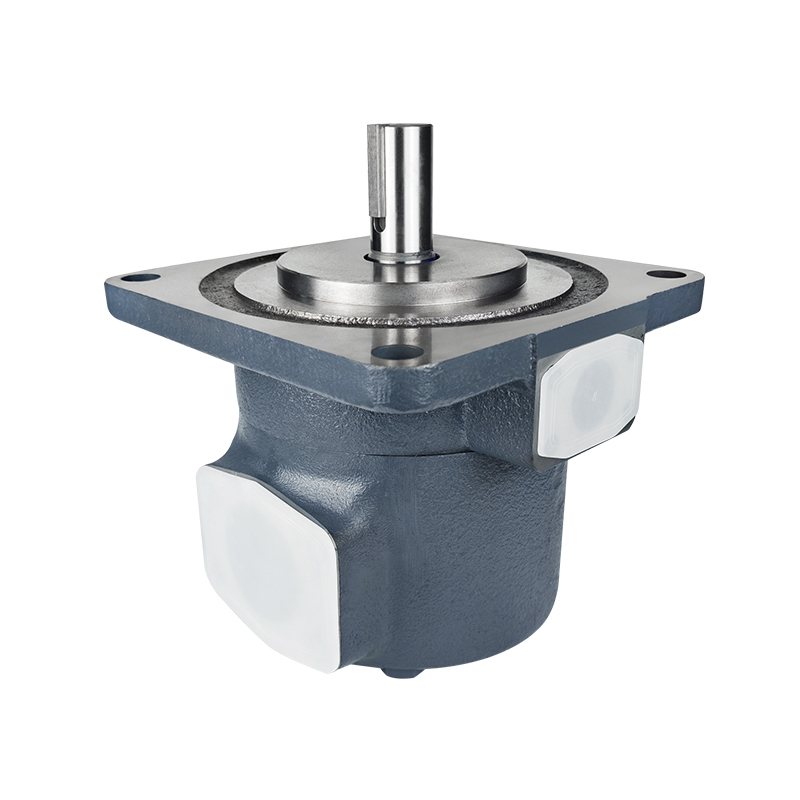

SQP4-30-1-A Single Vane Pump | 100% Tokimec Compatible | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance SQP4-30-1-A single hydraulic vane pump (30 USgpm). 100% interchangeable with Tokimec Tokyo Keiki. Factory-direct from YHDE with 9+ years of manufacturing expertise. Features ultra-low noise and 100% performance testing. Get a technical quote!
SQP4-30-1-A Single Vane Pump | 100% Tokimec Compatible | YHDE
Product Overview
The SQP4 Series is a heavy-duty fixed displacement vane pump specifically designed by Tokimec (Tokyo Keiki) for applications where low noise and high reliability are critical. The SQP4-30-1-A model provides a high flow rate, making it ideal for large plastic injection molding machines, presses, and heavy industrial power units.
As a specialized manufacturer with over 9 years of expertise, YHDE produces the SQP4 series to be 100% interchangeable with Tokimec standards. Our pumps serve as perfect "drop-in" replacements, matching all original performance curves and mounting dimensions.
Core Features & Benefits
Ultra-Low Noise Technology: The SQP series is engineered with specialized internal geometry to minimize pressure ripples and vibration, ensuring a quiet working environment.
High Volumetric Efficiency: Precision-machined components ensure maximum flow output with minimal internal leakage, optimizing energy consumption.
Rugged Construction: Built with high-strength cast iron and hardened steel components to withstand continuous heavy-duty industrial cycles.
100% Interchangeability: Direct replacement for Tokimec SQP4-30-1-A. No modifications to existing piping or SAE mounting are required.
Easy Maintenance: The modular cartridge design allows for fast on-site replacement of internal parts, significantly reducing machine downtime.
Technical Specifications
| Parameter | Specification |
| Model Code | SQP4-30-1-A |
| Compatibility | 100% Tokimec SQP Series |
| Displacement Code (30) | 30 USgpm (at 1200 rpm) |
| Geometric Displacement | 95.2 ml/r |
| Max. Pressure | 140 bar (2000 PSI) |
| Max. Speed | 1800 rpm |
| Mounting Standard | SAE C 2-Bolt Flange |
| Port Configuration (1-A) | Standard Inlet/Outlet Orientation |
Why Source From YHDE Hydraulics?
Direct Factory Manufacturer: Benefit from factory-direct pricing and technical support from our Foshan-based facility.
9+ Years of Specialized Expertise: We focus exclusively on high-quality compatible vane pumps and components for global brands.
100% Performance Tested: Every SQP4 unit undergoes a rigorous full-load pressure and flow test on our professional testing stands before shipment.
2026 Quality Mission: We are committed to becoming a leading global provider of high-performance hydraulic solutions with a focus on durability and precision.
