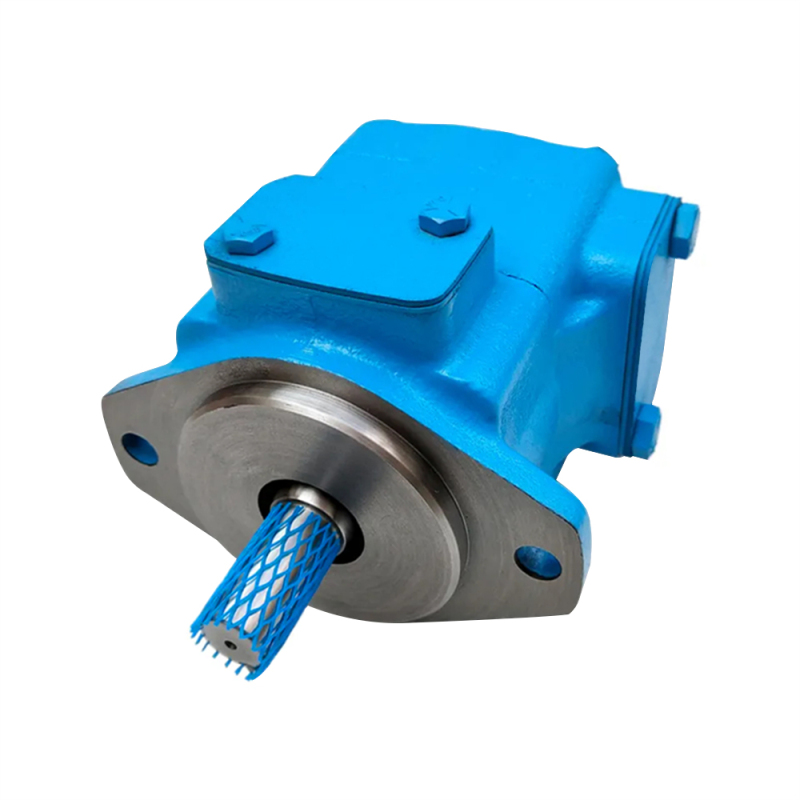

Vickers 25V-15A-1D-22R Single Vane Pump | 100% Compatible Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance 25V-15A-1D-22R single hydraulic vane pump, 100% interchangeable with Vickers Eaton. Features intra-vane technology for low noise and long life. Factory-direct from YHDE with 9+ years of expertise. Fast global shipping. Get a quote!
Vickers 25V-15A-1D-22R Single Vane Pump | 100% Compatible Replacement | YHDE
Product Overview
The 25V Series is a high-performance fixed displacement intra-vane pump specifically designed for industrial applications. The 25V-15A-1D-22R model is renowned for its quiet operation and exceptional volumetric efficiency, making it the industry standard for hydraulic power units and manufacturing machinery.
As a specialized manufacturer with over 9 years of expertise, YHDE produces the 25V-15A-1D-22R to be 100% interchangeable with Vickers (Eaton) specifications. Our pumps serve as a reliable "drop-in" solution for injection molding machines, presses, and industrial automation systems.
Core Features & Benefits
Advanced Intra-Vane Design: Reduces vane tip pressure against the cam ring, significantly extending the service life and allowing for higher operating pressures.
Low Noise Operation: Precision-machined internal components ensure quiet running, meeting strict environmental and factory noise standards.
100% Interchangeability: Direct replacement for Vickers 25V-15A-1D-22R. Matches all standard SAE mounting dimensions, port configurations, and performance curves.
Exceptional Volumetric Efficiency: High volumetric efficiency reduces internal leakage, minimizing heat generation and energy consumption.
Easy Maintenance: The cartridge-style internal design allows for rapid on-site repair or replacement of wearing parts without removing the pump from the system.
Technical Specifications
| Parameter | Specification |
| Model Code | 25V-15A-1D-22R |
| Compatibility | 100% Vickers Eaton V Series |
| Displacement (15) | 15 USgpm (at 1200 rpm, 0 psi) |
| Max. Operating Pressure | 175 bar (2500 PSI) |
| Mounting Standard | SAE B 2-Bolt Flange |
| Shaft Type | Straight Keyed (1) |
| Port Orientation | 90 deg CCW from inlet (D) |
| Rotation | Right Hand / Clockwise (R) |
Detailed Model Code Analysis
25V: Series (Industrial Single Vane Pump).
15: Displacement (15 USgpm).
A: Inlet port (4-bolt flange).
1: Shaft type (Straight keyed).
D: Outlet port position (90 degrees CCW from inlet).
22: Design sequence.
R: Rotation (Right hand/Clockwise).
Why Source From YHDE Hydraulics?
Direct Factory Manufacturer: We are the source factory in Foshan, offering 9+ years of expertise and competitive pricing without middleman markups.
100% Performance Tested: Every 25V unit undergoes a rigorous full-load pressure and flow test on our professional testing stands before shipment.
Specialized Compatibility: We are experts in manufacturing high-quality compatible replacements for Vickers, Denison, Yuken, and Tokimec.
Global Logistics Support: Large inventory of 25V series components and cartridge kits ensures rapid response to your maintenance needs.
