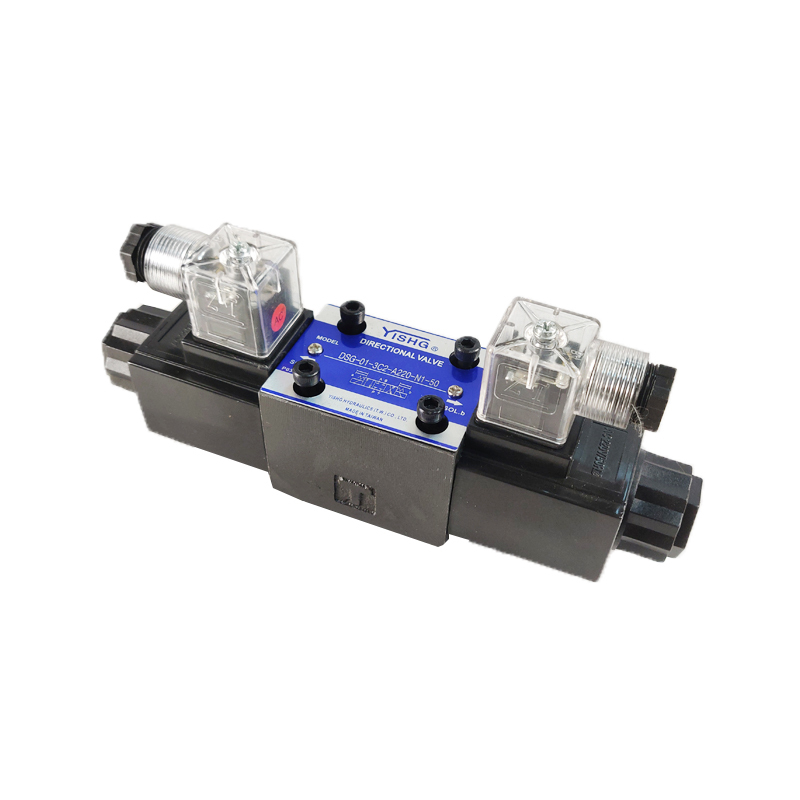

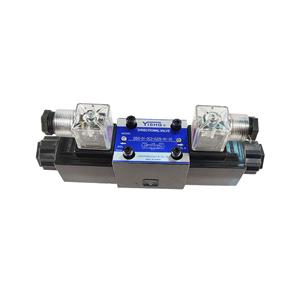

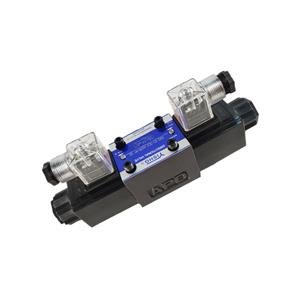

Yuken Type DSG-01-3C2-A220-N1-50 Hydraulic Valves Solenoid Directional Valve
Brand: Yishg
Product origin: China
Delivery time: 10-30day
Supply capacity: 300 Pcs/Day
Model: DSG-01-3C2-A220-N1-50
Max Displacement: 300 L/Min
Max Working Pressure: 35 Mpa
Shaft Speed Range: 100 Cycles/Min
Control Type: Direct Current Coil
Product Type: Hydraulic Valves
Material: Cast iron
Need a Perfect 100% Drop-In Replacement for Yuken DSG-01 Solenoid Valve?
When a malfunctioned directional control valve halts your automation assembly lines, machine tools, or plastic processing units, ordering original Tier-1 components means enduring 8-12 weeks of global supply chain lag while bleeding daily operational revenue. Our high-performance Yuken-type DSG-01-3C2-A220-N1-50 Solenoid Operated Valve is an absolute mechanical and functional clone. Engineered by a precision hydraulic factory with 9+ years of manufacturing lineage, it offers original system responsiveness and low leakage borders at up to 70% budget reduction.
100% Form & Fit Alignment: Standard 1/8" (Size 01 / ISO 03 / Cetop 3) subplate mounting configuration. Swaps directly into your current valve manifold block with zero piping adjustments.
Direct Factory Stock: Complete DSG-01 series assemblies and spare wet-armature solenoid coils are deeply stocked and dispatched globally within 24-48 hours.
Technical Parameters & Operational Limits
Cross-verify your operational limits with our engineering limits below to secure an exact operational matchup on your white fluid layout background.
| Parameter Attribute | Engineering Specifications Value | Application System Benefit |
|---|---|---|
| Valve Size / Interface | 1/8" (NG6 / Cetop 3 / ISO 4401-03) | Standardized compact footprints for manifold space-saving. |
| Max Operating Pressure | 31.5 MPa (315 bar / 4570 PSI) | High pressure endurance perfect for heavy-duty cycle clamping. |
| Max Flow Rate Capability | Up to 63 L/min (16.6 GPM) | Ensures rapid tool extension speeds and fast reaction loops. |
| Solenoid Coil Voltage | AC 220V (50/60 Hz Source) | Direct mains power compatibility without intermediate step-down transformers. |
Model Nomenclature Decoding: DSG-01-3C2-A220-N1-50
| Code Segment | Technical Meaning Breakdown | Hydraulic Circuit Function Match |
|---|---|---|
| DSG-01 | Solenoid Operated Directional Valve, 1/8" Nominal Size | Establishes subplate mounting standard interface. |
| 3C2 | 3-Position, Spring Centered, Spool Type 2 (Closed Center) | All ports (P, T, A, B) are blocked in neutral. Cylinder locks position securely. |
| A220 | AC 220V Solenoid Coils | Operates directly on common factory electrical grid frequencies. |
| N1 | Plug-in Conduit Connection with Signal Indicator Light | Allows shopfloor technicians to visually spot active switching at a glance. |
| 50 | Design Sequence Code Number | Ensures unified interchangeability with past and future 50-series designs. |
Precision Tooling: Engineered for Rapid Switching and Zero Power Lag
Directional control valves act as the executive routing nerve center of a hydraulic system. Low-grade generic valves suffer from poorly ground spool sealing edges, leading to catastrophic internal block-to-block leakage, thermal buildup, and shifting inaccuracies. We combat these faults with rigorous factory controls:
Micron-Level Spool Honing: Internal cast iron housings and alloy steel spools are match-honed on precision grinding machines to strict single-micron clearances. This preserves tight hydrodynamic boundary seals, slashing internal parasitic bypass leakage.
Premium Wet-Armature Coil Design: Our solenoids utilize a wet-armature configuration immersed directly in hydraulic fluid, providing continuous core lubrication, enhanced thermal cooling dissipation, and noise-damping impacts.
100% Dynamic Function Bench Testing: Every single DSG-01 valve undergoes dynamic cyclic switching tests at full maximum pressure (31.5 MPa) before crating. We ensure zero response lag and complete spring-centering return consistency.
Pro Engineering Insight: Explaining the Mechanic "AC Coil Burnout Loop"
When should you overhaul or execute a swap? If your central cylinder drifts from target centerlines, presents sporadic switching delays, or your electrical control panel keeps blowing fuses on the A220 line, a mechanical or electrical failure has initiated.
However, if invisible microscopic metal shaving contaminants or varnish residues jam the spool, **the armature cannot close its loop**. The high inrush current continues to surge unchecked, overheating the internal copper windings and completely burning out your brand-new coil within a few continuous minutes.
Mandatory Engineering Safeguard: Always scrub your subplate mounting block faces, check oil cleanliness indexes, and flush lines prior to tightening mounting bolts to eliminate microscopic jamming conditions.
Frequently Asked Questions: DSG-01 Replacement Valves
1. Is your DSG-01-3C2 valve fully interchangeable with the original Japanese Yuken brand? +
2. Why does the AC 220V coil burn out, and how does your design lower this risk? +
3. What is the typical factory delivery timeline for bulk distribution orders? +
Request Direct Wholesale Factory Pricing
Need to cross-reference multiple spool configurations (3C2, 3C4, 2D2) or customized coil voltages? Skip third-party markups and branding taxes today. Our engineers are ready to support your plant.
Get An Instant Factory Price Quote
