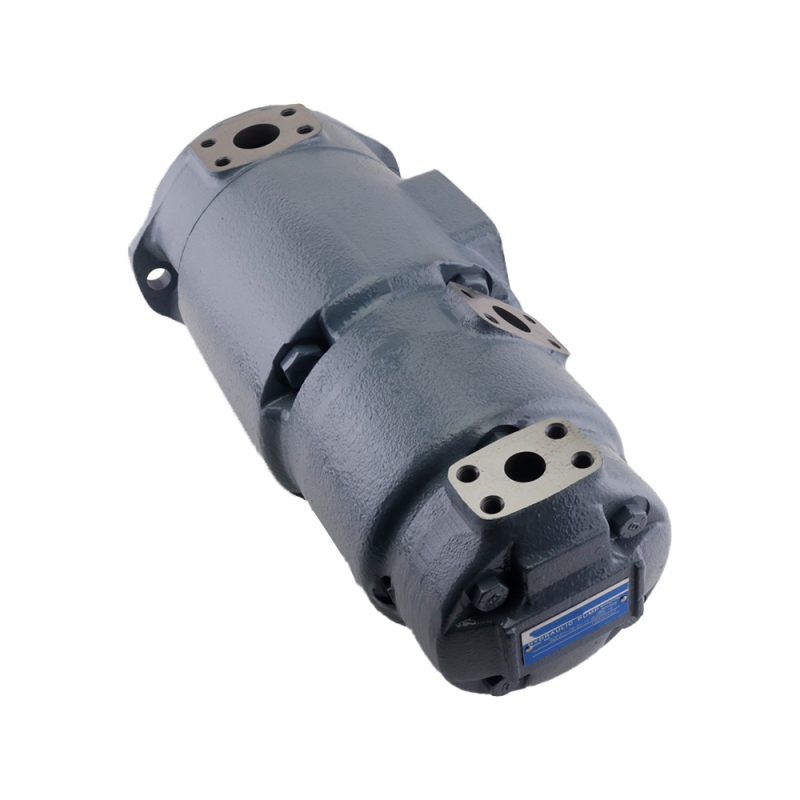

SQP321-21-10-2-86CCC2-18 Triple Vane Pump | Vickers Tokimec Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
Premium SQP321-21-10-2 triple hydraulic vane pump with Viton seals. 100% interchangeable with Vickers and Tokimec Tokyo Keiki. Direct from YHDE Foshan factory with 9+ years of manufacturing expertise. 100% performance tested for high-temperature reliability. Request a quote!
SQP321-21-10-2-86CCC2-18 Triple Vane Pump | Vickers Tokimec Replacement | YHDE
Product Overview: The Ultimate Solution for Complex Multi-Circuit Systems
Machine downtime in complex multi-circuit hydraulic systems is often caused by the failure of a specialized triple pump. The SQP321-21-10-2-86CCC2-18 is designed to provide three independent flow sources from a single drive shaft, saving space and reducing system complexity.
At YHDE, we understand that reliability is your top priority. Leveraging over 9 years of specialized manufacturing history in Foshan, we have engineered this triple pump to be a 100% drop-in replacement for original Vickers and Tokimec units. Whether you are operating in high-temperature environments or using specialized fluids, our Viton-sealed (Class 2) configuration ensures leak-free, long-term performance.
Why Choose YHDE's SQP321 Series?
Ultra-Low Noise (Super Quiet): Specifically designed for indoor factory environments like plastic injection molding and precision machine tools.
High-Temperature Reliability: Equipped with premium Viton seals as standard for this model, ensuring stability up to 120 degrees Celsius.
100% Interchangeability: Perfectly matches all SAE C 2-bolt mounting, shaft specifications (86), and porting (CCC) configurations. No piping modifications required.
Verified Quality Control: Every SQP321 unit undergoes a rigorous full-load pressure and flow test on our professional testing stands in Foshan before shipment.
Technical Parameters
| Parameter | Specification (P1 / P2 / P3) |
| Model Code | SQP321-21-10-2-86CCC2-18 |
| Compatibility | 100% Vickers / Tokimec SQP Series |
| P1 Displacement (21) | 67.5 ml/r (21 USgpm at 1200 rpm) |
| P2 Displacement (10) | 33.0 ml/r (10 USgpm at 1200 rpm) |
| P3 Displacement (2) | 7.5 ml/r (2 USgpm at 1200 rpm) |
| Max. Operating Pressure | 175 bar (2500 PSI) |
| Max. Rated Speed | 1800 rpm |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type (86) | Straight Keyed (Standard) |
| Seal Type (2) | Viton (High Temperature / Fire Resistant) |
| Port Position (CCC) | 90 deg CCW from Inlet for all ports |
The YHDE Strategic Advantage
Sourcing directly from our Foshan factory allows you to eliminate middleman markups while gaining 1-on-1 technical support from industrial experts. As we move toward our 2026 goal of providing the world's most reliable hydraulic components, we invite you to experience the quality that over 9 years of manufacturing expertise provides.
Technical Authority: To better understand how we test our pumps, visit our
Vane Pump Performance Parameters Guide .Complete Repair Support: We also provide individual
SQP Series Cartridge Kits for rapid on-site maintenance.
