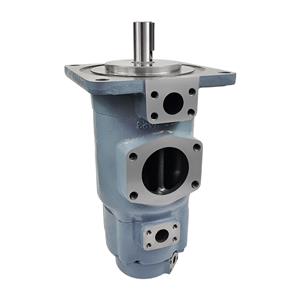

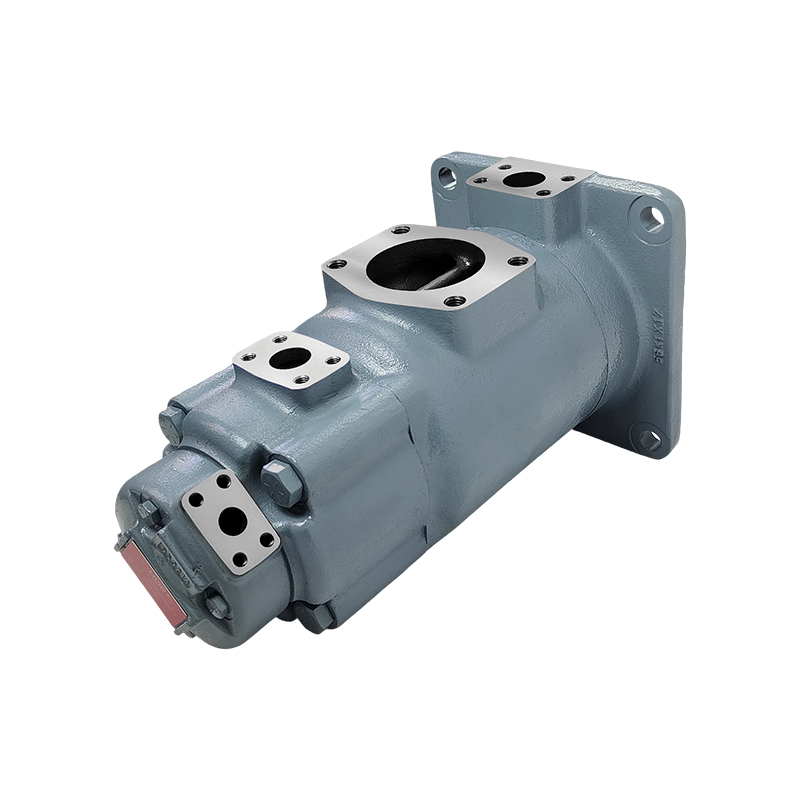

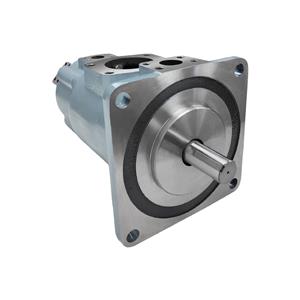

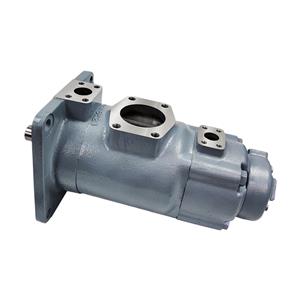

SQP431-30-21-2-86CCC-18 Triple Vane Pump | Tokimec Vickers Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance SQP431-30-21-2 triple vane pump. 100% interchangeable with Tokimec and Vickers. Low noise design with 175 bar pressure capacity. Factory-direct from YHDE Foshan with 9+ years of expertise. 100% load tested. Get a quote!
SQP431-30-21-2-86CCC-18 Triple Vane Pump | Tokimec Vickers Replacement | YHDE
Product Overview: Powering Complex Multi-Circuit Systems
Are you managing a complex hydraulic system that requires three independent flow sources from a single drive shaft? The SQP431-30-21-2-86CCC-18 is the definitive choice for high-efficiency industrial machinery. Whether it's for large-scale injection molding, die-casting, or heavy-duty automation, this triple pump provides the stability and silence your workshop demands.
At YHDE, we have spent over 9 years specializing in SQP series manufacturing in our Foshan facility. Our SQP431 series is engineered as a 100% "drop-in" replacement for original Tokimec or Vickers units, matching every mounting dimension and performance curve to eliminate costly machine re-piping.
Why Choose YHDE's SQP431 Series?
Super Quiet Technology: Designed with multi-vane internal geometry to minimize pressure ripples and acoustic output, creating a safer and more efficient working environment.
Modular Cartridge Design: All three pump sections utilize an internal cartridge system. If a single section wears out, you can replace the SQP cartridge kit instead of the whole pump, saving you thousands in maintenance costs.
100% Performance Tested: Technical certainty is our priority. Every SQP431 unit undergoes a rigorous full-load test on our professional stands to ensure zero cross-circuit interference and original-level volumetric efficiency.
Rugged Durability: We use hardened cam rings and vanes to withstand continuous duty at 175 bar, ensuring your 2026 production goals are never interrupted by pump failure.
Technical Parameters
| Parameter | Specification (P1 / P2 / P3) |
| Model Code | SQP431-30-21-2-86CCC-18 |
| Interchangeability | 100% Tokimec / Vickers SQP Series |
| P1 Displacement (30) | 95.0 ml/r (30 USgpm @ 1200rpm) |
| P2 Displacement (21) | 67.0 ml/r (21 USgpm @ 1200rpm) |
| P3 Displacement (2) | 7.0 ml/r (2 USgpm @ 1200rpm) |
| Maximum Pressure | 175 bar (2500 PSI) |
| Maximum Speed | 1800 rpm |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type (86) | Straight Keyed Shaft |
| Rotation | Right Hand (Clockwise) |
The YHDE Advantage for 2026
As we pursue our goal of providing world-class compatible hydraulic solutions, we offer you direct-factory pricing and rapid global logistics. Sourcing from our Foshan factory allows you to bypass intermediaries and gain direct technical support for your multi-circuit hydraulic configurations.
Selection Support: Need help calculating flow? Read our
Technical Guide to Vane Pump Performance Parameters .
