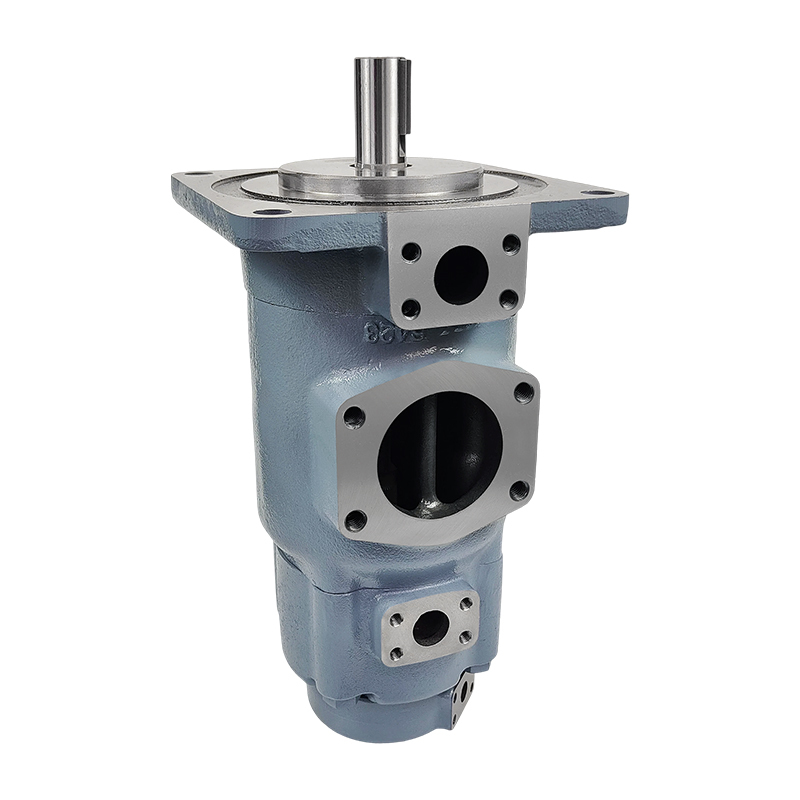

SQP431-35-17-2-86CCC-18 Triple Vane Pump | Tokimec Vickers Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance SQP431-35-17-2 triple vane pump. 100% interchangeable with Tokimec and Vickers. Factory-direct from YHDE Foshan with 9+ years of manufacturing expertise. Every unit is 100% load tested for three independent circuits. Request a technical quote!
SQP431-35-17-2-86CCC-18 Triple Vane Pump | Tokimec Vickers Replacement | YHDE
Product Overview: Precision Multi-Circuit Power
When your hydraulic system requires three independent flow sources from a single drive shaft, the SQP431-35-17-2-86CCC-18 is the definitive professional choice. This triple pump series is engineered to reduce system complexity by replacing three separate pumps with one compact unit, significantly saving space and reducing motor costs.
At YHDE, we leverage over 9 years of manufacturing expertise in our Foshan facility to provide 100% "drop-in" replacements. Whether you are repairing an injection molding machine or an industrial press, our SQP431 units match original Tokimec performance curves exactly, ensuring zero system downtime during installation.
Why Choose YHDE's SQP Triple Series?
Super Quiet Technology: Designed with the original intra-vane structure to minimize pressure ripples, ensuring an ultra-low noise environment even at full load.
100% Interchangeability: Directly replaces Tokimec SQP431 and Vickers SQP431 series. All dimensions, ports, and shaft specifications are identical to OEM standards.
Verified Reliability: As part of our 2026 vision to lead in hydraulic reliability, every triple pump undergoes a rigorous multi-stage performance test on our professional stands. We test each of the three sections independently to verify flow and pressure.
Modular Maintenance: All three sections feature cartridge-style designs. If one section wears out, you can replace the specific cartridge kit instead of the entire pump, saving significant maintenance costs.
Technical Parameters
| Parameter | Specification (P1 / P2 / P3) |
| Model Code | SQP431-35-17-2-86CCC-18 |
| Interchangeability | 100% Tokimec / Vickers SQP Series |
| P1 Displacement (35) | 110 ml/r (35 USgpm at 1200 rpm) |
| P2 Displacement (17) | 55 ml/r (17 USgpm at 1200 rpm) |
| P3 Displacement (2) | 7 ml/r (2 USgpm at 1200 rpm) |
| Max. Pressure | 175 bar (2500 PSI) |
| Max. Speed | 1800 rpm |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type (86) | Straight Keyed Shaft |
| Rotation | Right Hand (Clockwise) |
Expert Risk Reminder (Life-Saving Details)
To ensure the longevity of your new SQP431 triple pump, our engineering team highlights these critical "Life-Saving" steps:
Oil Cleanliness: Ensure your hydraulic oil is filtered to at least NAS Class 9. Contaminants are the #1 cause of vane scarring.
Prime the Pump: Before the initial start-up, fill the pump housing with clean hydraulic oil through the inlet port to prevent "dry start" damage.
Check Alignment: For triple pumps, shaft alignment is critical. Ensure the coupling alignment is within 0.1mm to prevent bearing failure.
