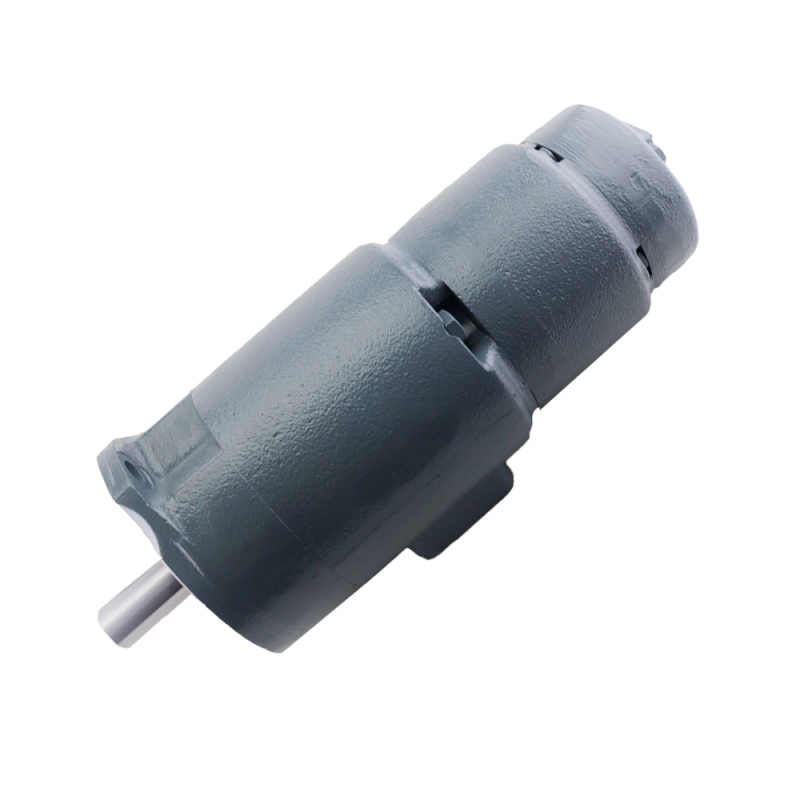

SQP321-35-10-2-86CCC2-18 Triple Vane Pump | Vickers Tokimec Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance SQP321-35-10-2 triple hydraulic vane pump (35+10+2 GPM). 100% interchangeable with Vickers Tokimec Tokyo Keiki. Direct from YHDE Foshan factory with 9+ years of expertise. 100% performance tested to ensure zero downtime. Get a factory-direct quote!
SQP321-35-10-2-86CCC2-18 Triple Vane Pump | Vickers Tokimec Replacement | YHDE
Product Overview: The Ultimate Power Source for Multi-Circuit Systems
Eliminate system complexity and reduce space with the SQP321-35-10-2-86CCC2-18 Triple Vane Pump. When a single or double pump can't meet your machine's diverse flow requirements, this triple section pump provides three independent hydraulic sources from a single drive shaft.
At YHDE, we understand that triple pumps are critical "heart" components. Leveraging over 9 years of specialized manufacturing experience in our Foshan facility, we have engineered this model as a 100% drop-in replacement for the original Vickers and Tokimec series. No modifications to your existing piping or SAE C mounting are required.
Why Choose YHDE’s Triple Vane Pumps?
Precision Synchronization: All three internal cartridges (Frame 3, 2, and 1) are precision-matched to ensure balanced power delivery across all hydraulic circuits.
9+ Years of Expertise: We specialize in the high-pressure "Super Quiet" (SQP) technology, matching original noise profiles and efficiency ratings.
100% Performance Tested: Triple pumps have more internal seals and moving parts. To guarantee reliability, every unit undergoes a full-load pressure and flow test on all three sections before shipping.
Foshan Factory Direct: Skip the middleman markups and get direct technical support and competitive pricing for your 2026 procurement goals.
Technical Parameters
| Parameter | Specification (P1 / P2 / P3) |
| Model Code | SQP321-35-10-2-86CCC2-18 |
| Interchangeability | 100% Vickers / Tokimec SQP Series |
| P1 Flow (Front) | 35 GPM / 110.0 ml/r |
| P2 Flow (Middle) | 10 GPM / 33.0 ml/r |
| P3 Flow (Rear) | 2 GPM / 7.0 ml/r |
| Max. Pressure | 175 bar (2500 PSI) |
| Max. Speed | 1800 rpm |
| Mounting Standard | SAE C 2-Bolt Flange |
| Shaft Type (86) | Straight Keyed Shaft |
| Outlet Position | CCC (Standard 90-degree orientations) |
Technical Maintenance & Expert Advice
Pro-Tip for Triple Pumps: Because the SQP321 drives three circuits, we strongly recommend checking the intake suction filtration. A single point of cavitation can affect all three sections.
Need more technical depth? Check our blog on
How to Calculate Efficiency for Multi-Section Vane Pumps .Looking for specific parts? We also stock complete
SQP series cartridge kits for rapid on-site repair.
