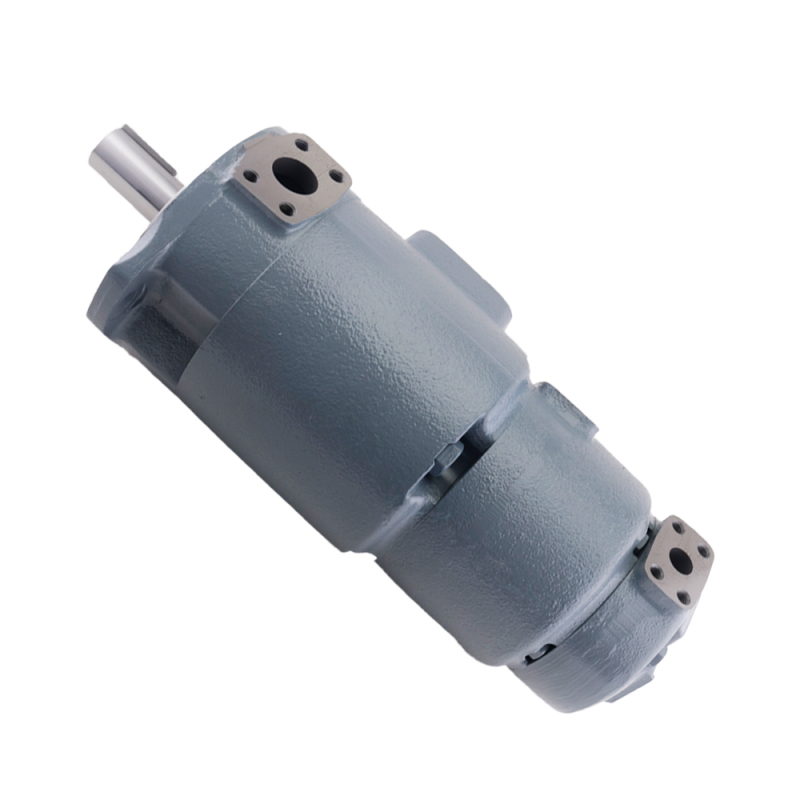

SQP321-17-10-2-86CCC2-18 Triple Vane Pump | Tokimec Vickers Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-flow SQP321-17-10-2 triple hydraulic vane pump. 100% interchangeable with Tokimec (Tokyo Keiki) and Vickers style systems. Direct from YHDE Foshan factory with 9+ years of manufacturing expertise. 100% load tested for maximum reliability. Get a quote now!
SQP321-17-10-2-86CCC2-18 Triple Vane Pump | Tokimec Vickers Replacement | YHDE
Product Overview: The Ultimate Solution for Multi-Circuit Systems
When your complex hydraulic system—whether in a large injection molding machine or a heavy-duty press—requires multiple flow sources, the SQP321-17-10-2-86CCC2-18 triple vane pump is the heart of the operation. At YHDE, we solve the industry-wide challenge of long lead times and high OEM costs by providing high-precision, factory-direct replacements that deliver original performance.
With over 9 years of specialized manufacturing history in our Foshan facility, we have perfected the synchronization and efficiency required for triple-pump configurations. This unit is a 100% drop-in replacement, ensuring your machinery is back to work without any piping modifications or system adjustments.
Core Features & Benefits
Super Quiet Technology: Matches the original "SQP" (Super Quiet Pump) standards, maintaining a low-noise factory environment even under high-load triple-circuit operation.
100% Performance Tested: Every SQP321 unit undergoes a rigorous full-load pressure and flow test on our professional testing stands to ensure all three sections perform at peak efficiency.
Precision Manufacturing: Utilizing advanced CNC processing, we ensure that every Frame 3, Frame 2, and Frame 1 section meets the tightest tolerances for zero-leakage performance.
Durable Construction: Built with high-strength cast iron and hardened steel internal parts to withstand continuous heavy-duty industrial cycles.
Technical Parameters
| Parameter Section | P1 (Front Section) | P2 (Middle Section) | P3 (Rear Section) |
| Pump Frame Size | SQP3 (Frame 3) | SQP2 (Frame 2) | SQP1 (Frame 1) |
| Delivery at 1200 rpm | 17 USgpm | 10 USgpm | 2 USgpm |
| Displacement (ml/r) | 55.0 ml/r | 33.0 ml/r | 7.0 ml/r |
| Max. Pressure | 175 bar (2500 PSI) | 175 bar (2500 PSI) | 175 bar (2500 PSI) |
| Max. Rated Speed | 1800 rpm | 1800 rpm | 1800 rpm |
| Mounting Standard | SAE C 2-Bolt Flange | ||
| Shaft Type (86) | Straight Keyed | ||
| Porting (CCC) | 90 deg CCW from Inlet |
The YHDE Strategic Advantage
Sourcing directly from our Foshan factory allows you to achieve your procurement goals by bypassing middleman markups while receiving 1-on-1 technical support from our engineering team. As we strive for our 2026 goal of providing the world's most reliable hydraulic solutions, we invite you to experience the quality that 9 years of expertise delivers.
Optimize Your System: Confused about how triple pump parameters affect your machine? Read our
Technical Guide to Vane Pump Performance Parameters .Maintenance Support: For rapid repairs, we also maintain a full stock of
SQP Series Cartridge Kits for all frame sizes.
