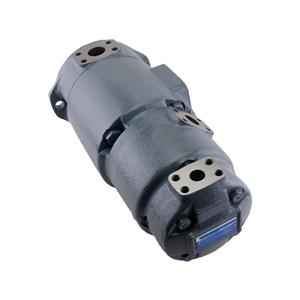

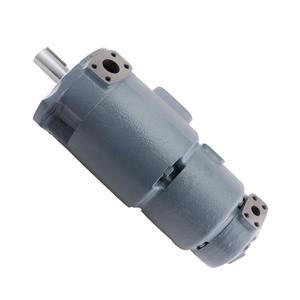

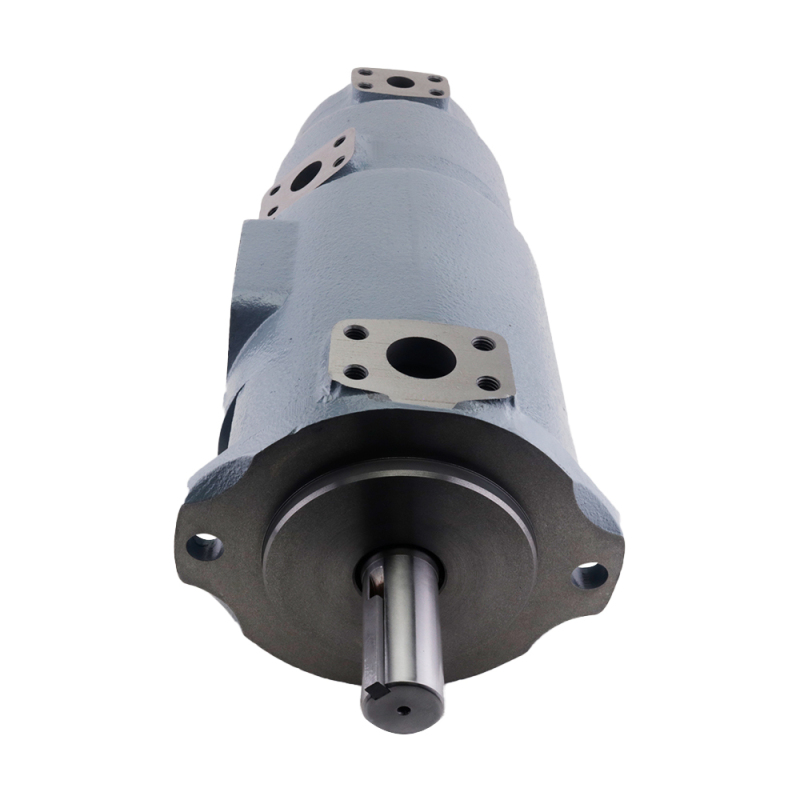

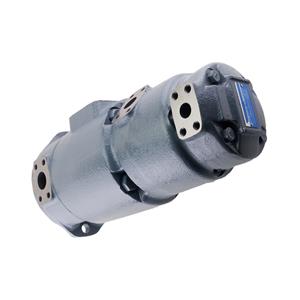

SQP321-32-10-2-86CCC2-18 Triple Vane Pump | 100% Vickers Replacement | YHDE
Brand: YIHE
Product origin: China
Delivery time: 5-30days
Supply capacity: 7pcs/5day
High-performance SQP321-32-10-2-86CCC2-18 triple hydraulic vane pump (32/10/2 GPM). 100% interchangeable with Vickers SQP series. Factory-direct from YHDE Foshan with 9+ years of manufacturing expertise. 100% performance tested. Request a technical quote!
SQP321-32-10-2-86CCC2-18 Triple Vane Pump | 100% Vickers Replacement | YHDE
Product Overview: Solving Complex Hydraulic Needs with One Pump
When your machinery requires three independent flow sources but space is at a premium, the SQP321-32-10-2-86CCC2-18 is the ultimate solution. This triple vane pump allows you to drive three separate hydraulic circuits from a single motor, significantly reducing system complexity and footprint.
At YHDE, we understand that downtime for a triple pump can stall your entire production line. With over 9 years of specialized manufacturing expertise in our Foshan facility, we provide 100% "drop-in" replacements that match the original Vickers performance and mounting dimensions exactly.
Core Features & Benefits
Ultra-Low Noise Operation: The SQP "Super Quiet" design ensures a peaceful workshop environment, even when all three sections are under full load.
100% Interchangeability: Directly replaces Vickers SQP321-32-10-2-86CCC2-18. No modifications to piping or SAE C mounting are required.
High Volumetric Efficiency: Precision-machined internal components minimize energy loss and heat generation.
Rigorous Reliability: Unlike standard alternatives, every YHDE triple pump undergoes a 100% full-load performance test on our professional test stands before shipping.
Easy Maintenance: All three sections (Frame 3, 2, and 1) utilize a modular cartridge-style design, allowing for rapid on-site repairs.
Technical Parameters
| Parameter | Front Section (P1) | Middle Section (P2) | Rear Section (P3) |
| Model Code | SQP3 | SQP2 | SQP1 |
| Flow Rate (at 1200 rpm) | 32 USgpm | 10 USgpm | 2 USgpm |
| Displacement (ml/r) | 102.0 ml/r | 33.0 ml/r | 7.0 ml/r |
| Max. Pressure | 175 bar | 175 bar | 175 bar |
| Max. Speed | 1800 rpm | 1800 rpm | 1800 rpm |
| Mounting Standard | SAE C 2-Bolt | (Single Drive) | (Single Drive) |
| Shaft Type (86) | Straight Keyed | Straight Keyed | Straight Keyed |
| Outlet Position (CCC) | 90 deg CCW | 90 deg CCW | 90 deg CCW |
The YHDE Strategic Advantage
By sourcing directly from our Foshan factory, you eliminate middleman markups and gain direct access to technical support from engineers who have spent 9+ years perfecting hydraulic vane technology. Our goal for 2026 is to help you reduce procurement costs while ensuring 100% mechanical reliability.
Technical Insights: Learn how to optimize your system with our
Complete Guide to Vane Pump Performance Parameters .Expert Maintenance: Understand the internal workings of your new pump in our blog:
What is a Vane Pump? Working, Types, and Applications .
